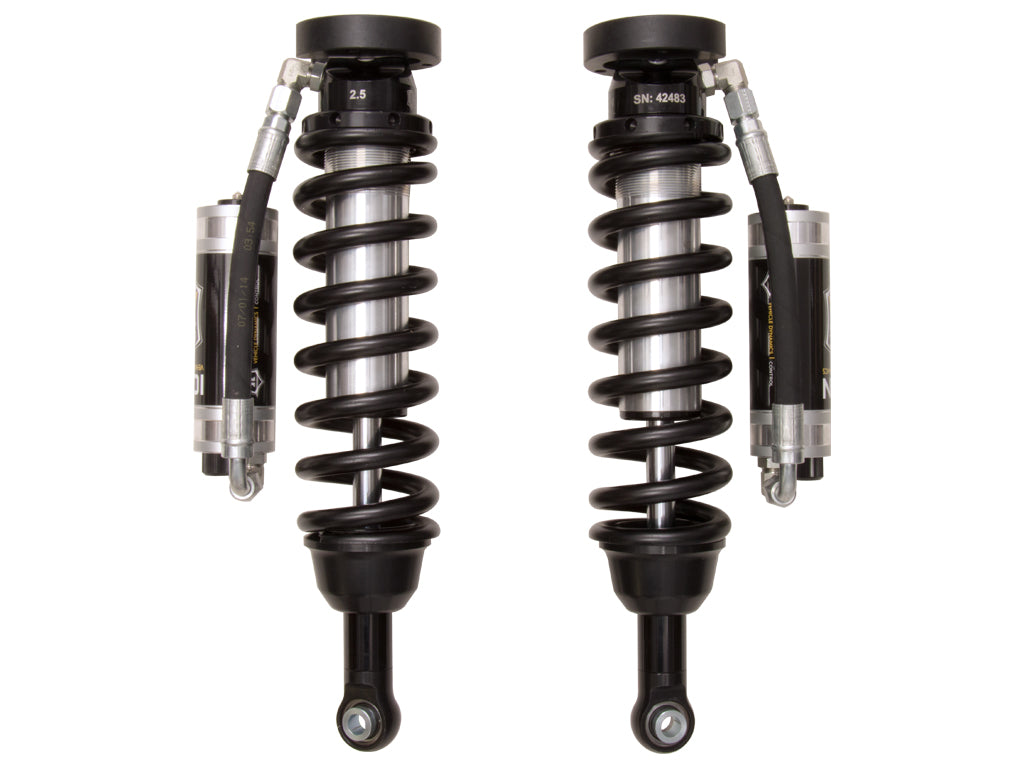

11-UP RANGER T6 1-3" 2.5 VS RR CDCV COILOVER KIT

Brand Name: ICON Vehicle Dynamics
GTIN: 00840103406855
306: Yes
2064: Steel
2329: Steel
3085: Single Tube
3096: Black
3390: Performance
7233: No
8703: No
9476: Yes
9783: No
10107: 650
10527: Yes
10528: Yes
10530: Passive
10535: 3
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Adjustable Damping: Yes
Body Diameter: 2,5
California Prop 65 Warning: Yes
Coil Over Springs Included: Yes
Compressed Length: 15.78
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Damping Adjustment Type: Manual
Damping Type: Oil
Extended Length: 20.93
Gas Charged: yes
Lower Mount Type: Eyelet
Material: Steel
Maximum Lift: 3
Minimum Lift: 1
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 32 x 11.00" Tall Tires (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: 17x8.5" w/ 5” Backspace
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Rate Type: Linear
Travel Length: 5.16
Upper Mount Type: MOUNT PLATE
Valving Type: Digressive
