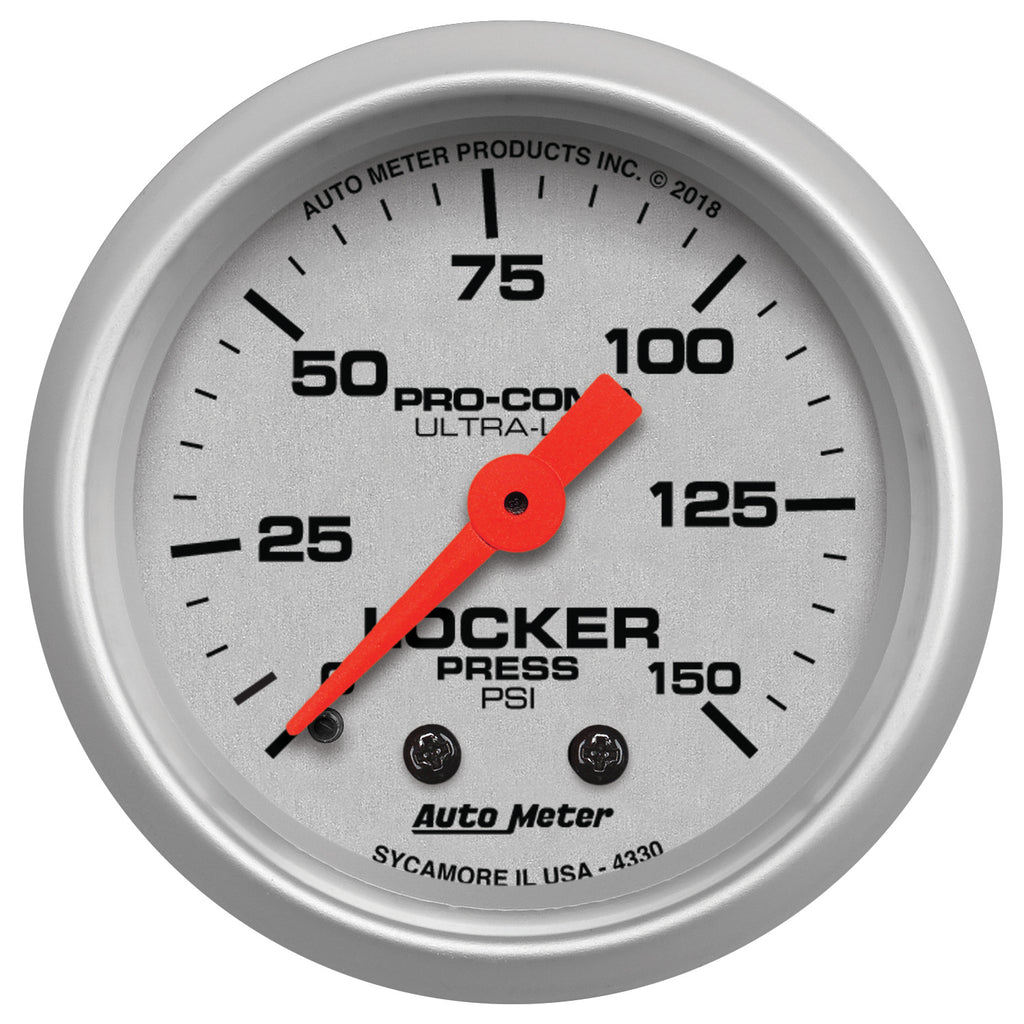

2-1/16" AIR LOCKER PRESSURE 0-150 PSI ULTRA-LITE
2-1/16" AIR LOCKER PRESSURE 0-150 PSI ULTRA-LITE
2-1/16" AIR LOCKER PRESSURE 0-150 PSI ULTRA-LITE
2-1/16" AIR LOCKER PRESSURE 0-150 PSI ULTRA-LITE

2-1/16" AIR LOCKER PRESSURE 0-150 PSI ULTRA-LITE

  • Sale
  • $95.50
AutoMeter's precision mechanical Air Locker gauge allows drivers to monitor onboard vehicle air used to actuate locking differentials from within the cabin. Easily troubleshoot supply settings and detect loss of system pressure that could prevent proper driveline engagement and provide early warning to potential driveline damage.
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
  • No electrical system required for gauge operation.
  • Mechanical movements provide accuracy and durability even in the harshest environments
  • Gauge kit includes 1/8” nylon line, 1/8” NPT compression fittings, 1/4” NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation

Attributes:

  • Brand Name: AutoMeter
  • GTIN: 00046074043307
  • Bezel Color: Brushed Aluminum
  • Bezel Style: Super Bezel
  • Cross Sell: 3224, 3227, 3228, 3229, 3226
  • Cup/Hole Size - Metric - MM: 52.4mm
  • Cup/Hole Size - Standard - IN: 2-1/16"
  • Dial Color: Silver
  • Gauge Type: Air Locker Pressure
  • Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing
  • Includes Bulb & Socket: 3220
  • Includes Light Covers: Red 3214 & Green 3215
  • Includes Mounting Hardware: 2230
  • Includes Tubing: 10 ft. nylon tubing
  • Lens Style: Flat, Clear
  • Lighting Color: White Incandescent
  • Lighting Type: Incandescent
  • Movement: Mechanical
  • Outer Bezel Diameter: 2-1/4"
  • Outer Bezel Diameter - Standard: 2-1/16"
  • Pointer Color: Fluorescent Red
  • Range: 0-150 PSI
  • Related Item: 2162, BEX-3000, EP-800, 0444, 0443, 0449XL
  • Series: ULTRA-LITE
  • Size - Metric - MM: 52.4mm
  • Size - Standard - IN: 2-1/16"
  • Upsell: 3224, 3227, 3228, 3229, 3226

Extended Information:

  • Country of Origin: US
  • Emissions : CARB Eligible

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 4.75 x 4.5 x 4.5 inches
  • Weight: 0.6 POUNDS
