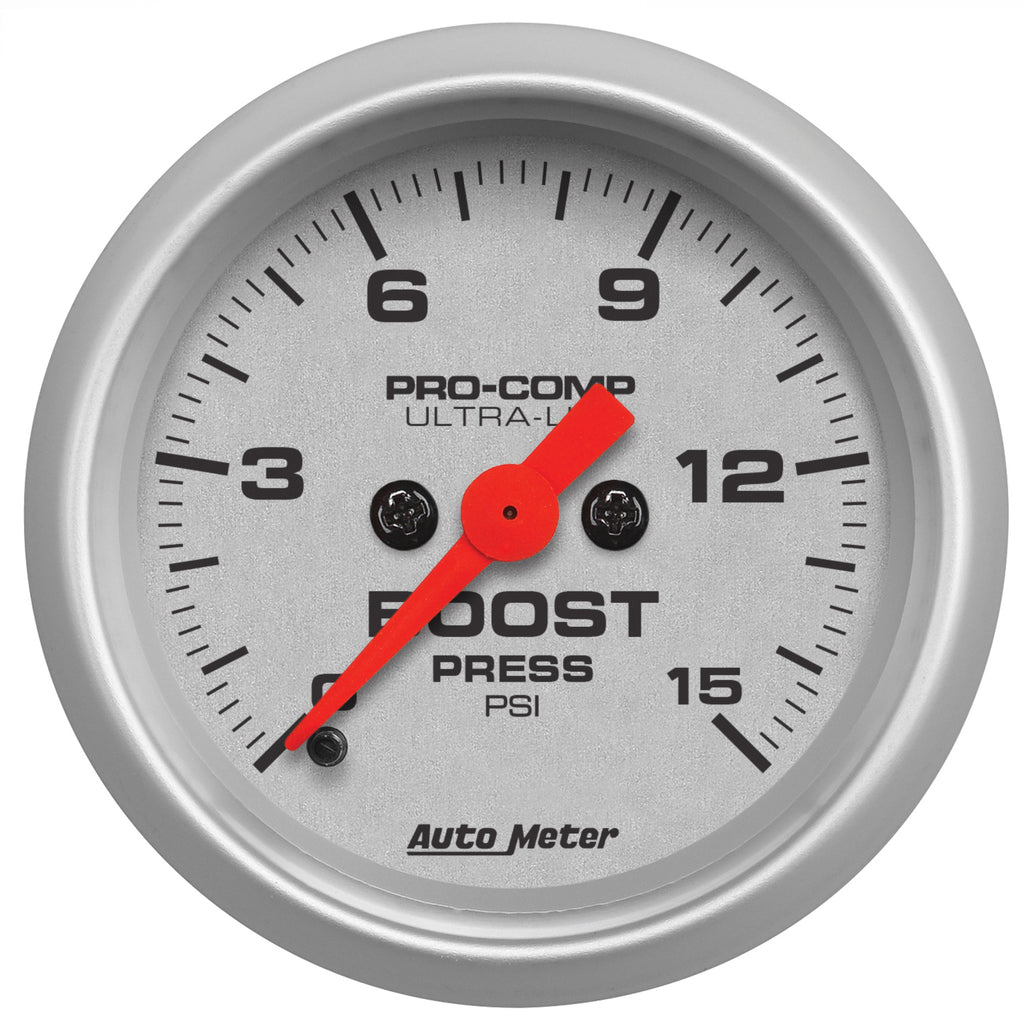

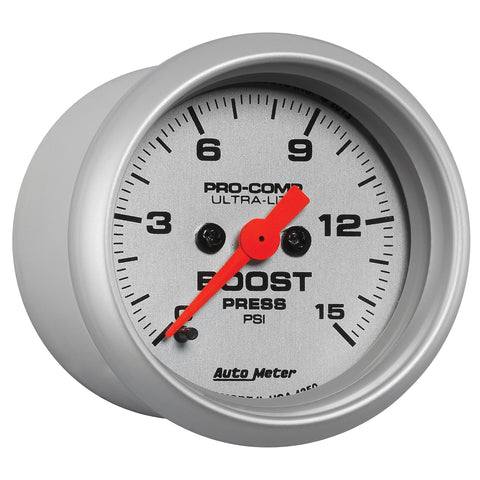

Forced induction applications require precise monitoring of the boost pressure being created by your turbo or supercharger to get the most power safely from your engine. AutoMeter’s Digital Stepper Motor Boost Gauge provides the most accurate reading available, unparalleled response time and smooth needle movement. Designed for diesel or extreme boost applications, these gauges include a highly advanced 1/8” NPT Pressure Transducer and wiring harness for ease of installation. Data Logging is also possible thanks to an analog .5 - 4.5v output.
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- Gauge kit includes 1/8” NPT stainless steel pressure transducer, 1/4” NPT adapter, wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074043505
- Bezel Color: Brushed Aluminum
- Bezel Style: Super Bezel
- Cross Sell: 3284, 3285, 3286, 3287, 3288, 2204
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Silver
- Gauge Type: Boost
- Includes Bulb & Socket: 3220
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: 2230
- Includes Sensor Unit: 2245
- Includes Wire Harness: 5227
- Lens Style: Flat, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Movement: Electric, Digital Stepper Motor
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: Fluorescent Red
- Range: 0-15 PSI
- Related Item: 2160, BEX-1500, EP-800, 0424XL, 0449XL, 0447LXL
- Series: ULTRA-LITE
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 3284, 3285, 3286, 3287, 3288, 2204
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.75 x 4.5 x 4.5 inches
- Weight: 1 POUNDS
