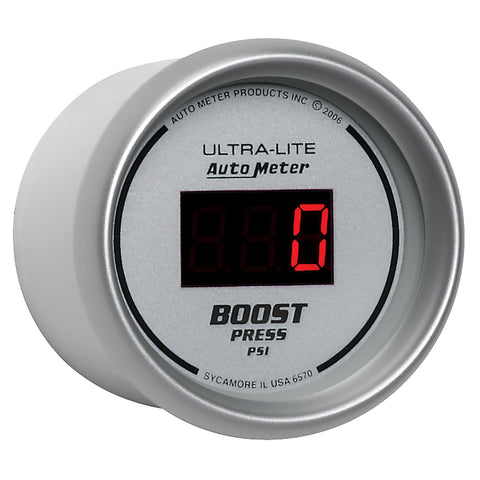

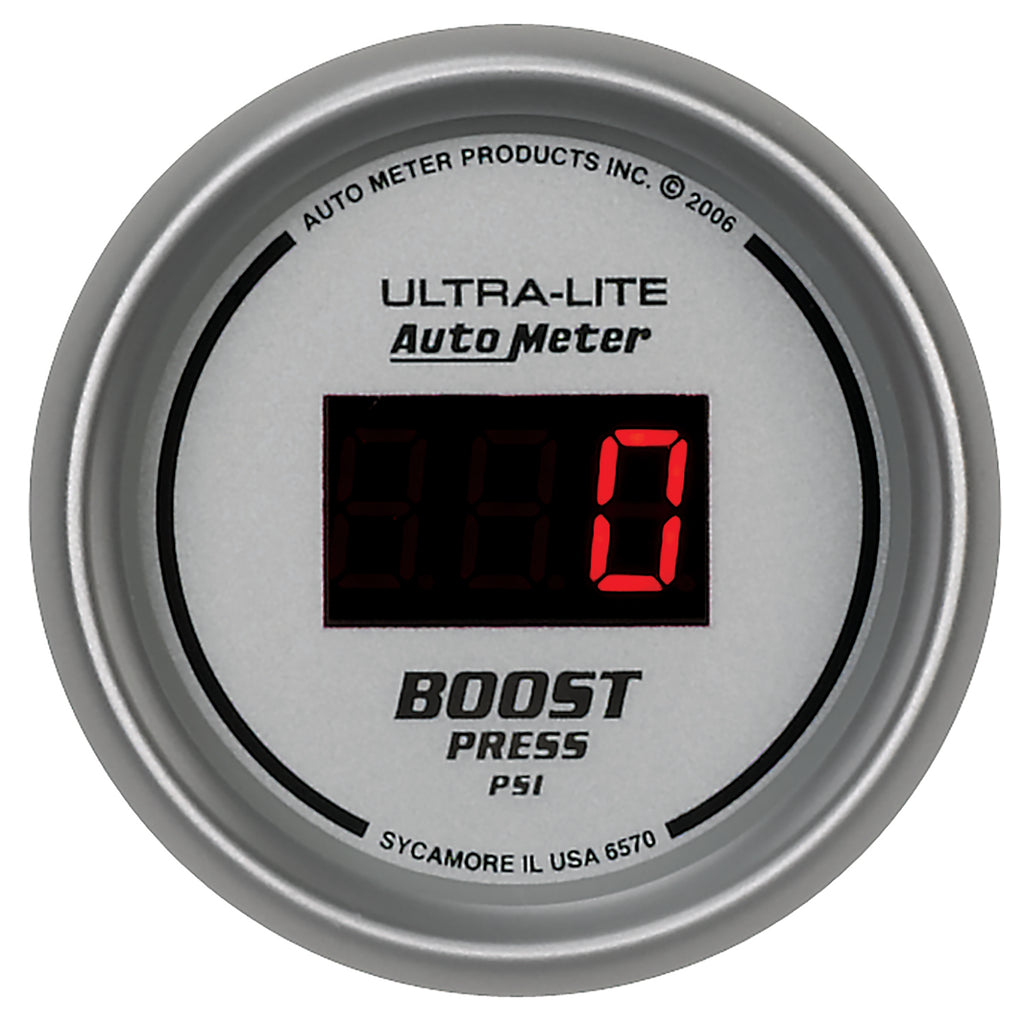

An ultra high precision digital gauge engineered for diesel applications but also perfect on higher boost gasoline engines. Using AutoMeter’s advanced 1/8” NPT solid state pressure transducer, this gauge provides the ultimate in accuracy for forced induction applications producing from 5-60 psi. A direct plug in wiring harness is included for ease of installation. Digital Boost/Vacuum gauges are also available for gasoline or lower boost applications.
- Features AutoMeter's E-Z View Digital LED Display System which maximizes readability and minimizes distracting high speed digit changes
- Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
- Gauge kit includes 1/8” NPT stainless steel pressure transducer, wiring harness, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074065705
- Bezel Color: Brushed Aluminum
- Bezel Style: Super Bezel
- Cross Sell: 6545, 6549
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Silver
- Gauge Type: Boost
- Includes Mounting Hardware: 2230
- Includes Sensor Unit: 2229
- Includes Wire Harness: 5227
- Lens Style: Flat, Clear
- Lighting Color: Red
- Lighting Type: Digital LED
- Movement: Digital
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Range: 5-60 PSI
- Related Item: 2160, BEX-3000, EP-800
- Series: ULTRA-LITE DIGITAL
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 6545, 6549
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.75 x 4.5 x 4.5 inches
- Weight: 0.85 POUNDS
PDF:
