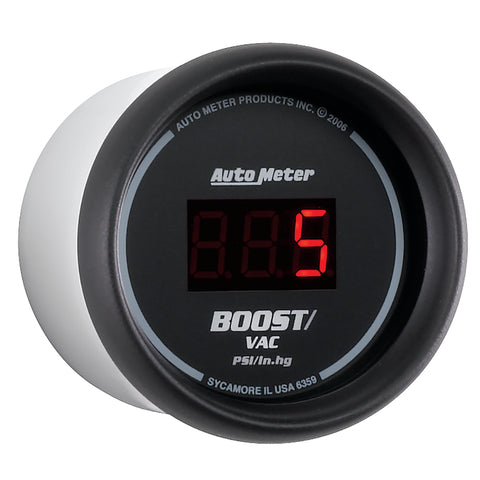

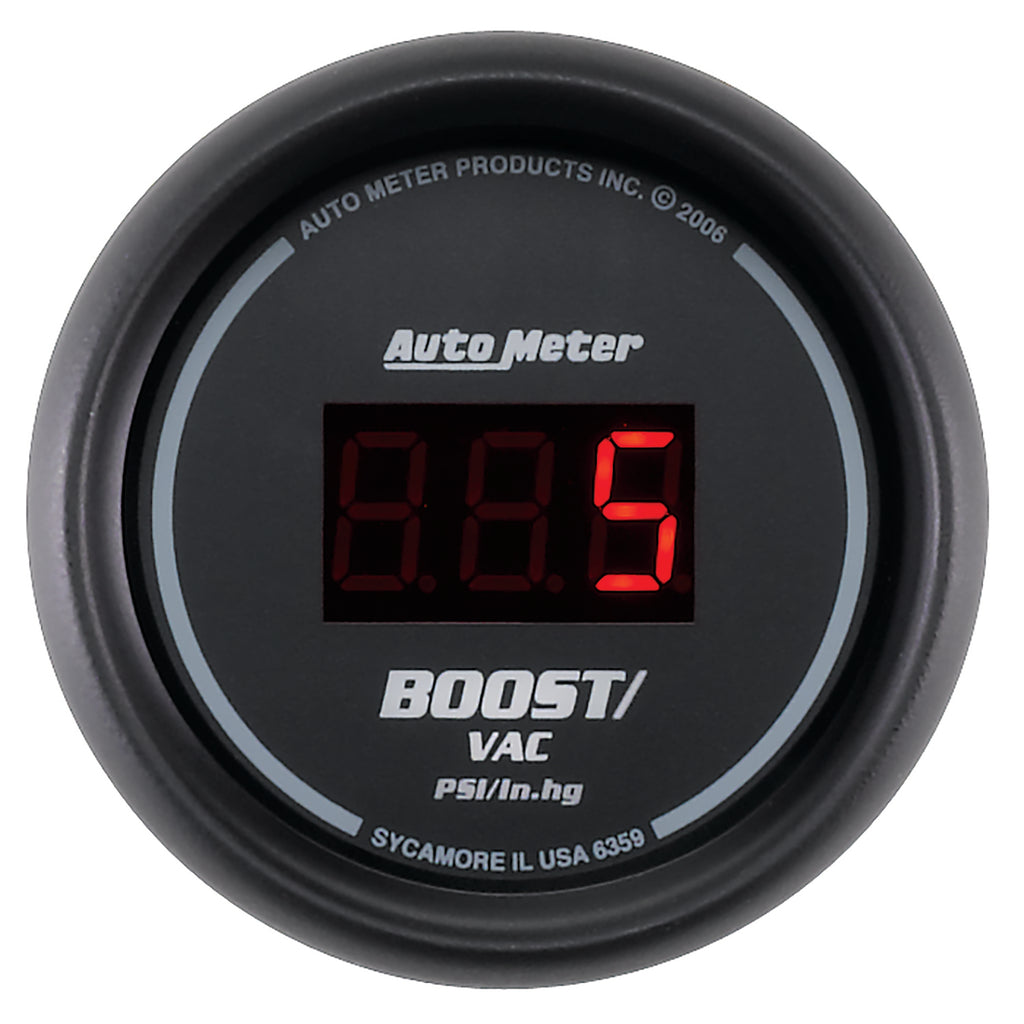

Incredibly high accuracy in both vacuum and boost, AutoMeter’s Digital Boost/Vac gauge is engineered to provide the best possible accuracy in applications ranging from 30 in/Hg to 30 psi. Our patented gauge technology allows the gauge to calibrate on every startup to compensate for altitude, barometric pressure and other atmospheric conditions, assuring you of the most precise reading possible. A direct plug in wiring harness is included for ease of installation. A high pressure digital boost only gauge is also available for diesel or high boost gasoline applications.
- Features AutoMeter's E-Z View Digital LED Display System which maximizes readability and minimizes distracting high speed digit changes
- Includes data acquisition grade solid-state MAP Sensor, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
- Gauge kit includes MAP Sensor, T-Fitting, nylon tubing, vacuum fittings, wiring harness, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074063596
- Bezel Color: Black
- Bezel Style: Super Bezel
- Cross Sell: 6363, 5978
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Black
- Gauge Type: Boost/Vacuum
- Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
- Includes Mounting Hardware: 2230
- Includes Sensor Unit: 2249
- Includes Tubing: 10 ft. nylon tubing
- Includes Wire Harness: 5229
- Lens Style: Flat, Clear
- Lighting Color: Red
- Lighting Type: Digital LED
- Movement: Digital
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Range: 30 IN HG/30 PSI
- Related Item: 2160, BEX-3000, EP-800
- Series: SPORT-COMP DIGITAL
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 6363, 5978
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 5.5 x 6 x 6.5 inches
- Weight: 1.18 POUNDS
