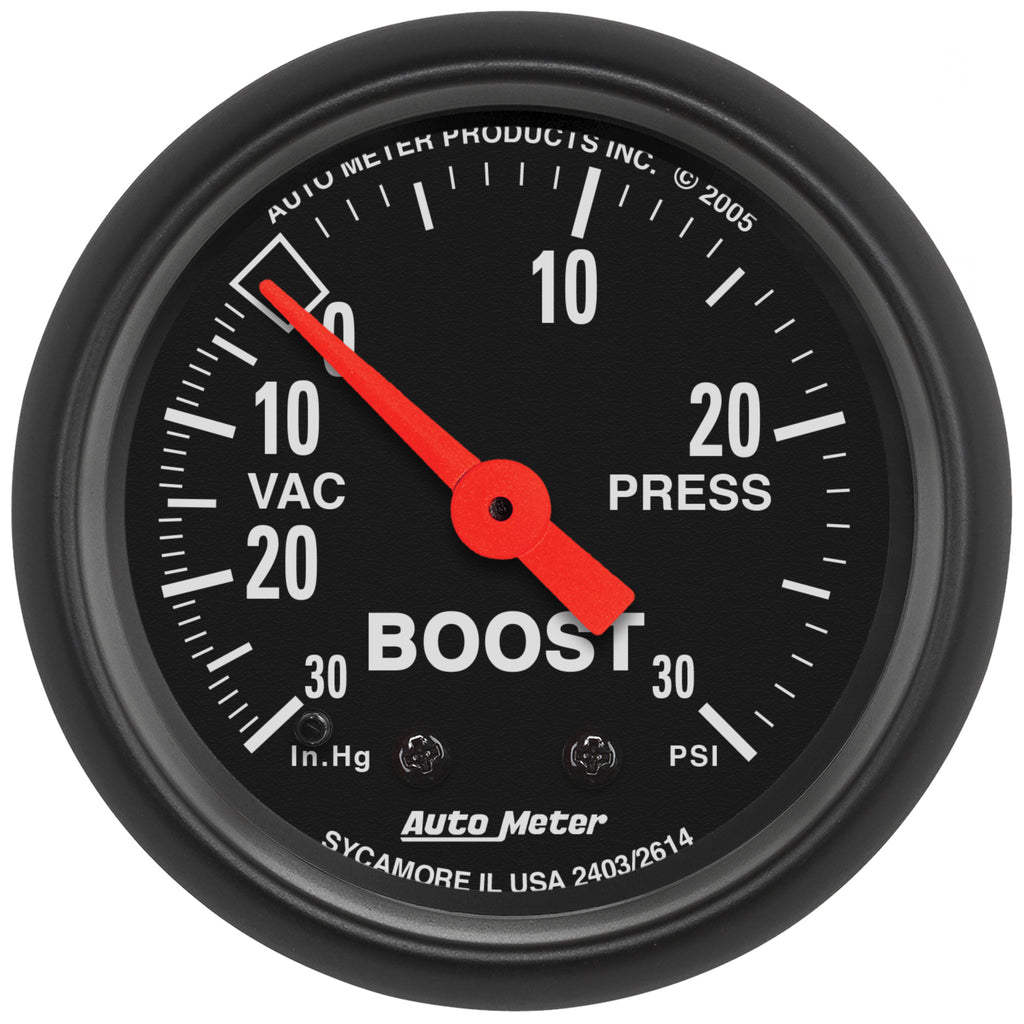

2-1/16" BOOST/VACUUM 30 IN HG/30 PSI Z-SERIES
2-1/16" BOOST/VACUUM 30 IN HG/30 PSI Z-SERIES
2-1/16" BOOST/VACUUM 30 IN HG/30 PSI Z-SERIES
2-1/16" BOOST/VACUUM 30 IN HG/30 PSI Z-SERIES

2-1/16" BOOST/VACUUM 30 IN HG/30 PSI Z-SERIES

  • Sale
  • $104.33
The standard in the industry, AutoMeter’s Mechanical Boost/Vac Gauges have found their way into more builds than any other. Using a patented, high precision bourdon tube meter movement, there isn’t another gauge on the market that can lay claim to the levels of accuracy or durability you’ll find here. A simple 1/8” NPT pressure connection requires no electrical hookup for operation. Includes 1/8” NPT fittings and nylon line kit.
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
  • No electrical system required for gauge operation - compatible with every street or race vehicle
  • Gauge kit includes 1/8” nylon line, T-Fitting, vacuum fitting, compression fittings, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • Mechanical movements provide accuracy and durability even in the harshest environments

Attributes:

  • Brand Name: AutoMeter
  • GTIN: 00046074026140
  • Bezel Color: Black
  • Bezel Style: Super Bezel
  • Cross Sell: 3224, 3227, 3228, 3229, 3226
  • Cup/Hole Size - Metric - MM: 52.4mm
  • Cup/Hole Size - Standard - IN: 2-1/16"
  • Dial Color: Black
  • Gauge Type: Boost/Vacuum
  • Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
  • Includes Bulb & Socket: 3220
  • Includes Light Covers: Red 3214 & Green 3215
  • Includes Mounting Hardware: 2230
  • Includes Tubing: 10 ft. nylon tubing
  • Lens Style: Flat, Clear
  • Lighting Color: White Incandescent
  • Lighting Type: Incandescent
  • Movement: Mechanical
  • Outer Bezel Diameter: 2-1/4"
  • Outer Bezel Diameter - Standard: 2-1/16"
  • Pointer Color: Fluorescent Red
  • Range: 30 IN HG/30 PSI
  • Related Item: 2160, BEX-1500, EP-800, 0423XL
  • Series: Z-SERIES
  • Size - Metric - MM: 52.4mm
  • Size - Standard - IN: 2-1/16"
  • Upsell: 3224, 3227, 3228, 3229, 3226

Extended Information:

  • Country of Origin: United States
  • Emissions : CARB Eligible

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 4.75 x 4.5 x 4.5 inches
  • Weight: 0.65 POUNDS
