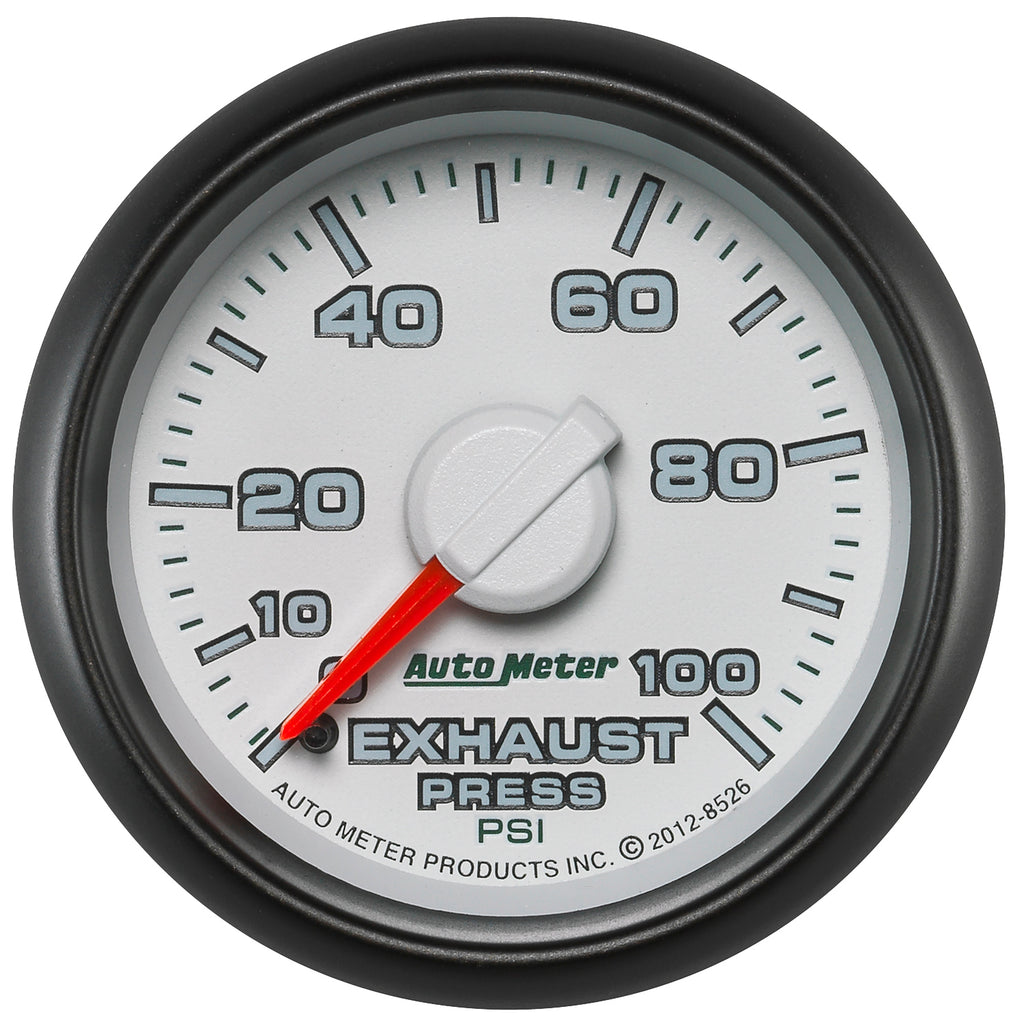

One of the most requested line additions in AutoMeter history, this Mechanical Exhaust Pressure Gauge has been engineered to the highest standards of accuracy and durability. Precisely monitor your exhaust backpressure to maximize power and efficiency and ensure turbo longevity. Also ideal for cam tuning, a simple 1/8” NPT connection is all you need for installation. An install kit with 1/4” copper tubing is included and an optional particulate filter is also available for enhanced gauge lifespan. For operator safety, these gauges are not recommended for installation inside the cabin of a vehicle.

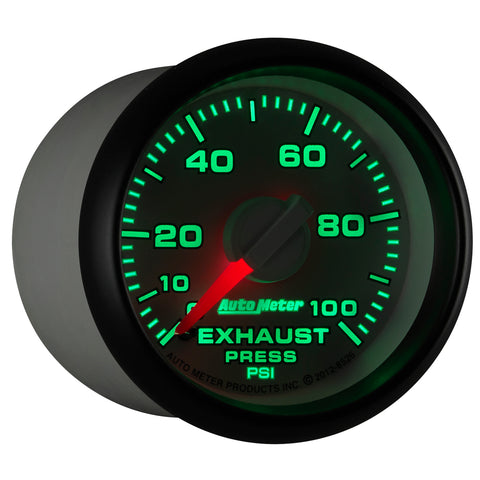

- Features Hi-Def™ through-the-dial green LED lighting
- Includes 10 ft. Nylon tubing with 1/8" NPT compression fittings
- Includes 6ft. Copper tubing with 1/8" NPT compression fittings
- Includes 1/8" NPT to 1/4" NPT adapter/fitting
- Direct vehicle exhaust connection to instrument - Gauge must be mounted outside of vehicle!
- Includes gauge mounting hardware and installation instructions
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074085260
- Bezel Color: Black
- Bezel Style: Super Bezel
- Cross Sell: 5375, 2204, 8506, 8545, 8560, 8586
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: White
- Gauge Type: Exhaust Pressure
- Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing
- Includes Mounting Hardware: 2230
- Includes Tubing: 10 ft. nylon tubing - 6 ft. Copper Tube
- Lens Style: Flat, Clear
- Lighting Color: Green
- Lighting Type: LED
- Movement: Mechanical
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: Fluorescent Red
- Range: 0-100 PSI
- Related Item: 2164, BEX-1500, EP-800, 0444, 0423XL
- Series: GEN 3 DODGE FACTORY MATCH
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 5375, 2204, 8506, 8545, 8560, 8586
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 5.25 x 5.5 x 5.5 inches
- Weight: 1.3 POUNDS
