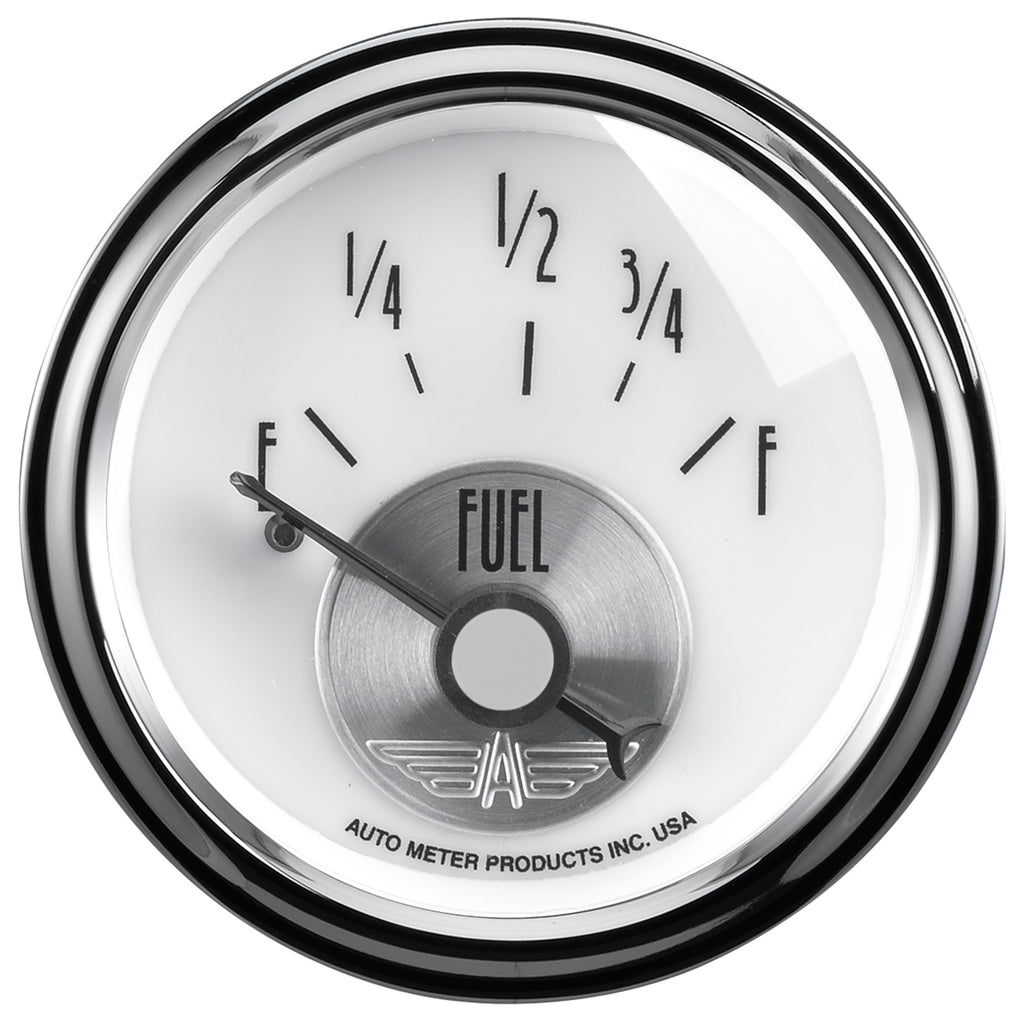

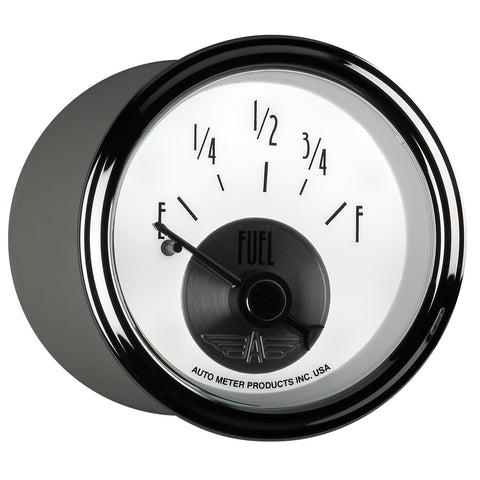

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
- Highly polished chrome bezel
- Features Hi-Def™ through-the-dial white LED lighting
- Works with most 1965 to 1997 Chevrolet/GM senders
- Features Air-Core meter movement
- Includes gauge mounting hardware and installation instructions
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074020155
- Bezel Color: Chrome
- Bezel Style: Street Rod
- Cross Sell: 3298, 9114
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: White
- Gauge Type: Fuel Level
- Includes Mounting Hardware: 2230
- Lens Style: Domed, Clear
- Lighting Color: White
- Lighting Type: LED
- Movement: Electric, Air-Core
- Outer Bezel Diameter: 2-15/64"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: Black
- Range: 0 O Empty / 90 O Full
- Related Item: 2160, BEX-3000, EP-800, 0423XL
- Series: PRESTIGE PEARL
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 3298, 9114
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.75 x 4.5 x 4.5 inches
- Weight: 0.5 POUNDS
