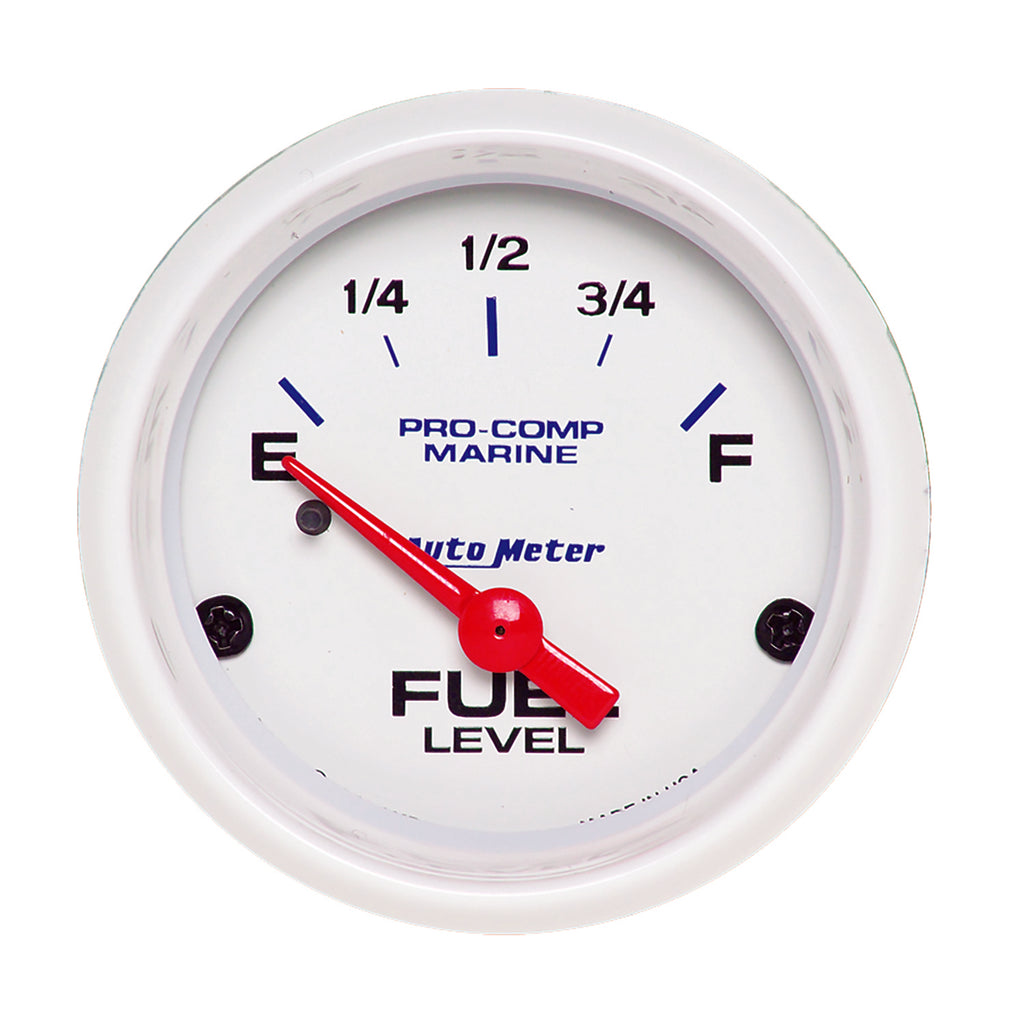

2-1/16" FUEL LEVEL 240-33 O MARINE WHITE
2-1/16" FUEL LEVEL 240-33 O MARINE WHITE
2-1/16" FUEL LEVEL 240-33 O MARINE WHITE
2-1/16" FUEL LEVEL 240-33 O MARINE WHITE

2-1/16" FUEL LEVEL 240-33 O MARINE WHITE

  • Sale
  • $61.87
One of the most necessary gauges on any dashboard! AutoMeter makes it easy with our patented air core meter movement with built-in extra dampening to help combat the effects fuel slosh in non-baffled tanks. Works with AutoMeter fuel sender 990345 or other aftermarket 240 Ohm empty to 33 Ohm full fuel level sending units.
  • Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
  • Requires AutoMeter sending unit 990345 or equivalent 240E/33F fuel level sender
  • 12 and 16 volt compatible, well-suited with nearly every marine electrical system
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
  • 12 month limited warranty
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the boat
  • Traditional incandescent lighting illuminates around the perimeter of the dial

Attributes:

  • Brand Name: AutoMeter
  • GTIN: 00046074120930
  • Bezel Color: White
  • Bezel Style: Super Bezel
  • Cross Sell: 990345, 3298, 3288, 3284, 3285
  • Cup/Hole Size - Metric - MM: 52.4mm
  • Cup/Hole Size - Standard - IN: 2-1/16"
  • Dial Color: White
  • Gauge Type: Fuel Level
  • Includes Bulb & Socket: 3220
  • Includes Light Covers: Red 3214 & Green 3215
  • Includes Mounting Hardware: 2225
  • Lens Style: Flat, Clear
  • Lighting Color: White Incandescent
  • Lighting Type: Incandescent
  • Movement: Electric, Air Core
  • Outer Bezel Diameter: 2-1/4"
  • Outer Bezel Diameter - Standard: 2-1/16"
  • Pointer Color: Fluorescent Red
  • Range: 240 O Empty / 33 O Full
  • Related Item: BEX-5000, 0447LXL, EP-800, 0423XL
  • Series: MARINE WHITE
  • Size - Metric - MM: 52.4mm
  • Size - Standard - IN: 2-1/16"
  • Upsell: 990345, 3298, 3288, 3284, 3285

Extended Information:

  • Country of Origin: US
  • Emissions : 1

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 4.75 x 4.5 x 4.5 inches
  • Weight: 0.5 POUNDS
