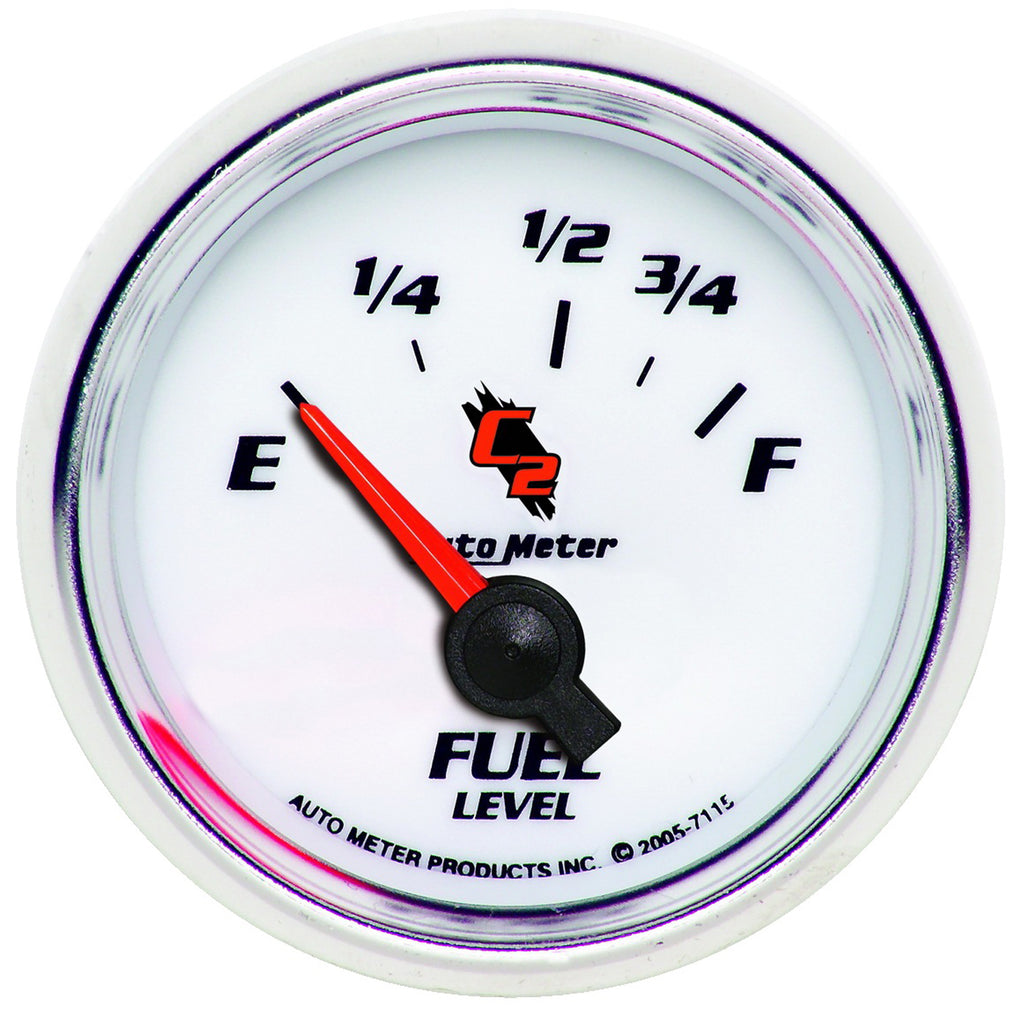

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
- Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
- Works with most Pre-1989 (Pre-1987 Mustang) Ford and most Chrysler
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes mounting hardware and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074071157
- Bezel Color: Bright Anodized
- Bezel Style: Super Bezel
- Cross Sell: 7127, 7137, 9114, 7192, 7297, 7288
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: White
- Gauge Type: Fuel Level
- Includes Mounting Hardware: 2230
- Lens Style: Flat, Clear
- Lighting Color: Blue
- Lighting Type: LED
- Movement: Electric, Air-Core
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: Fluorescent Red
- Range: 73 O Empty / 10 O Full (NON-LINEAR)
- Related Item: 2160, BEX-3000, EP-800, 0423XL
- Series: C2
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 7127, 7137, 9114, 7192, 7297, 7288
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.75 x 4.5 x 4.5 inches
- Weight: 0.5 POUNDS
