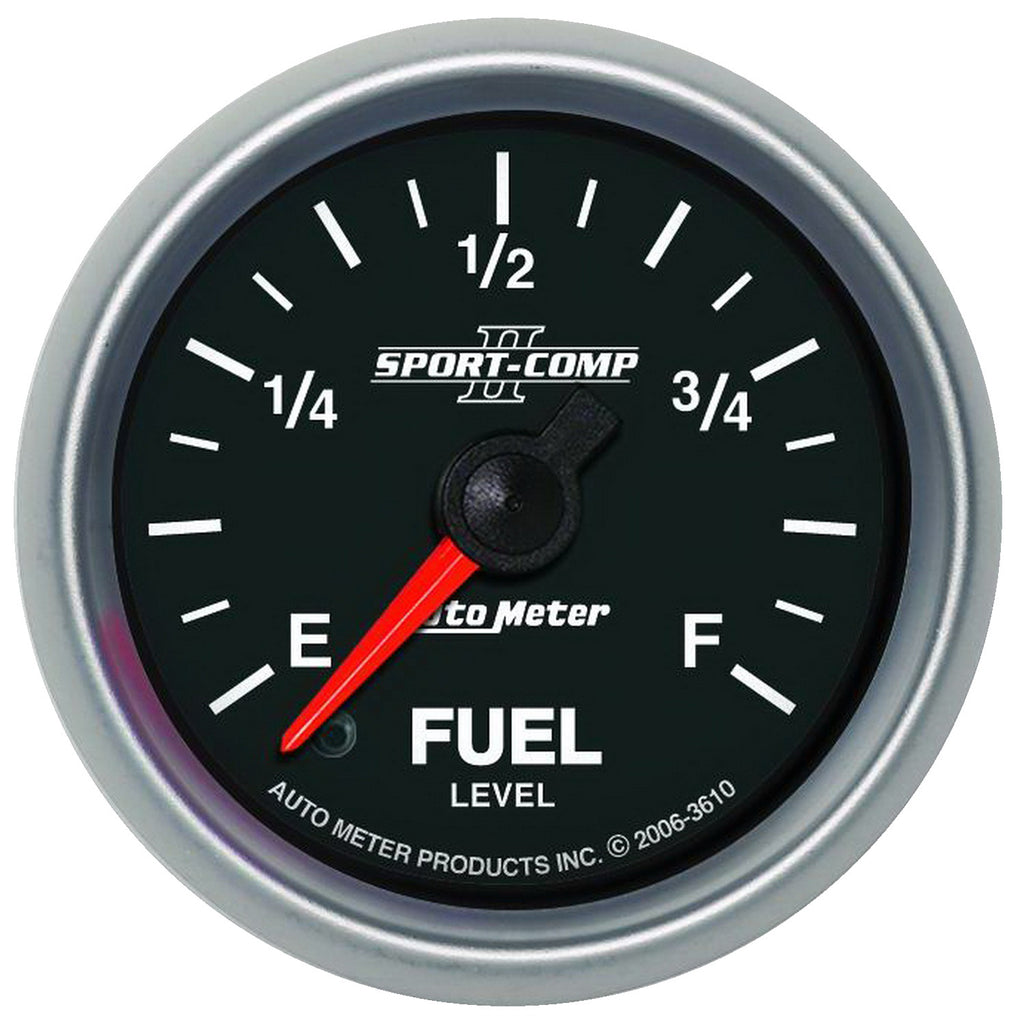

Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it’s easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our “snapshot” programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn’t an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation
- Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
- User definable resistance setting programmable anywhere between 0-280 ohms
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074036101
- Bezel Color: Brushed Aluminum
- Bezel Style: Super Bezel
- Cross Sell: 3262, 3263, 9114
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Black
- Gauge Type: Fuel Level
- Includes Mounting Hardware: 2230
- Includes Wire Harness: 5233
- Lens Style: Flat, Clear
- Lighting Color: White
- Lighting Type: LED
- Movement: Electric, Digital Stepper Motor
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: Fluorescent Red
- Range: Programmable 0-280 O
- Related Item: 2160, BEX-3000, EP-800, 0423XL
- Series: SPORT-COMP II
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 3262, 3263, 9114
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.75 x 4.5 x 4.5 inches
- Weight: 0.5 POUNDS
