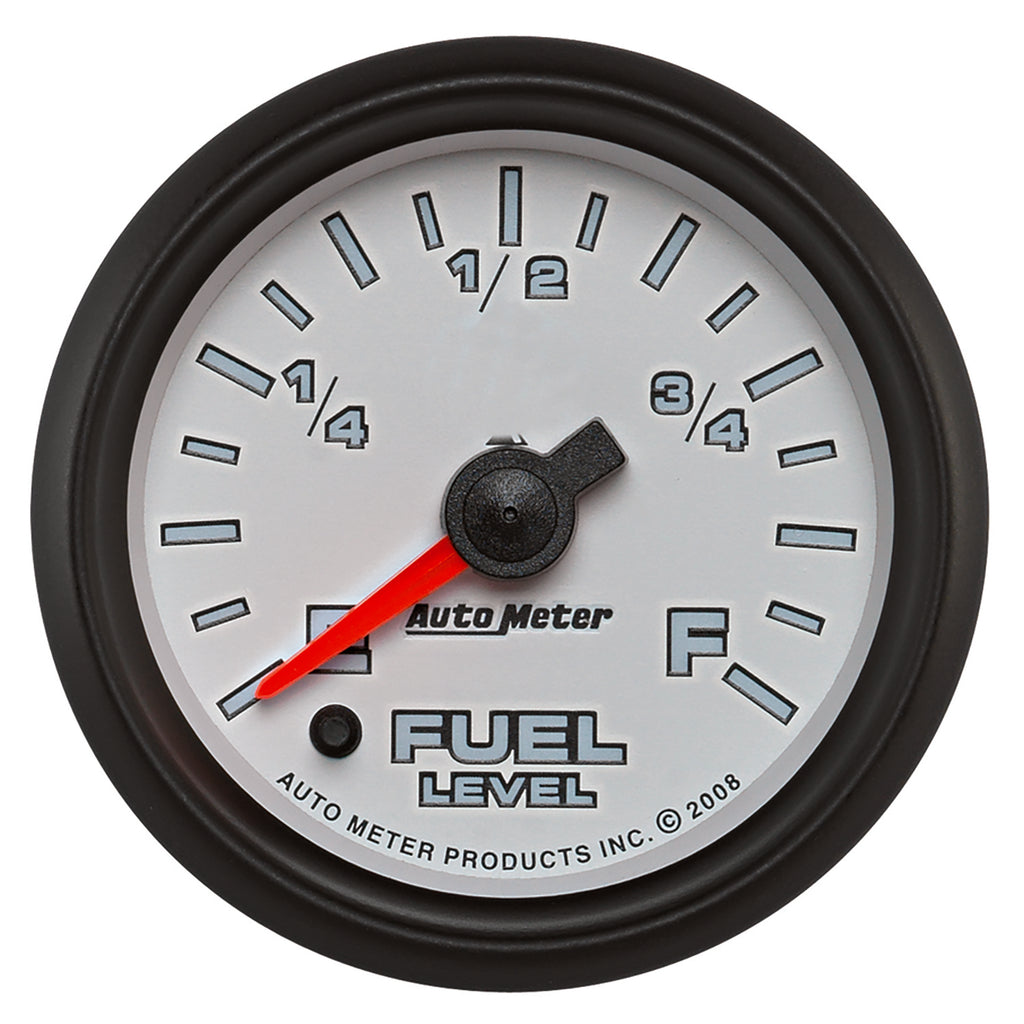

Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it’s easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our “snapshot” programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn’t an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.
- Features Hi-Def™ through-the-dial white LED lighting with LED lit pointer
- Vibration and water-resistant
- Adjustable Scale w/ 7 preset ranges for common fuel sender types
- Programmable anywhere between 0-280 ohms
- Includes gauge mounting hardware and installation instructions
- Full sweep precision digital stepper motor meter movement
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074147586
- Bezel Color: Black
- Bezel Style: Super Bezel
- Cross Sell: 19589, 19598, 19552, 19540, 19592, BEX-3000
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: White
- Gauge Type: Fuel Level
- Includes Mounting Hardware: YES
- Includes Wire Harness: YES
- Lens Style: Flat, Clear
- Lighting Color: White
- Lighting Type: LED
- Movement: Digital Stepper Motor
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: Fluorescent Red
- Range: Programmable 0-280 O
- Related Item: 0447LXL, EP-800, 0443, 0423XL, 0448XL, 0424XL
- Series: PRO-CYCLE
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 19589, 19598, 19552, 19540, 19592, BEX-3000
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.75 x 4.5 x 4.5 inches
- Weight: 0.6 POUNDS
