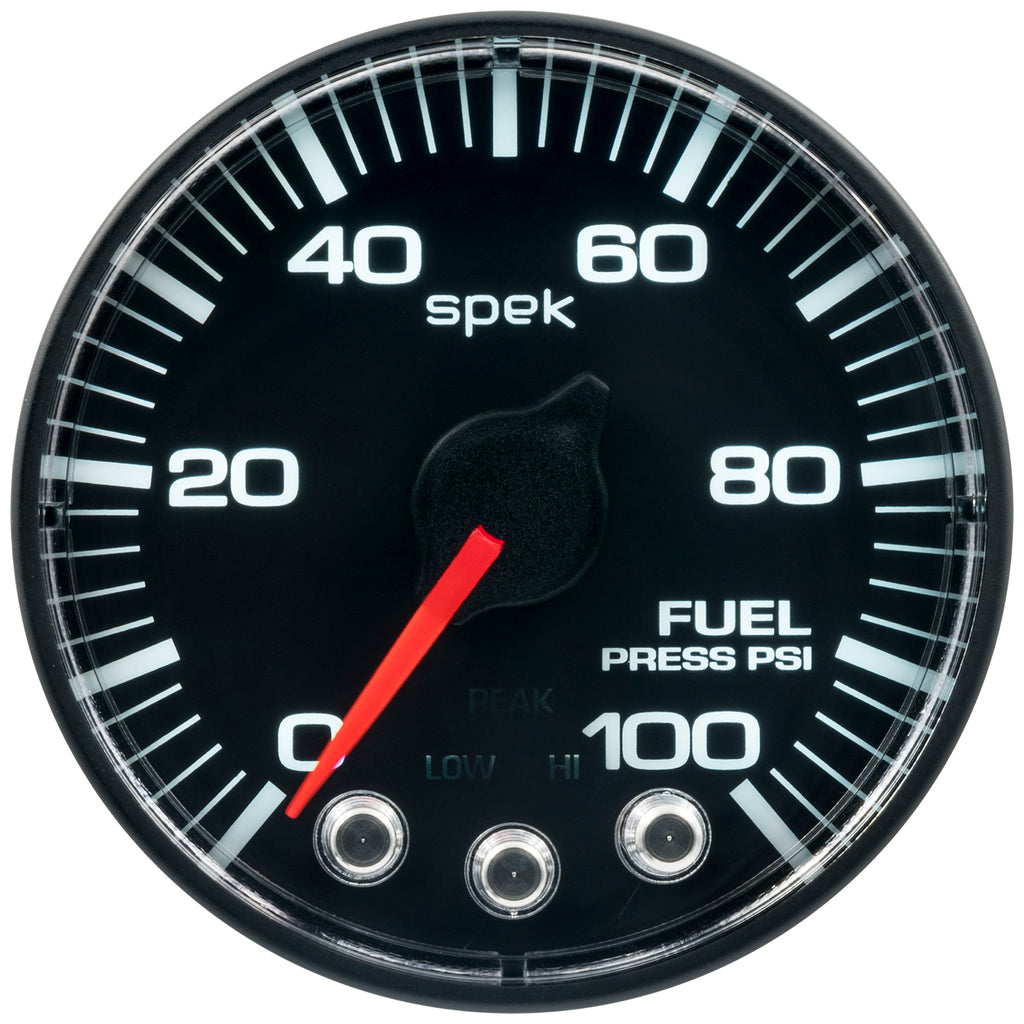

a precise fuel pressure gauge could be the cheapest insurance you’ve ever bought. A direct plug in wiring harness is included for ease of installation.

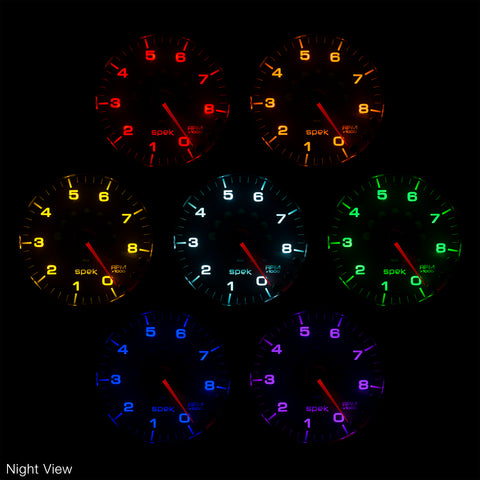

- 7 color user-selectable background illuminations (red, blue, green, white, yellow, orange, and violet) with adjustable brightness for day and night - with independent dimming of dial and pointer.
- Configurable "High" and "Low" warnings using three on-instrument-face buttons
- Pro-Control output enables a 1.5 amp load to activate a relay and trigger your choice of warning lights, external buzzers, fans, pumps, or features such as water/meth/nitrous injection.
- Features a peak recall function, which enables the user to review high gauge readings. The highest reading will be stored by the gauge until it is cleared.
- Solid-state data acquisition grade sending units provide unmatched gauge accuracy and withstand the harshest environments.
- Includes patented light-weight, spin-on bracket and pre-wired harness for simplified installation.
- Patented Wide Angle dial design provides the largest viewable dial available in a 2-1/16" gauge.
- Precision 280 brushless stepper motor movement provides a quiet, fluid, and accurate pointer movement with superior dial resolution.
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074152436
- Bezel Color: Black
- Bezel Style: Spek Square Shoulder
- Cross Sell: HPR, 2205, P325324, P346324
- Cup/Hole Size - Metric - MM: 52.1mm
- Cup/Hole Size - Standard - IN: 2.050"
- Dial Color: Black
- Gauge Type: Fuel Pressure
- Includes Mounting Hardware: P12467
- Includes Sensor Unit: 2211
- Includes Wire Harness: P19320
- Lens Style: Flat, Clear
- Lighting Color: 7 User Selectable Colors
- Lighting Type: LED
- Movement: Electric, Digital Stepper Motor
- Outer Bezel Diameter: 2.360"
- Outer Bezel Diameter - Standard: 2.050"
- Pointer Color: Fluorescent Red
- Range: 0-100 PSI
- Related Item: 2163, BEX-5000, EP-800, 0423XL
- Series: SPEK-PRO
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: HPR, 2205, P325324, P346324
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 5.5 x 5.5 x 4.75 inches
- Weight: 1 POUNDS
