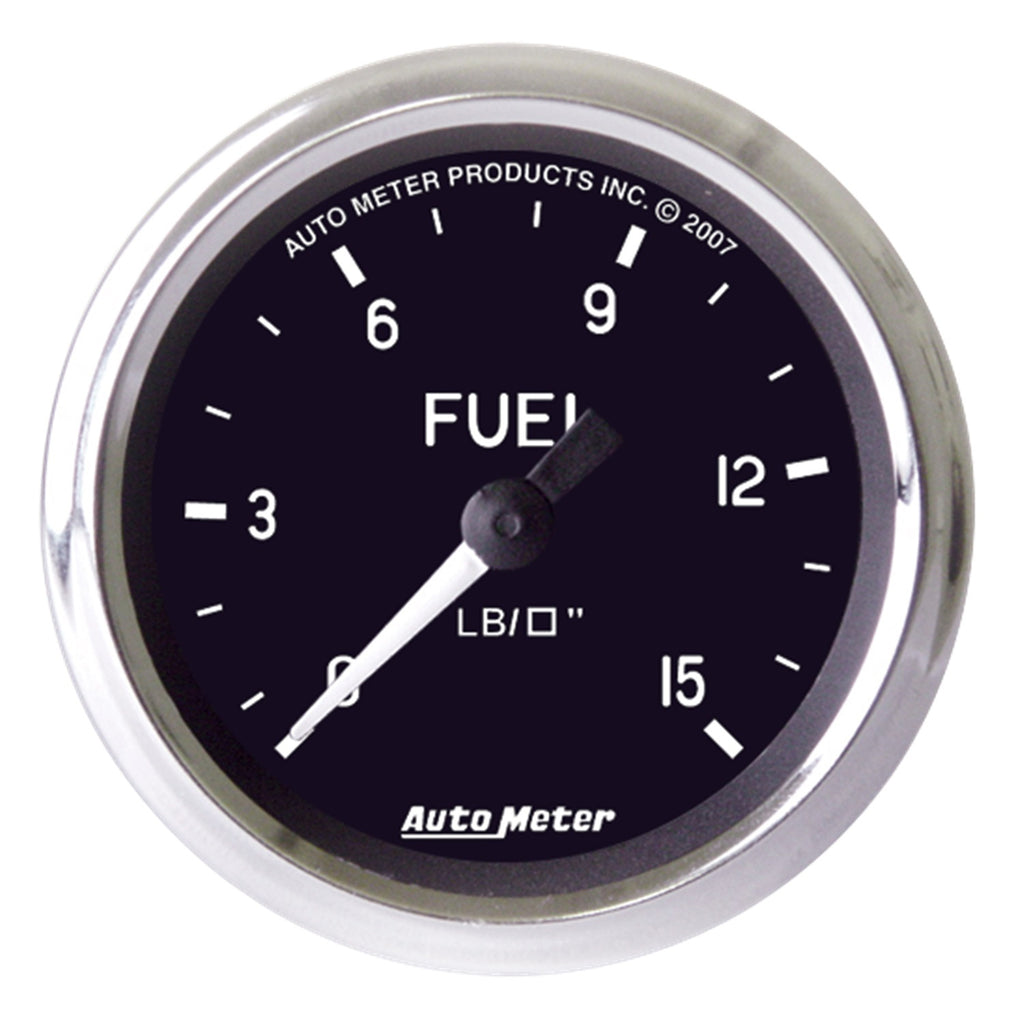

a precise fuel pressure gauge could be the cheapest insurance you’ve ever bought. For the safety of the operator, it is not recommended that Fuel Pressure gauge are installed inside the cabin of the vehicle. Optional fuel isolators are available for both carbureted and fuel injected applications.
- Highly polished chrome bezel
- Includes bulb and socket assembly with red and green bulb covers
- Includes 4ft. Braided stainless steel hose, also requires #4 braided hose to connect isolator to fuel source
- Use of isolator allows gauge to be mounted inside vehicle
- Includes gauge mounting hardware and installation instructions
- Includes gauge mounting hardware and installation instructions
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074120558
- Bezel Color: Chrome
- Bezel Style: Street Rod
- Cross Sell: 3227, 3228, 3229, 3288, 3286, 3284
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Black
- Gauge Type: Fuel Pressure
- Includes Bulb & Socket: 3220
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: 2230
- Includes Sensor Unit: Fuel Isolator
- Includes Tubing: 4 ft. braided stainless hose
- Lens Style: Flat, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Movement: Mechanical
- Outer Bezel Diameter: 2-15/64"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: White
- Range: 0-15 PSI
- Related Item: 2160, BEX-3000, EP-800, 0423XL
- Series: COBRA
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 3227, 3228, 3229, 3288, 3286, 3284
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4 x 4 x 3 inches
- Weight: 0.5 POUNDS
