a precise fuel pressure gauge could be the cheapest insurance you’ve ever bought. A direct plug in wiring harness is included for ease of installation and data logging is available thanks to a .5 - 4.5v analog output.
- Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
- Gauge kit includes 20 ft. wiring harness, bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
- Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- 12 month limited warranty
- 12 and 16 volt compatible, well-suited with nearly every marine electrical system
- Traditional incandescent lighting illuminates around the perimeter of the dial
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074142253
- Bezel Color: White
- Bezel Style: Super Bezel
- Cross Sell: 3288, 3284, 3285, 3286, 3287
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: White

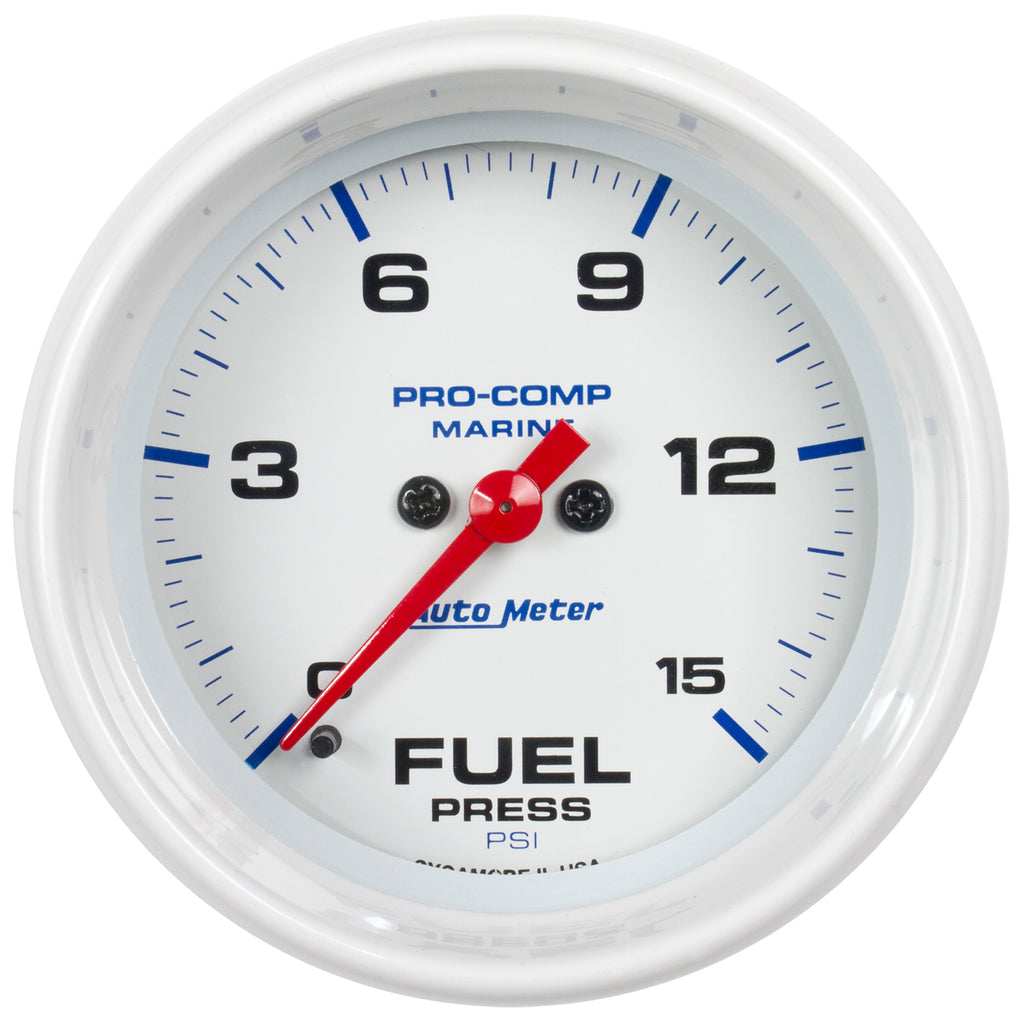

- Gauge Type: Fuel Pressure
- Includes Bulb & Socket: 3220
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: 2225
- Includes Sensor Unit: 2245
- Includes Wire Harness: 5223
- Lens Style: Flat, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Movement: Electric, Digital Stepper Motor
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: Fluorescent Red
- Range: 0-15 PSI
- Related Item: BEX-5000, 0447LXL, EP-800, 0423XL
- Series: MARINE WHITE
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 3288, 3284, 3285, 3286, 3287
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.75 x 4.5 x 4.5 inches
- Weight: 0.87 POUNDS
