a precise fuel pressure gauge could be the cheapest insurance you’ve ever bought. A direct plug in wiring harness is included for ease of installation and data logging is available thanks to a .5 - 4.5v analog output.

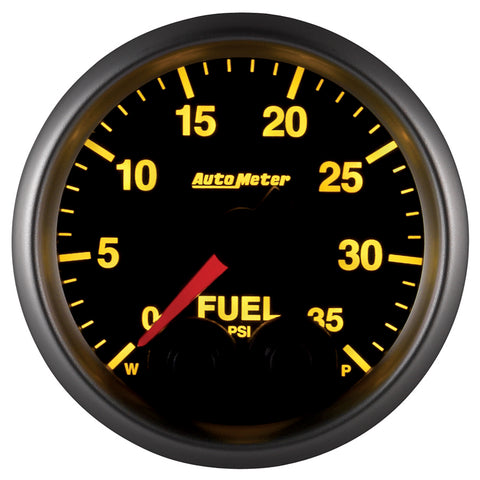

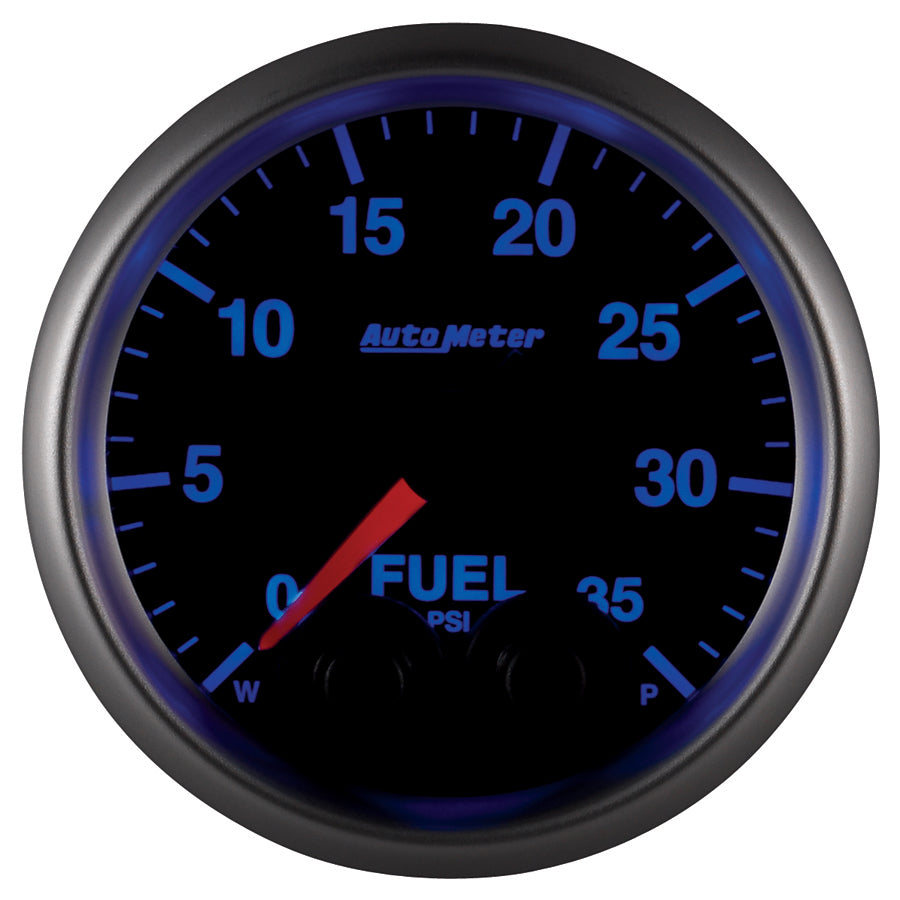

- 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
- This specialty variant gauge is NASCAR approved and eliminates the Pro-Control output and wiring present on the standard production Elite series model
- Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
- Acquire data for later review with one-touch Peak Recall functionality
- Gauge kit includes 1/8” NPT stainless steel pressure transducer, 1/4” NPT adapter, wiring harness, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074141799
- Bezel Color: Brushed Aluminum
- Bezel Style: Super Bezel
- Cross Sell: 5275, 5655-05702-D, 5652-05702-A, 5660-05702-A, 5639-05702-D, 6847-05705
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Black
- Gauge Type: Fuel Pressure
- Includes Mounting Hardware: 2230
- Lens Style: Flat, Clear
- Lighting Color: 28 User Selectable Colors
- Lighting Type: LED
- Movement: Electric, Digital Stepper Motor
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: Fluorescent Red
- Range: 0-35 PSI
- Related Item: 2163, BEX-5000, EP-800, 0423XL, 0424XL
- Series: ELITE - NASCAR
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 5275, 5655-05702-D, 5652-05702-A, 5660-05702-A, 5639-05702-D, 6847-05705
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.75 x 4.25 x 4.25 inches
- Weight: 0.8 POUNDS
