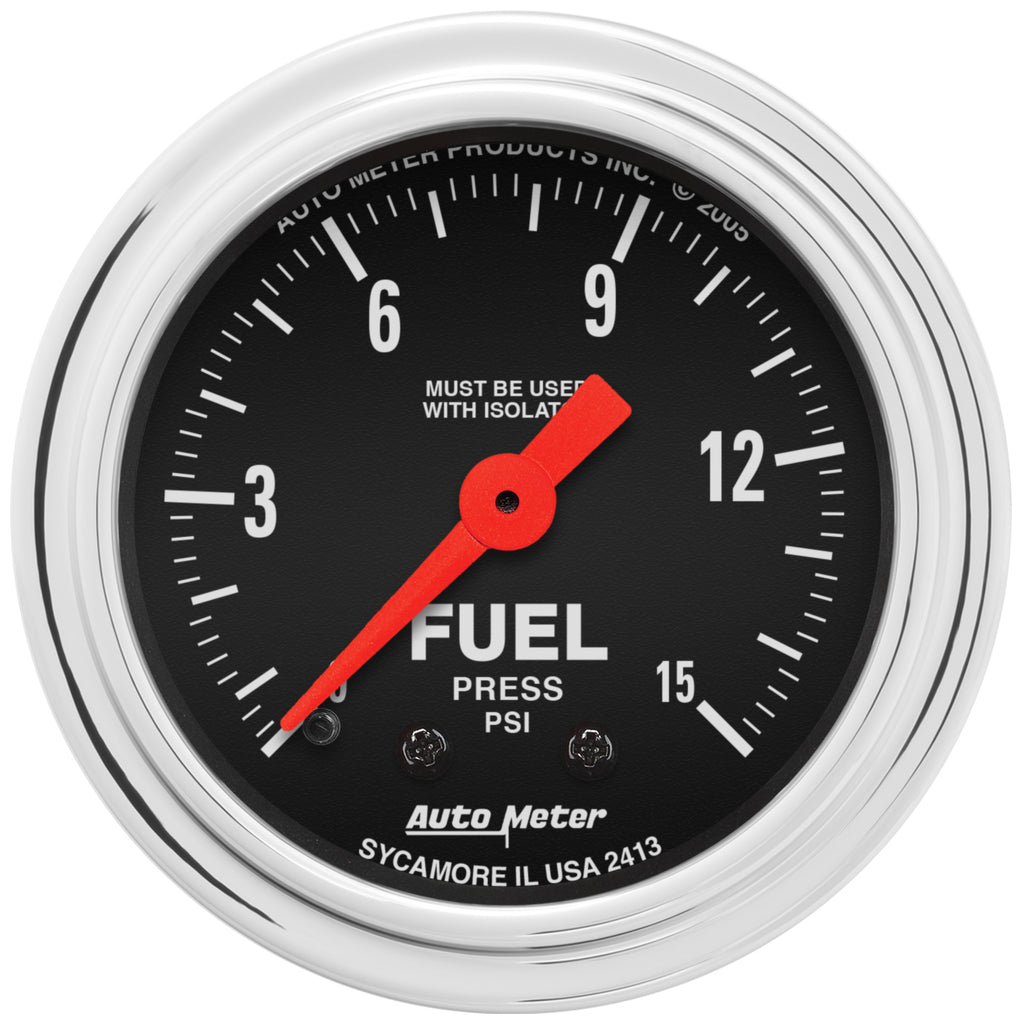

a precise fuel pressure gauge could be the cheapest insurance you’ve ever bought. For the safety of the operator, a fuel pressure isolator is included.
- Highly polished chrome bezel
- Includes bulb and socket assembly with red and green bulb covers
- Includes 4ft. Braided stainless steel hose, also requires #4 braided hose to connect isolator to fuel source
- Use of isolator allows gauge to be mounted inside vehicle
- Includes gauge mounting hardware and installation instructions
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074024139
- Bezel Color: Chrome
- Bezel Style: SAE
- Cross Sell: 3227, 3228, 3229
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Black
- Gauge Type: Fuel Pressure w/ Isolator
- Includes Bulb & Socket: 3220
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: 2230
- Includes Sensor Unit: Fuel Isolator
- Includes Tubing: 4 ft. braided stainless hose
- Lens Style: Flat, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Movement: Mechanical
- Outer Bezel Diameter: 2-5/16"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: Fluorescent Red
- Range: 0-15 PSI
- Related Item: 2160, BEX-1500, EP-800, 0423XL
- Series: TRADITIONAL CHROME
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 3227, 3228, 3229
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 6.25 x 6.25 x 5.5 inches
- Weight: 2.01 POUNDS
