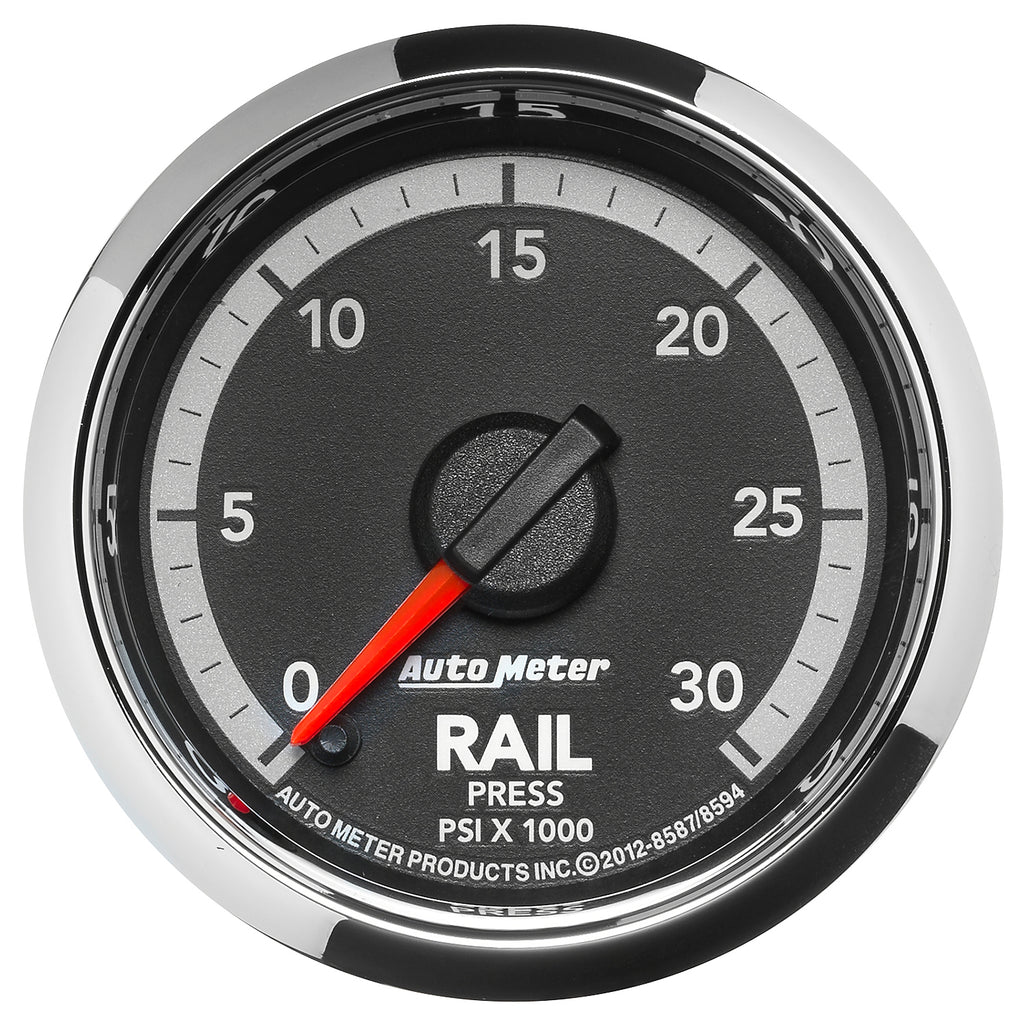

Ultra high pressures in modern direct injected diesel applications require precise monitoring to assure the longevity and power output of your engine. Using AutoMeter’s advanced Digital Stepper Motor Drive, this gauge provide the most accurate possible reading, professional grade reliability and smooth pointer movement. Connects directly to your factory sensor with an included wiring harness.
- Highly polished chrome bezel

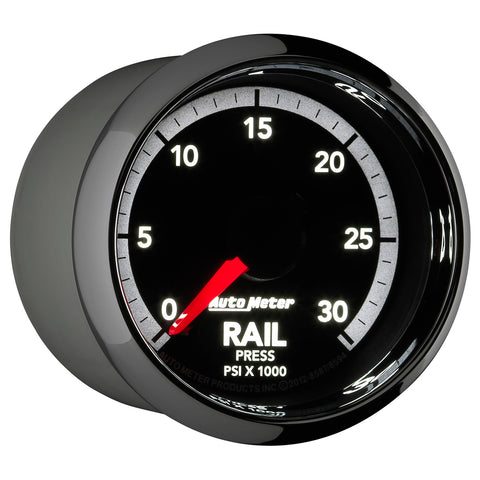

- Factory matched LED through-the-dial lighting provides clear visibility during nighttime use and matches OEM instrumentation
- Gauge kit includes wiring harness, mounting hardware, and detailed instructions for installation
- Included wire harness connects to original equipment fuel rail pressure sensor wiring
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074085949
- Bezel Color: Chrome
- Bezel Style: Super Bezel
- Cross Sell: 8508, 8546, 8550, 8561, 8564, 2204
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Black
- Gauge Type: Fuel Rail Pressure
- Includes Mounting Hardware: 2230
- Includes Wire Harness: Call Auto Meter Technical Support At 1-866-248-6357
- Lens Style: Flat, Clear
- Lighting Color: White
- Lighting Type: LED
- Movement: Electric, Digital Stepper Motor
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: Fluorescent Red
- Range: 0-30K PSI
- Related Item: 2164, BEX-1500, EP-800, 0444, 0423XL
- Series: GEN 4 DODGE FACTORY MATCH
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 8508, 8546, 8550, 8561, 8564, 2204
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.75 x 4.5 x 4.5 inches
- Weight: 0.6 POUNDS
