Designed for the absolute harshest environments, the AutoMeter Extreme Environment series gauges provide the very best in IP69K sealing. One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you’ve got the proper oil weight and cooling capacity. Using AutoMeter’s advanced 1/8” NPT two wire temperature transducer, you can be assured of the most accurate possible readings of the life blood of your engine. The advanced Digital Stepper Motor Drive keeps needle movement smooth and precise. Preconfigured warning points change the gauge's LED illumination from white to red, allowing you to concentrate on the work at hand or taking the checkered flag. A direct plug in wiring harness is included for ease of installation.
- Waterproof Design (IP69K) - Sealed front and rear for protection against the elements in exposed cockpits

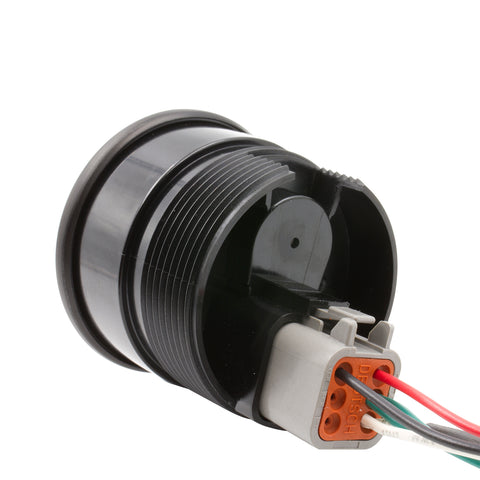

- 6 pin DT connector at gauge makes for a sealed connection
- Ultra light weight construction - 70% Lighter than Pro-Comp Liquid Filled 2-5/8” gauges, 60% lighter than Ultra-Lite 2-5/8” Mechanical, 25% lighter than Spek, 10% less than Elite
- White through-dial LED lighting with red pre-set full dial warning with solid and blink transitions
- External momentary switch for control of brightness
- Stepper motor design and dial layout optimized for maximum resolution and accuracy in critical operating range
- Preset backlight color change warning - 4 PSI
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074092664
- Bezel Color: Black
- Bezel Style: Stack
- Cross Sell: 5322, 9253, 9255, 9240, 9261, 9217
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Black
- Gauge Type: Water Pressure
- Includes Mounting Hardware: YES
- Includes Sensor Unit: 2229
- Lens Style: Flat, Clear
- Lighting Color: White
- Lighting Type: LED
- Movement: Electric, Digital Stepper Motor
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: Fluorescent Red
- Range: 0-35 PSI
- Related Item: 2163, BEX-5000, EP-800, 0447XL
- Series: EXTREME ENVIRONMENT
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 5322, 9253, 9255, 9240, 9261, 9217
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 5.5 x 5.5 x 4.75 inches
- Weight: 1 POUNDS
