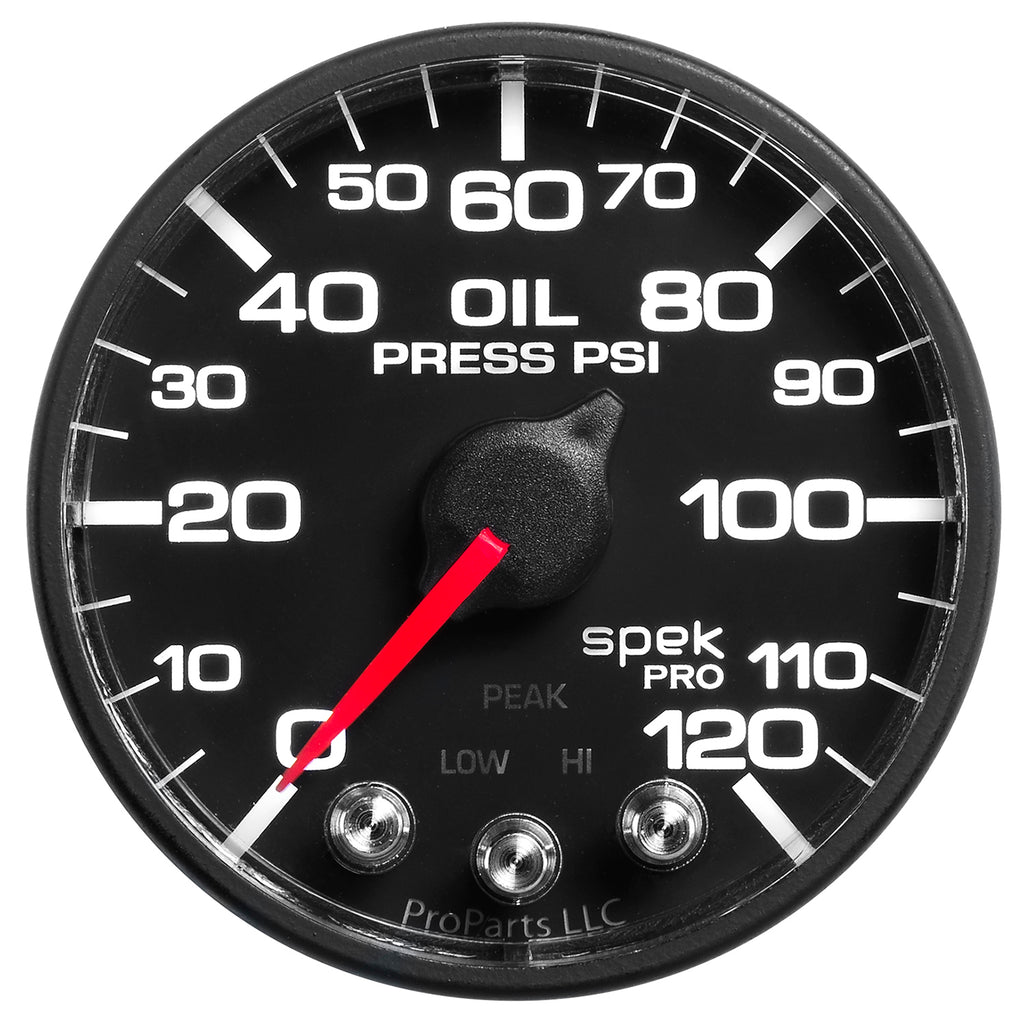

The life blood of your engine, a lack of oil pressure is one of the most catastrophic scenarios that can happen. Knowing the precise pressure is critical to both its longevity and performance, as well as your peace of mind. AutoMeter’s Digital Stepper Motor Oil Pressure Gauge utilizes the most advanced technology on the market to deliver accuracy and durability you won’t find anywhere else. Our advanced 1/8” NPT solid state pressure transducer (included) provides the best possible measurements with unparalleled resistance to vibration and heat. A direct plug in wiring harness is also included for ease of installation.

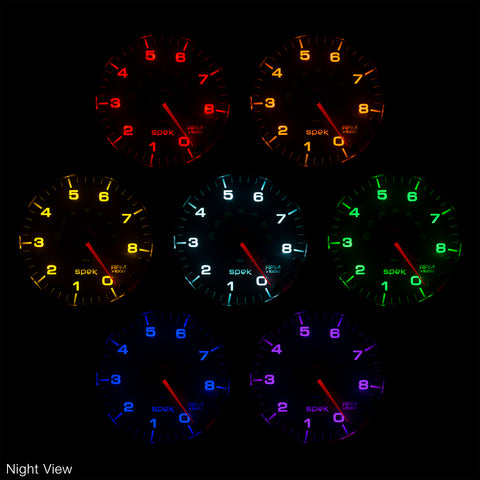

- 7 color user-selectable background illuminations (red, blue, green, white, yellow, orange, and violet) with adjustable brightness for day and night - with independent dimming of dial and pointer.
- Configurable "High" and "Low" warnings using three on-instrument-face buttons
- Features a peak recall function, which enables the user to review high gauge readings. The highest reading will be stored by the gauge until it is cleared.
- Includes patented light-weight, spin-on bracket and pre-wired harness for simplified installation.
- Patented Wide Angle dial design provides the largest viewable dial available in a 2-1/16" gauge.
- Precision 280 brushless stepper motor movement provides a quiet, fluid, and accurate pointer movement with superior dial resolution.
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074153952
- Bezel Color: Black
- Bezel Style: Spek Square Shoulder
- Cup/Hole Size - Metric - MM: 52.1mm
- Cup/Hole Size - Standard - IN: 2.050"
- Dial Color: Black
- Gauge Type: Oil Pressure
- Includes Mounting Hardware: P12467
- Includes Wire Harness: P19317
- Lens Style: Flat, Clear
- Lighting Color: 7 User Selectable Colors
- Lighting Type: LED
- Movement: Electric, Digital Stepper Motor
- Outer Bezel Diameter: 2.360"
- Outer Bezel Diameter - Standard: 2.050"
- Pointer Color: Fluorescent Red
- Range: 0-120 PSI
- Related Item: 2163, BEX-5000, EP-800, 0423XL
- Series: SPEK-PRO - NASCAR
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 5.5 x 5.5 x 4.75 inches
- Weight: 0.8 POUNDS
