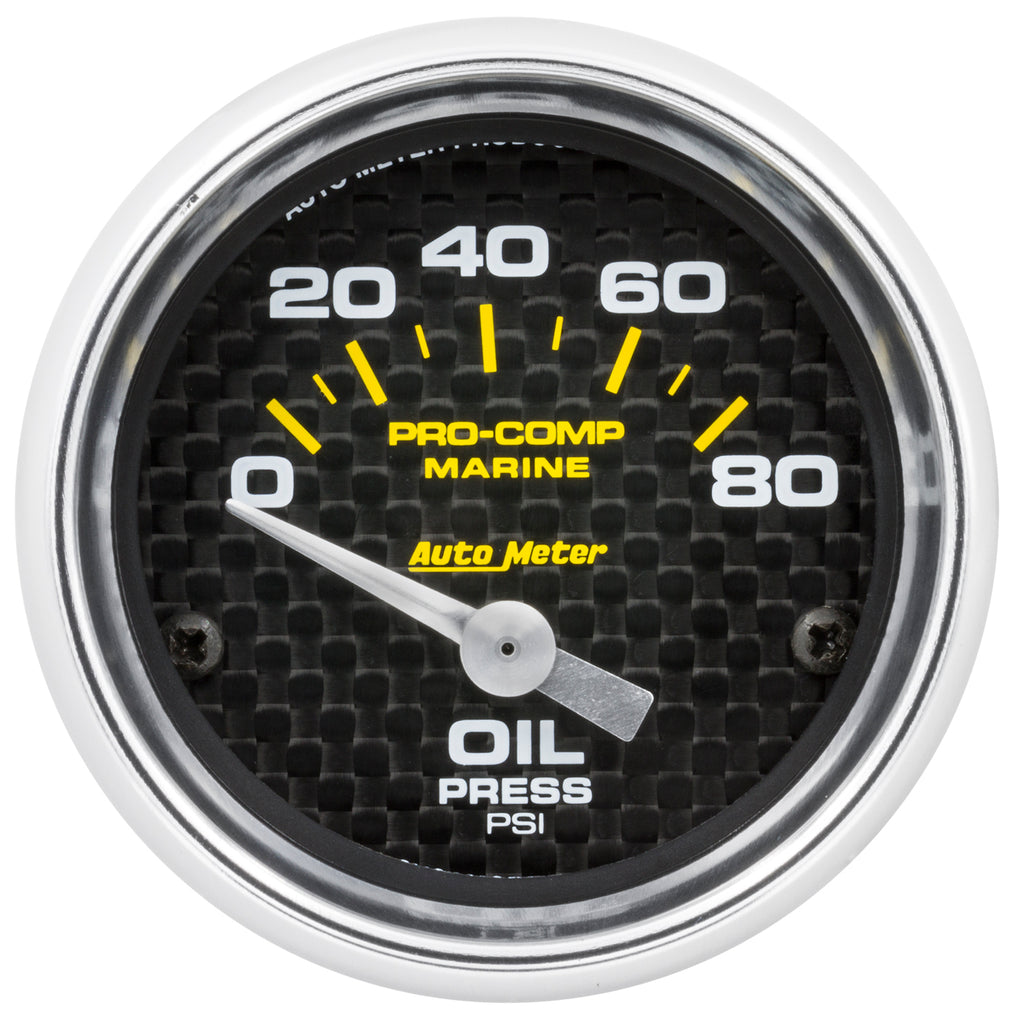

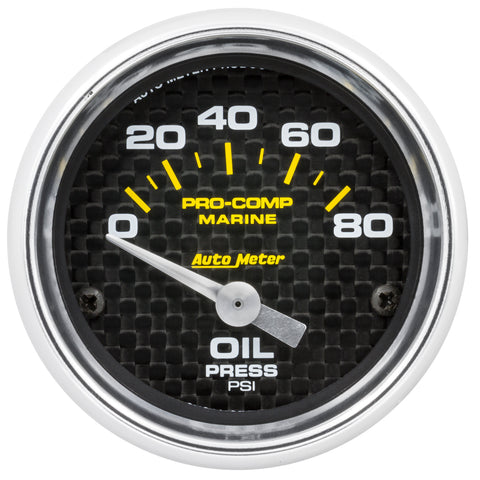

2-1/16" OIL PRESSURE 0-80 PSI MARINE CARBON FIBER
2-1/16" OIL PRESSURE 0-80 PSI MARINE CARBON FIBER
2-1/16" OIL PRESSURE 0-80 PSI MARINE CARBON FIBER
2-1/16" OIL PRESSURE 0-80 PSI MARINE CARBON FIBER

2-1/16" OIL PRESSURE 0-80 PSI MARINE CARBON FIBER

  • Sale
  • $56.46
Quite possibly the most critical vital to monitor, engine oil pressure can mean the difference between making it back to shore and needing to replace the engine. The patented air core meter movement provides the durability and accuracy that you expect from the AutoMeter name. Throughout 57 years of building the world’s best competition instruments, this meter movement has been the engine powering the machine that sets the benchmark. A single wire, 1/8” NPT oil pressure sender (990342) is available separately.
  • Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
  • Compatible with existing Marine standard 240-33 ohm sending units or aftermarket sensors such as VDO model 360 801.
  • 12 and 16 volt compatible, well-suited with nearly every marine electrical system
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
  • 12 month limited warranty
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the boat
  • Traditional incandescent lighting illuminates around the perimeter of the dial

Attributes:

  • Brand Name: AutoMeter
  • GTIN: 00046074137792
  • Bezel Color: Polished Aluminum
  • Bezel Style: Super Bezel
  • Cross Sell: 3288, 3284, 3285, 3286
  • Cup/Hole Size - Metric - MM: 52.4mm
  • Cup/Hole Size - Standard - IN: 2-1/16"
  • Dial Color: Carbon Fiber
  • Gauge Type: Oil Pressure
  • Includes Bulb & Socket: 3220
  • Includes Light Covers: Red 3214 & Green 3215
  • Includes Mounting Hardware: 2225
  • Lens Style: Flat, Clear
  • Lighting Color: White Incandescent
  • Lighting Type: Incandescent
  • Movement: Electric, Air Core
  • Outer Bezel Diameter: 2-1/4"
  • Outer Bezel Diameter - Standard: 2-1/16"
  • Pointer Color: Silver
  • Range: 0-80 PSI
  • Related Item: BEX-5000, EP-800, 0447LXL, 0423XL
  • Series: MARINE CARBON FIBER
  • Size - Metric - MM: 52.4mm
  • Size - Standard - IN: 2-1/16"
  • Upsell: 3288, 3284, 3285, 3286

Extended Information:

  • Country of Origin: United States
  • Emissions : CARB Eligible

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 4.75 x 4.5 x 4.5 inches
  • Weight: 0.5 POUNDS
