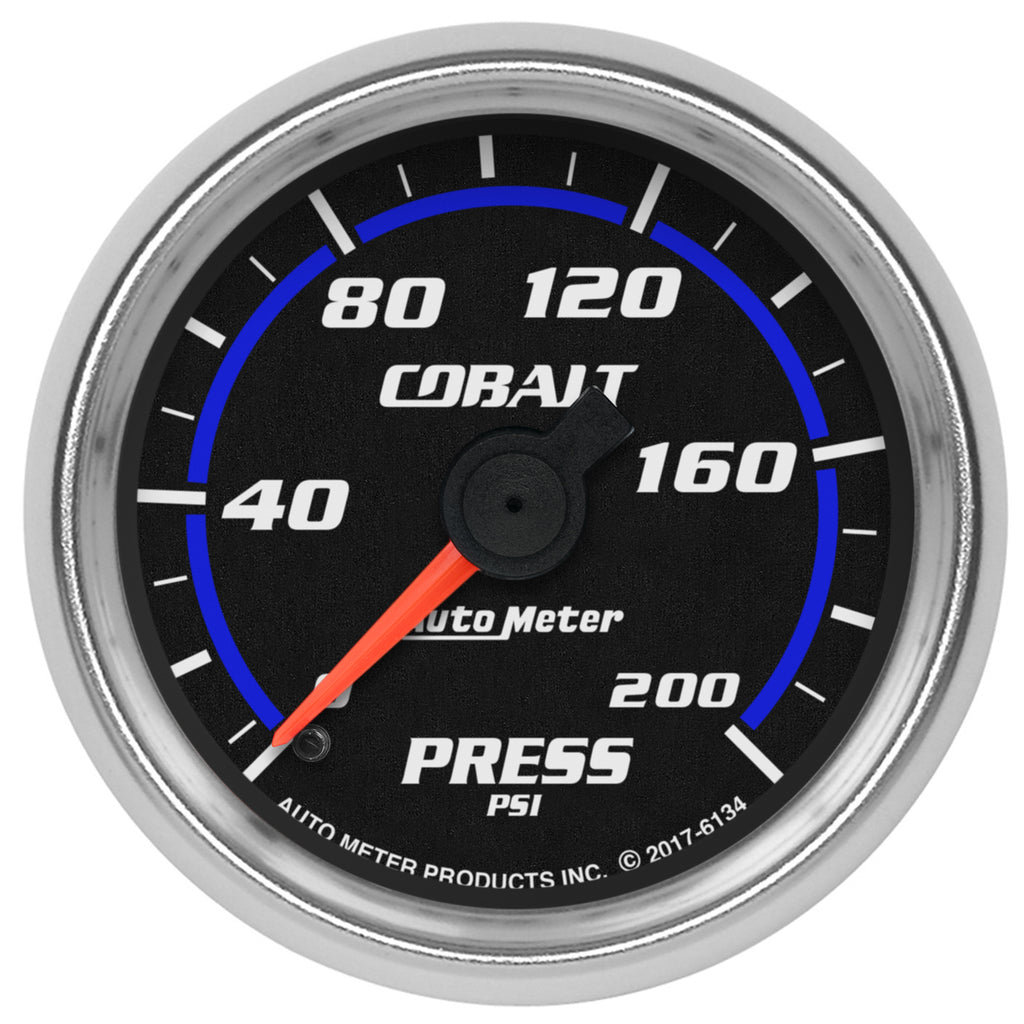

Whatever pressure source you need to measure, AutoMeter’s Mechanical Pressure Gauges will provide you a highly accurate, bullet proof reliable solution. The bourdon tube meter movement used in this gauge is engineered to function in even the harshest conditions and no electrical connection is needed for operation.
- Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Mechanical movements provide accuracy and durability even in the harshest environments
- Gauge kit includes 1/8” nylon line, 1/8” NPT compression fittings, 1/4” NPT adapter, mounting hardware, and detailed instructions for installation
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074061349
- Bezel Color: Bright Anodized
- Bezel Style: Super Bezel
- Cross Sell: 3224, 3227, 3228, 3229, 3226, 9114
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Black
- Gauge Type: Pressure
- Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing
- Includes Mounting Hardware: 2230
- Includes Tubing: 10 ft. nylon tubing
- Lens Style: Flat, Clear
- Lighting Color: Blue
- Lighting Type: LED
- Movement: Mechanical
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: Fluorescent Red
- Range: 0-200 PSI
- Related Item: 2160, BEX-3000, EP-800, 0424XL
- Series: COBALT
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 3224, 3227, 3228, 3229, 3226, 9114
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.75 x 4.5 x 4.5 inches
- Weight: 0.83 POUNDS
