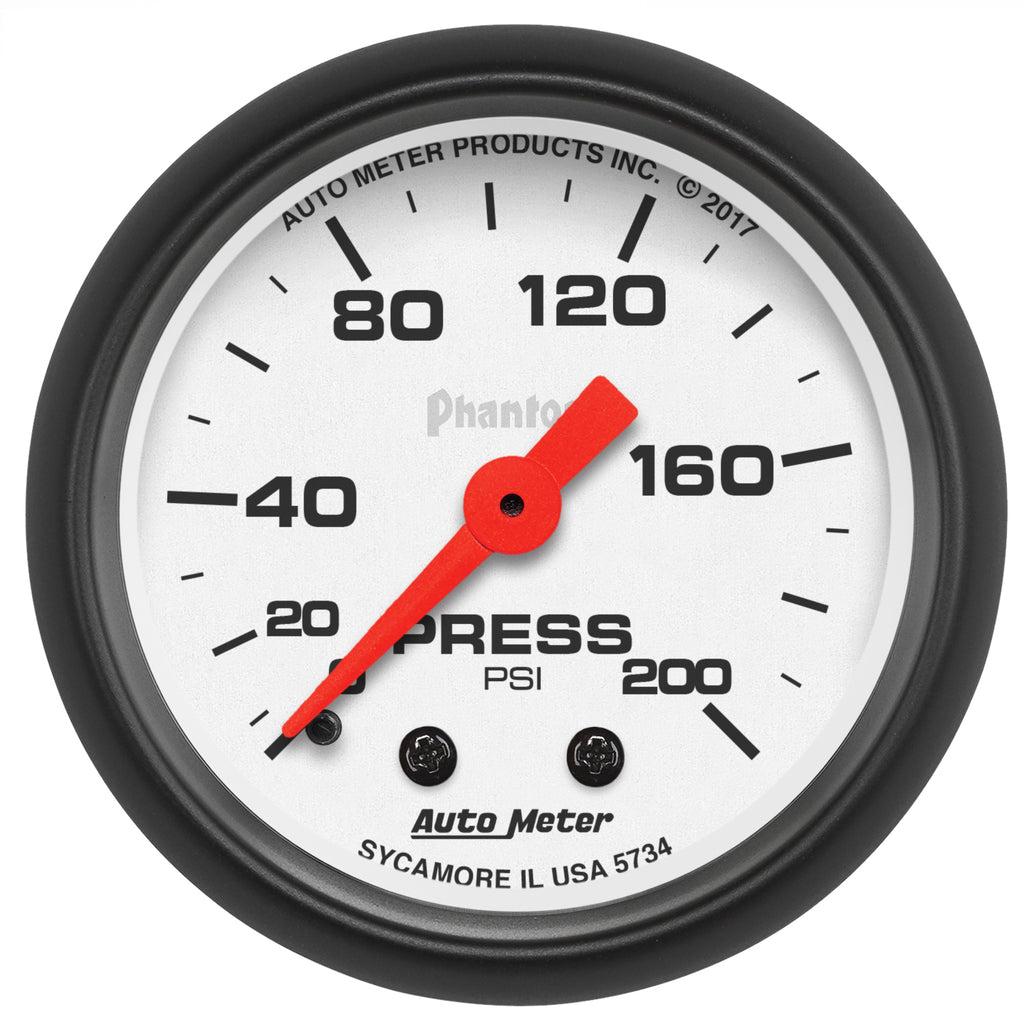

2-1/16" PRESSURE 0-200 PSI PHANTOM
2-1/16" PRESSURE 0-200 PSI PHANTOM
2-1/16" PRESSURE 0-200 PSI PHANTOM
2-1/16" PRESSURE 0-200 PSI PHANTOM

2-1/16" PRESSURE 0-200 PSI PHANTOM

  • Sale
  • $100.73
Whatever pressure source you need to measure, AutoMeter’s Mechanical Pressure Gauges will provide you a highly accurate, bullet proof reliable solution. The bourdon tube meter movement used in this gauge is engineered to function in even the harshest conditions and no electrical connection is needed for operation.
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
  • No electrical system required for gauge operation - compatible with every street or race vehicle
  • Mechanical movements provide accuracy and durability even in the harshest environments
  • Gauge kit includes 1/8” nylon line, 1/8” NPT compression fittings, 1/4” NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation

Attributes:

  • Brand Name: AutoMeter
  • GTIN: 00046074057342
  • Bezel Color: Black
  • Bezel Style: Super Bezel
  • Cross Sell: 3284, 3285, 3286, 3287, 3288, 2204
  • Cup/Hole Size - Metric - MM: 52.4mm
  • Cup/Hole Size - Standard - IN: 2-1/16"
  • Dial Color: White
  • Gauge Type: Pressure
  • Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing,
  • Includes Bulb & Socket: 3220
  • Includes Light Covers: Red 3214 & Green 3215
  • Includes Mounting Hardware: 2230
  • Includes Tubing: 10 ft. nylon tubing
  • Lens Style: Flat, Clear
  • Lighting Color: White Incandescent
  • Lighting Type: Incandescent
  • Movement: Mechanical
  • Outer Bezel Diameter: 2-1/4"
  • Outer Bezel Diameter - Standard: 2-1/16"
  • Pointer Color: Fluorescent Red
  • Range: 0-200 PSI
  • Related Item: 2160, BEX-1500, EP-800, 0424XL
  • Series: PHANTOM
  • Size - Metric - MM: 52.4mm
  • Size - Standard - IN: 2-1/16"
  • Upsell: 3284, 3285, 3286, 3287, 3288, 2204

Extended Information:

  • Country of Origin: US
  • Emissions : CARB Eligible

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 4.75 x 4.5 x 4.5 inches
  • Weight: 0.83 POUNDS
