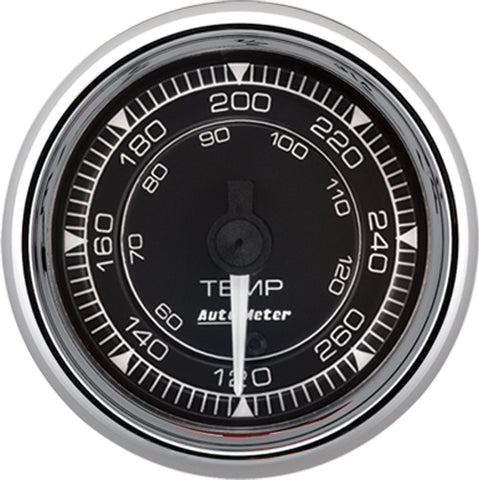

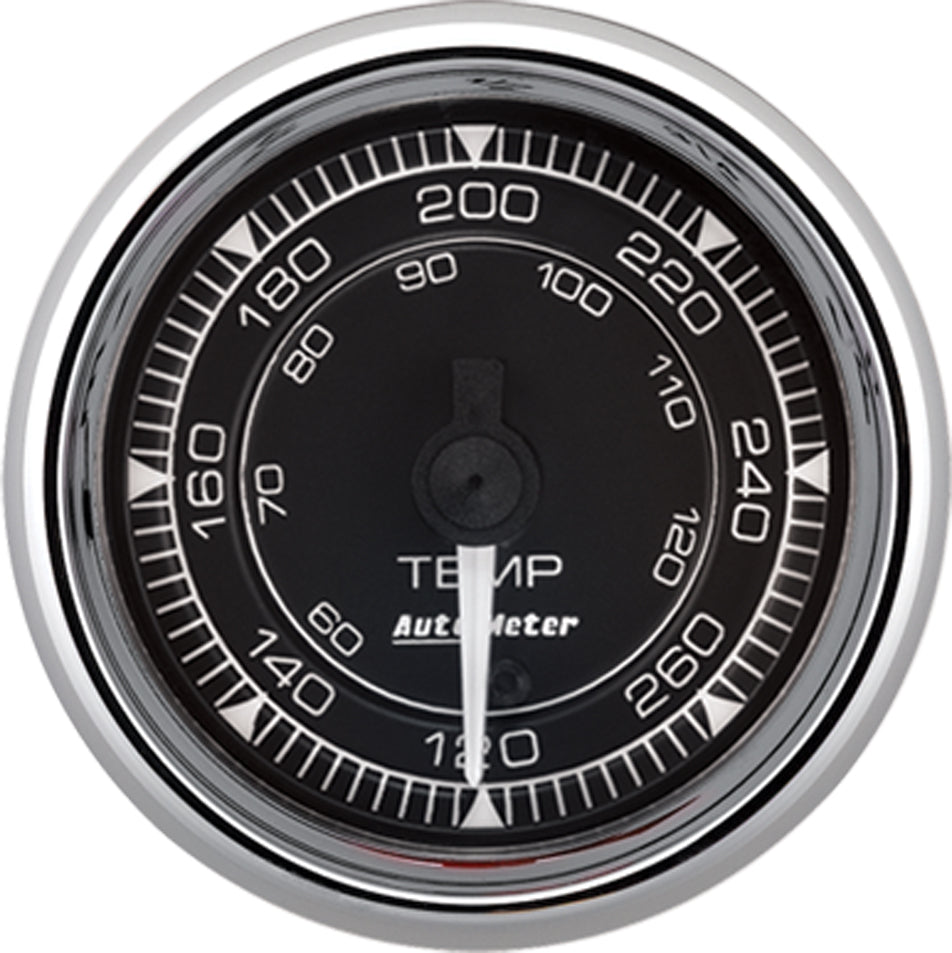

Engines don’t like high water temperatures, Heat is the enemy of performance and reliability. Keep tabs on your temps with the most accurate, quickest responding water temperature gauge on the market. AutoMeter’s advanced 1/8” NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation.
- Highly polished chrome bezel
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Unique three dimensional dial design gives added depth and style to your custom dash
- Over 320º of pointer movement adds dial scale and resolution, providing the most accurate reading in an analog dial
- Features metric and imperial scalings for easily relatable readings on applications around the world without the need for mental unit conversions
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
- Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074097546
- Bezel Color: Chrome
- Bezel Style: Super Bezel
- Cross Sell: 2277, 2278, 2280, 2281, 2282, 2283
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Black
- Gauge Type: Water Temperature
- Includes Adapter/Fitting: 3/8" NPT and 1/2" NPT adapter fittings
- Includes Mounting Hardware: 2230
- Includes Sensor Unit: 2252
- Includes Wire Harness: 5226
- Lens Style: Flat, Clear
- Lighting Color: White
- Lighting Type: LED
- Movement: Electric, Digital Stepper Motor
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: White
- Range: 120-280 ºF
- Related Item: 2160, BEX-5000, EP-800, 0423XL
- Series: CHRONO
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 2277, 2278, 2280, 2281, 2282, 2283
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.75 x 4.5 x 4.5 inches
- Weight: 1.1 POUNDS
