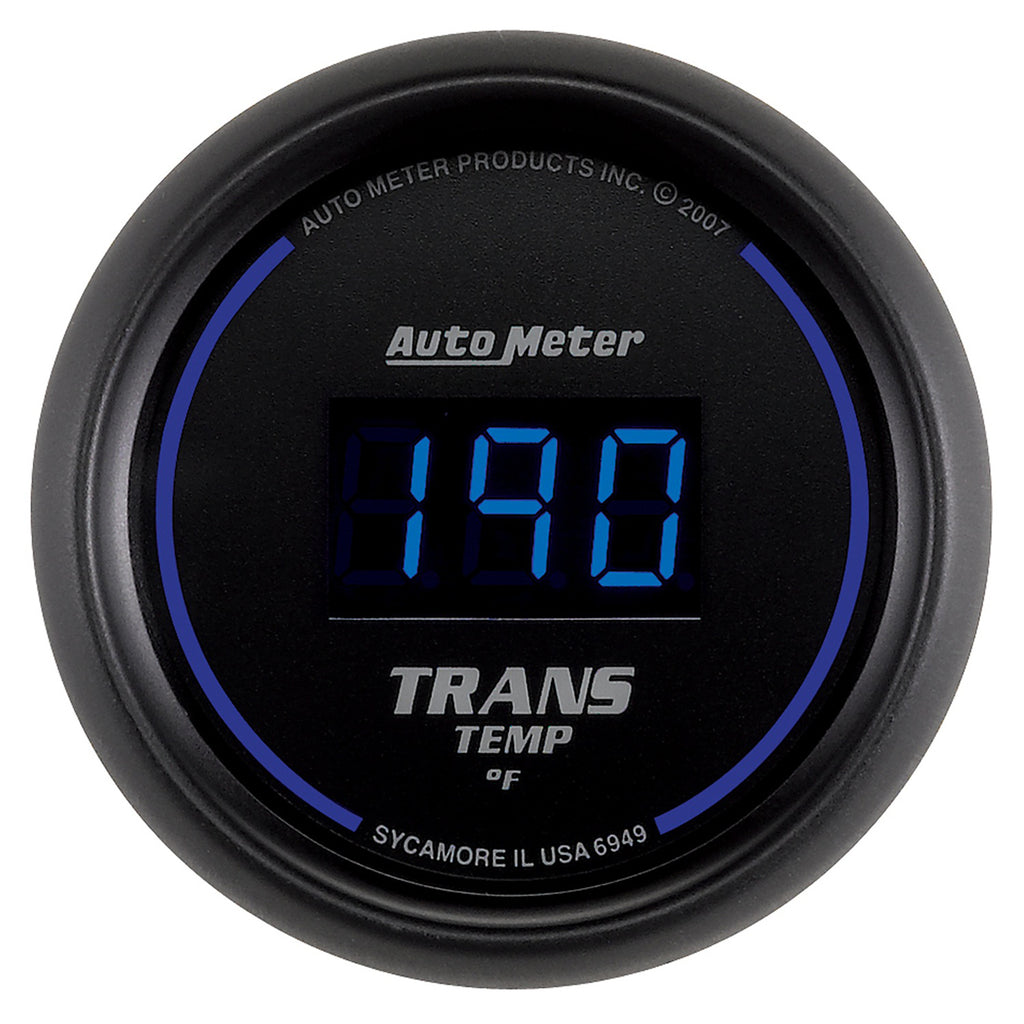

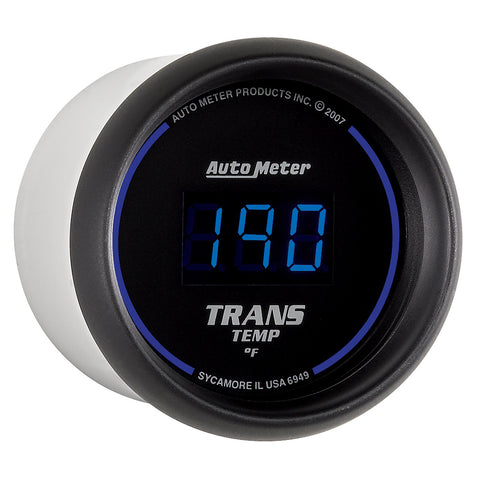

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor, AutoMeter’s Digital Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. AutoMeter’s most advanced 1/8” NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option.
- Features AutoMeter's E-Z View Digital LED Display System which maximizes readability and minimizes distracting high speed digit changes
- Includes data acquisition grade solid-state temperature sender, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074069499
- Bezel Color: Black
- Bezel Style: Super Bezel
- Cross Sell: 2260, 2286, 2287, 6945, 6970, 6937
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Black
- Gauge Type: Transmission Temperature
- Includes Adapter/Fitting: 3/8" NPT and 1/2" NPT adapter fittings
- Includes Mounting Hardware: 2230
- Includes Sensor Unit: 2252
- Includes Wire Harness: 5226
- Lens Style: Flat, Clear
- Lighting Color: Blue
- Lighting Type: Digital LED
- Movement: Digital
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Range: 0-340 °F
- Related Item: 2160, BEX-3000, EP-800
- Series: COBALT DIGITAL
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 2260, 2286, 2287, 6945, 6970, 6937
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.75 x 4.5 x 4.5 inches
- Weight: 0.65 POUNDS
