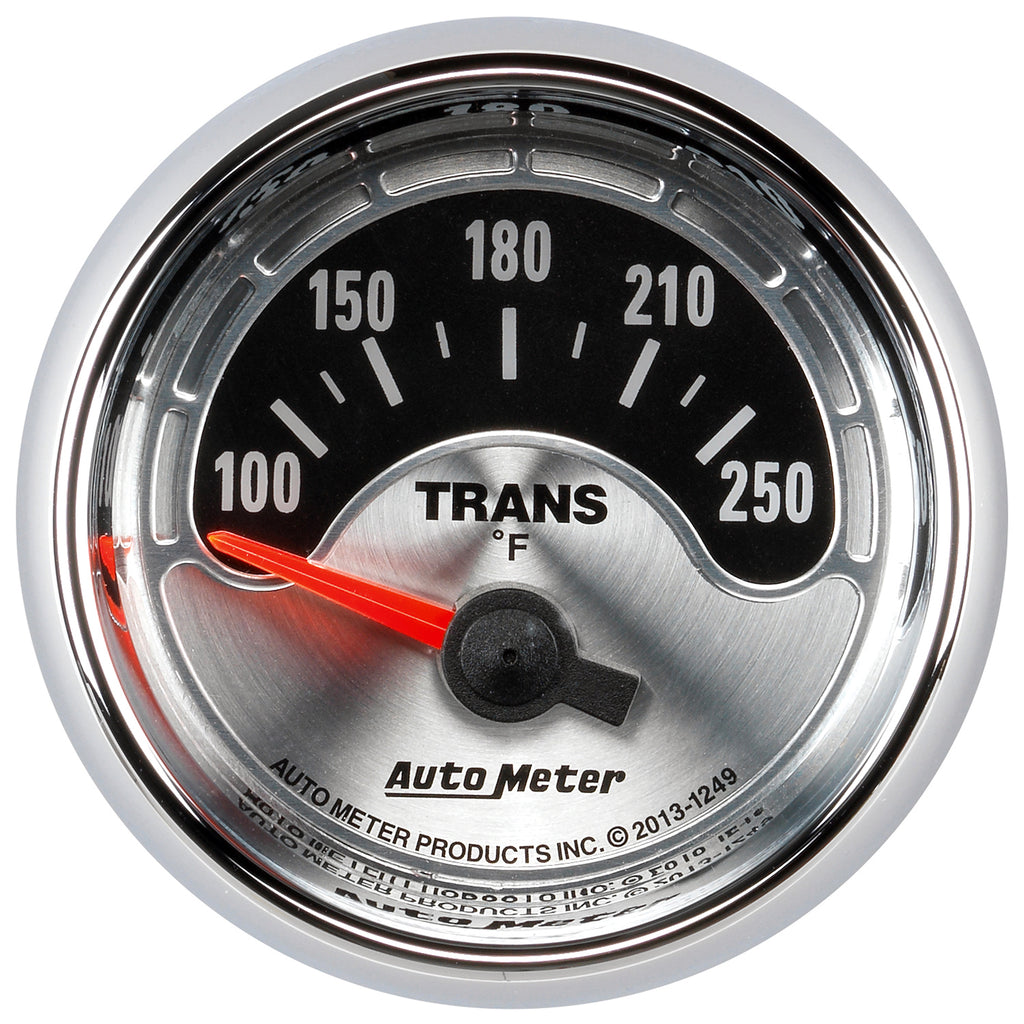

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor, AutoMeter’s Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8” NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.
- Highly polished chrome bezel
- Features Hi-Def™ through-the-dial white LED lighting

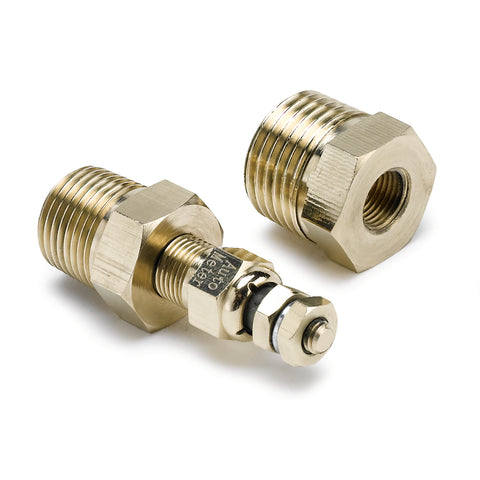

- Includes 1/8" NPT Sender and 3/8" NPT and 1/2" NPT adapter/fittings
- Features Air-Core meter movement
- Includes gauge mounting hardware and installation instructions
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074012495
- Bezel Color: Chrome
- Bezel Style: Super Bezel
- Cross Sell: 2286, 2287, 3298, 2259, 9114, 2260
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Silver
- Gauge Type: Transmission Temperature
- Includes Adapter/Fitting: 3/8" NPT and 1/2" NPT adapter fittings
- Includes Mounting Hardware: 2230
- Includes Sensor Unit: 2258
- Lens Style: Flat, Clear
- Lighting Color: White
- Lighting Type: LED
- Movement: Electric, Air-Core
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: Fluorescent Red
- Range: 100-250 °F
- Related Item: 2160, BEX-3000, EP-800, 0423XL
- Series: AMERICAN MUSCLE
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 2286, 2287, 3298, 2259, 9114, 2260
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.75 x 4.5 x 4.5 inches
- Weight: 0.6 POUNDS
