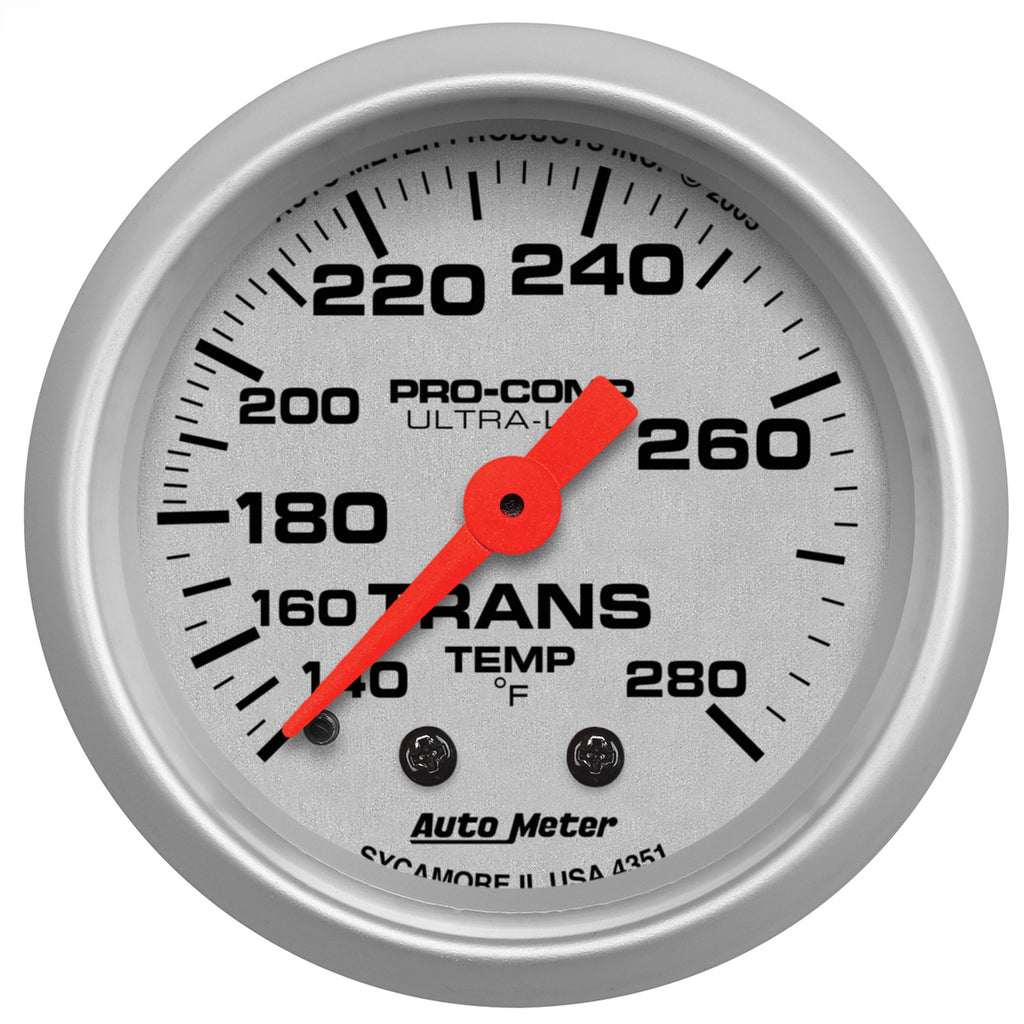

2-1/16" TRANSMISSION TEMPERATURE 140-280 °F ULTRA-LITE
2-1/16" TRANSMISSION TEMPERATURE 140-280 °F ULTRA-LITE
2-1/16" TRANSMISSION TEMPERATURE 140-280 °F ULTRA-LITE
2-1/16" TRANSMISSION TEMPERATURE 140-280 °F ULTRA-LITE

2-1/16" TRANSMISSION TEMPERATURE 140-280 °F ULTRA-LITE

  • Sale
  • $148.49
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor, AutoMeter’s Mechanical Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. An 8’ Capillary Tube with a 1/2” NPT mounting nut is included to be installed in your transmission pan. An optional trans cooler line manifold is available for another easy installation option.
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
  • No electrical system required for gauge operation - compatible with every street or race vehicle
  • Mechanical movements provide accuracy and durability even in the harshest environments
  • Gauge kit includes 1/2" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation

Attributes:

  • Brand Name: AutoMeter
  • GTIN: 00046074043512
  • Bezel Color: Brushed Aluminum
  • Bezel Style: Super Bezel
  • Cross Sell: 2261, 2286, 2287, 2204, 2236, 3288
  • Cup/Hole Size - Metric - MM: 52.4mm
  • Cup/Hole Size - Standard - IN: 2-1/16"
  • Dial Color: Silver
  • Gauge Type: Transmission Temperature
  • Includes Adapter/Fitting: 1/2"" NPT adapter/fitting.
  • Includes Bulb & Socket: 3220
  • Includes Light Covers: Red 3214 & Green 3215
  • Includes Mounting Hardware: 2230
  • Includes Tubing: 10.5 ft. Capillary Tube
  • Lens Style: Flat, Clear
  • Lighting Color: White Incandescent
  • Lighting Type: Incandescent
  • Movement: Mechanical
  • Outer Bezel Diameter: 2-1/4"
  • Outer Bezel Diameter - Standard: 2-1/16"
  • Pointer Color: Fluorescent Red
  • Range: 140-280 °F
  • Related Item: 2160, BEX-1500, EP-800, 0424XL, 0449XL, 0447LXL
  • Series: ULTRA-LITE
  • Size - Metric - MM: 52.4mm
  • Size - Standard - IN: 2-1/16"
  • Upsell: 2261, 2286, 2287, 2204, 2236, 3288

Extended Information:

  • Country of Origin: US
  • Emissions : CARB Eligible

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 6.25 x 6 x 6.25 inches
  • Weight: 1.15 POUNDS
