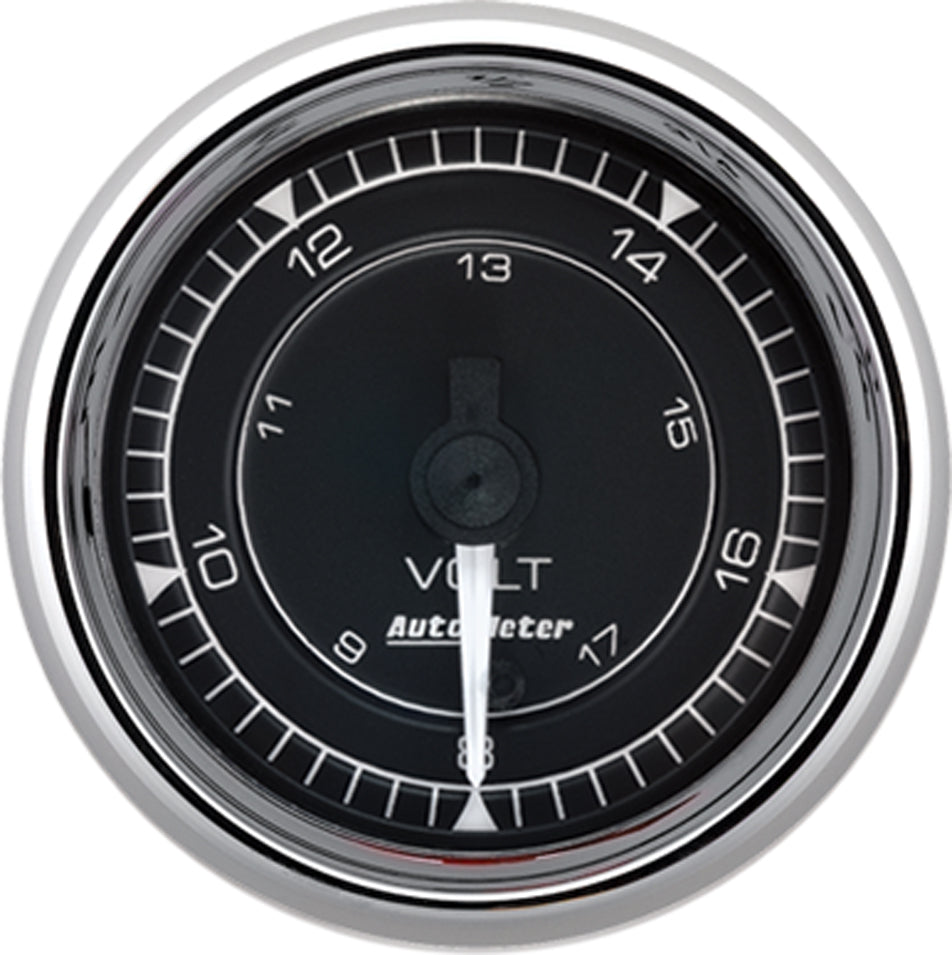

Keep tabs on the health and output of your vehicles electrical system safely and accurately with AutoMeter’s ultra precise Digital Stepper Motor Voltmeter. With precise resolution and ultra smooth needle movement, this gauge operates anywhere from 8-18 volts on negative ground electrical systems. A direct plug in wiring harnesses included for ease of installation.
- Highly polished chrome bezel
- Unique three dimensional dial design gives added depth and style to your custom dash
- Over 320º of pointer movement adds dial scale and resolution, providing the most accurate reading in an analog dial
- Features metric and imperial scalings for easily relatable readings on applications around the world without the need for mental unit conversions
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Gauge kit includes wiring harness, mounting hardware, and detailed instructions for installation
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074097911
- Bezel Color: Chrome
- Bezel Style: Super Bezel
- Cross Sell: 9753, 9754, 9740, 9797, 9710, 9788
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Black
- Gauge Type: Voltmeter
- Includes Mounting Hardware: 2230
- Includes Wire Harness: 5234
- Lens Style: Flat, Clear
- Lighting Color: White
- Lighting Type: LED
- Movement: Electric, Digital Stepper Motor
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: White
- Range: 8-18V
- Related Item: 2160, BEX-5000, EP-800, 0423XL
- Series: CHRONO
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 9753, 9754, 9740, 9797, 9710, 9788
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.75 x 4.5 x 4.5 inches
- Weight: 0.7 POUNDS
PDF:
