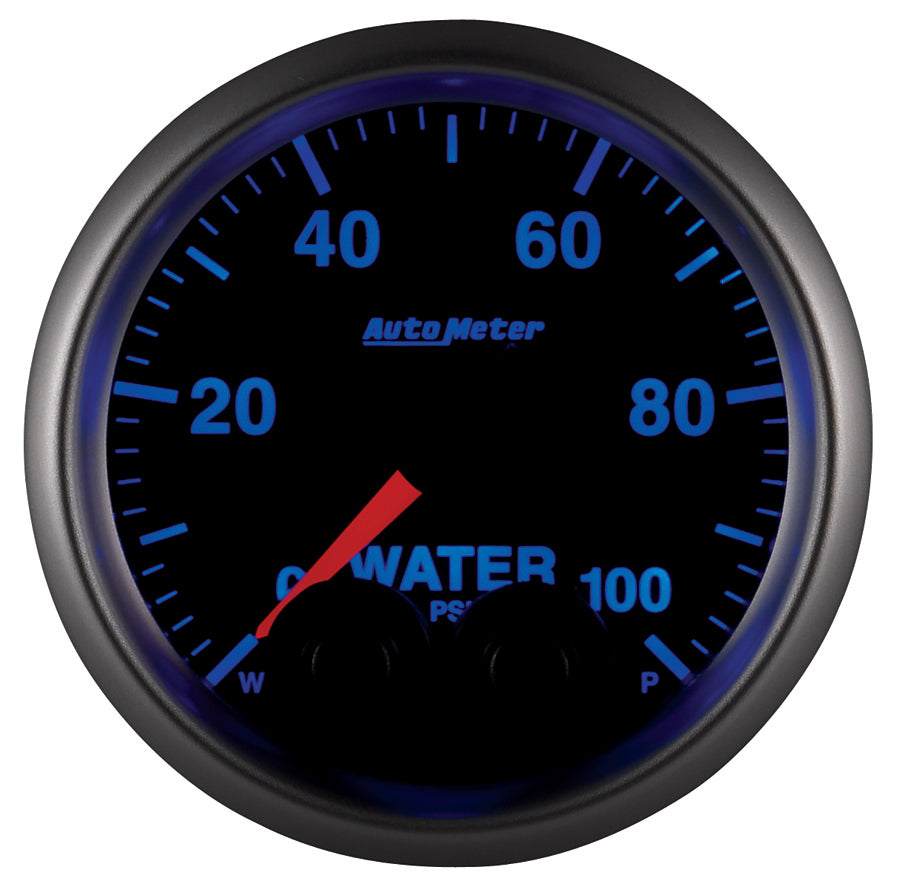

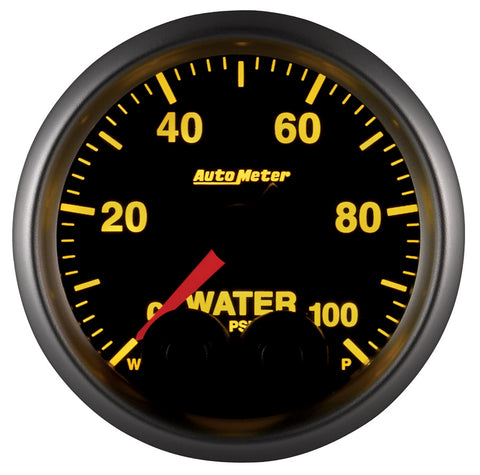

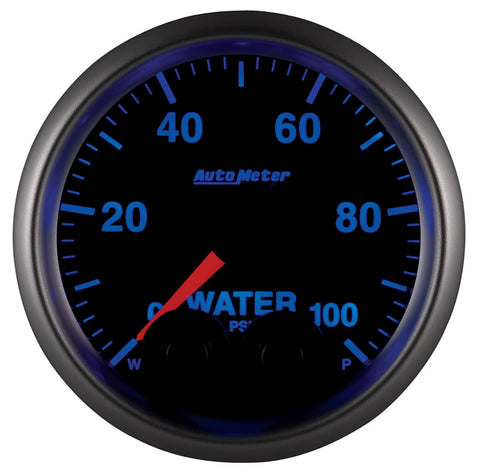

From high banked ovals to Saturday night 1/4 miles, knowing that you've got proper cooling system pressure is critical in any severe service application. AutoMeter's Digital Stepper Motor Water Pressure Gauge utilizes the most advanced technology on the market to deliver accuracy and durability you won't find anywhere else. Our advanced 1/8Ó NPT solid state pressure transducer (included) provides the best possible measurements with unparalleled resistance to vibration and heat. A direct plug in wiring harness is also included for ease of installation and data logging is available thanks to a .5 - 4.5v analog output.
- 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
- Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions like lights, fans, switches, & pumps allow drivers to focus on the competition while the gauges control key vehicle systems
- Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
- Acquire data for later review with one-touch Peak Recall functionality
- Data logger 0-5V output provides ECU and data systems with vital information
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074056680
- Bezel Color: Brushed Aluminum
- Bezel Style: Super Bezel
- Cross Sell: 2277, 2278, 2280, 2281, 2282, 2283
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Black
- Gauge Type: Water Pressure
- Includes Adapter/Fitting: 3/8" NPT and 1/2" NPT adapter fittings
- Includes Mounting Hardware: 2230
- Includes Sensor Unit: 2246
- Includes Wire Harness: 5275
- Lens Style: Flat, Clear
- Lighting Color: 7 User Selectable Colors
- Lighting Type: LED
- Movement: Electric, Digital Stepper Motor
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: Fluorescent Red
- Range: 0-100 PSI
- Related Item: 2163, BEX-5000, EP-800, 0424XL
- Series: ELITE
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 2277, 2278, 2280, 2281, 2282, 2283
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.75 x 4.5 x 4.5 inches
- Weight: 1 POUNDS
