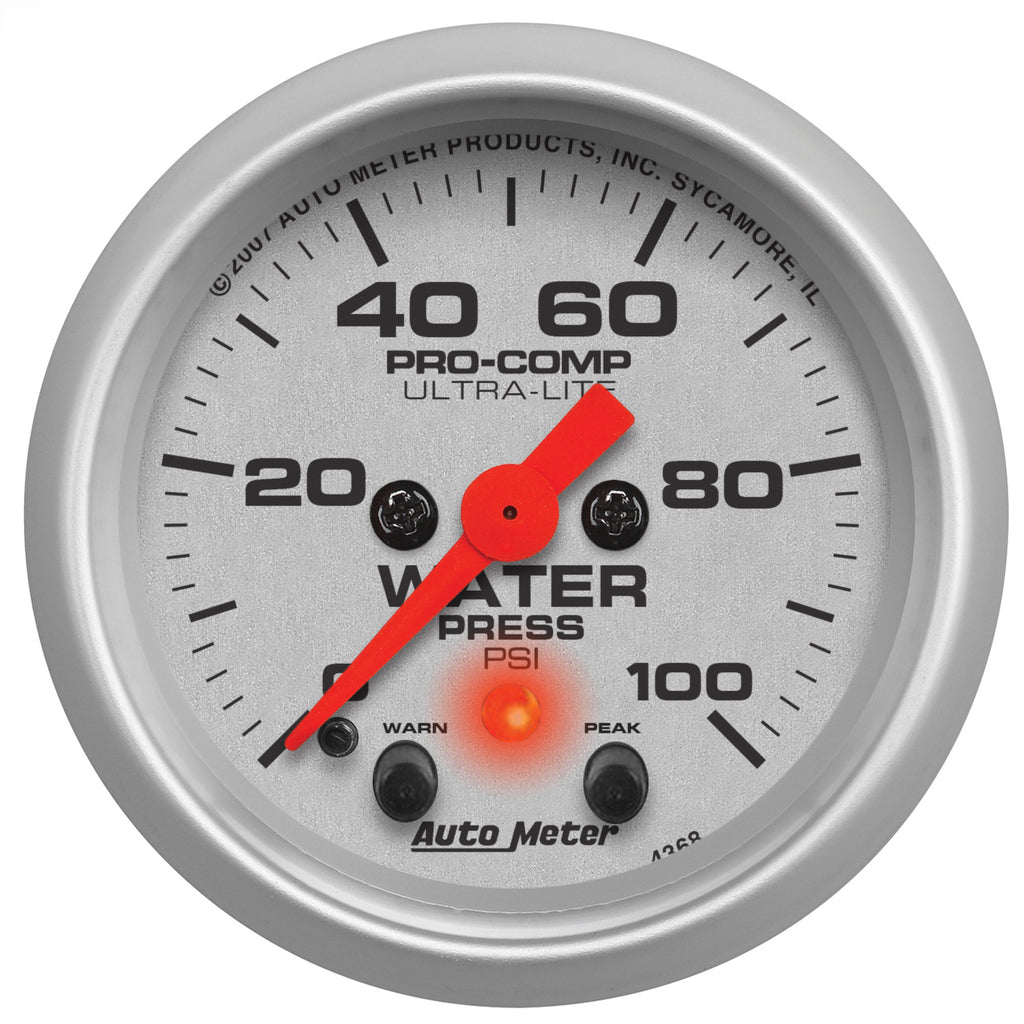

From high banked ovals to Saturday night 1/4 miles, knowing that you’ve got proper cooling system pressure is critical in any severe service application. AutoMeter’s Digital Stepper Motor Water Pressure Gauge utilizes the most advanced technology on the market to deliver accuracy and durability you won’t find anywhere else. Our advanced 1/8” NPT solid state pressure transducer (included) provides the best possible measurements with unparalleled resistance to vibration and heat. A direct plug in wiring harness is also included for ease of installation and data logging is available thanks to a .5 - 4.5v analog output.
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Gauge kit includes 1/8” NPT stainless steel pressure transducer, wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Acquire data for later review with one-touch Peak Recall functionality
- Set a custom alert specific to your vehicle & receive warning notification to highlight the need for driver attention
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074043680
- Bezel Color: Brushed Aluminum
- Bezel Style: Super Bezel
- Cross Sell: 3288, 3285, 3286, 4354, 4352, 4340
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Silver
- Gauge Type: Water Pressure
- Includes Adapter/Fitting: 3/8" NPT and 1/2" NPT adapter fittings
- Includes Bulb & Socket: 3220
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: 2230
- Includes Sensor Unit: 2246
- Includes Wire Harness: 5227
- Lens Style: Flat, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Movement: Electric, Digital Stepper Motor
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: Fluorescent Red
- Range: 0-100 PSI
- Related Item: 2160, BEX-1500, EP-800, 0424XL, 0449XL, 0447LXL
- Series: ULTRA-LITE
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 3288, 3285, 3286, 4354, 4352, 4340
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.75 x 4.5 x 4.5 inches
- Weight: 1.15 POUNDS
