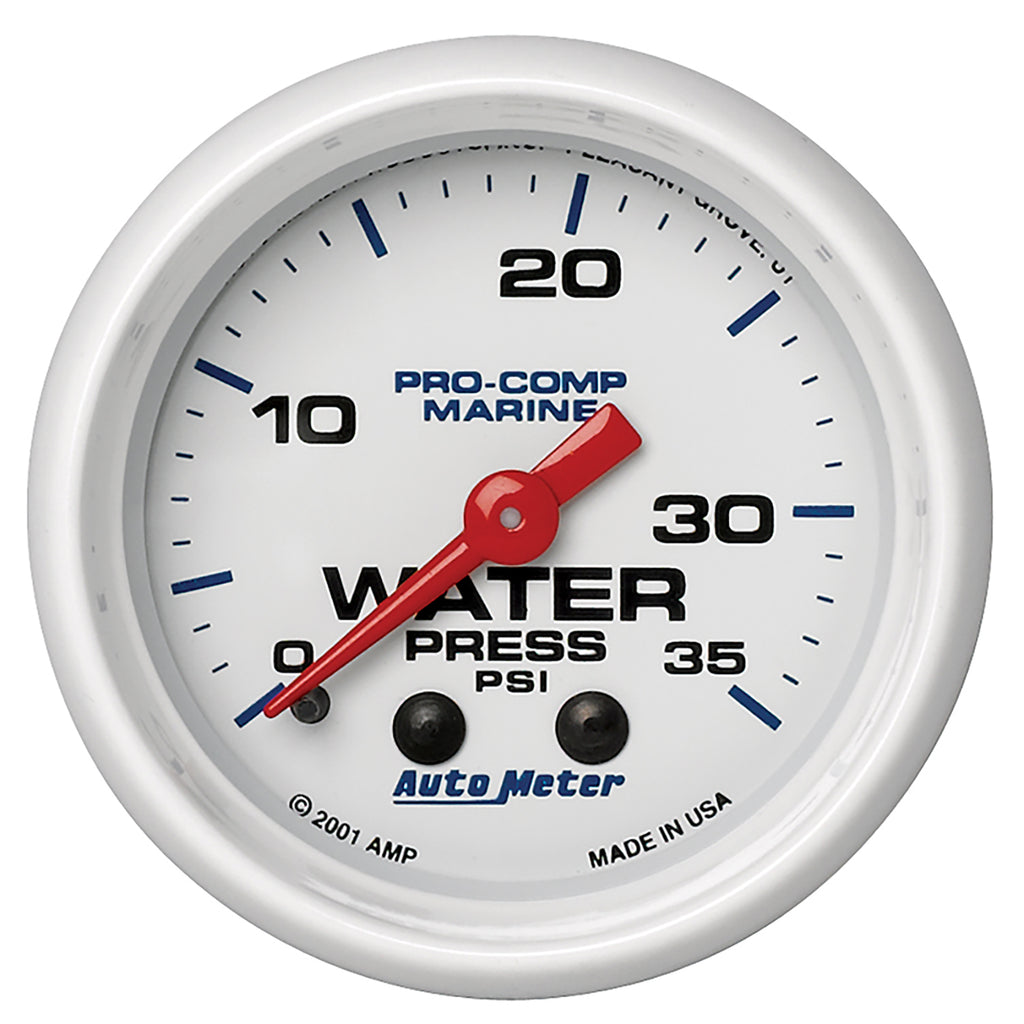

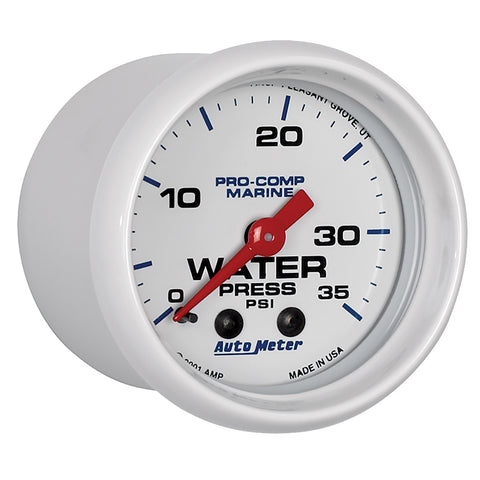

From high banked ovals to Saturday night 1/4 miles to high-performance boats, knowing that you’ve got proper cooling system pressure is critical in any application. AutoMeter’s Mechanical Water Pressure Gauge utilizes the most precise bourdon tube meter movement on the market to deliver accuracy and durability you won’t find anywhere else. An 1/8” NPT connection on the back makes for easy installation and nylon lines and fittings are available separately.
- Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
- Requires AutoMeter 3223 nylon tubing kit (10 ft.) to connect from gauge to pressure source (sold separately) - Marine parts distributors may also offer their own tubing solutions
- Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
- 12 month limited warranty
- Traditional incandescent lighting illuminates around the perimeter of the dial
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074120954
- Bezel Color: White
- Bezel Style: Super Bezel
- Cross Sell: 3224, 3223, 3226, 3288, 3284
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: White
- Gauge Type: Water Pressure
- Includes Bulb & Socket: 3220
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: 2225
- Lens Style: Flat, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Movement: Mechanical
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: Fluorescent Red
- Range: 0-35 PSI
- Related Item: BEX-5000, 0447LXL, EP-800, 0423XL
- Series: MARINE WHITE
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 3224, 3223, 3226, 3288, 3284
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.75 x 4.5 x 4.5 inches
- Weight: 0.5 POUNDS
