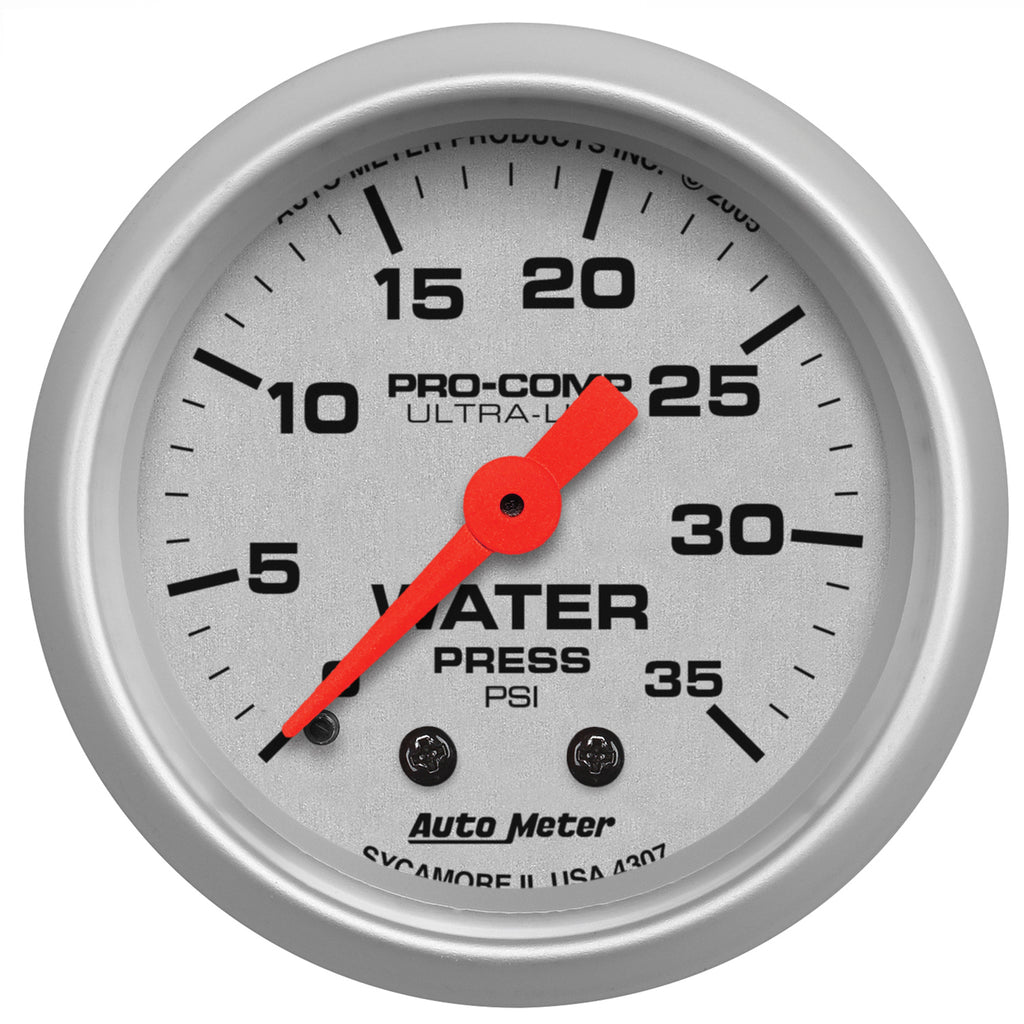

2-1/16" WATER PRESSURE 0-35 PSI ULTRA-LITE
2-1/16" WATER PRESSURE 0-35 PSI ULTRA-LITE
2-1/16" WATER PRESSURE 0-35 PSI ULTRA-LITE
2-1/16" WATER PRESSURE 0-35 PSI ULTRA-LITE

2-1/16" WATER PRESSURE 0-35 PSI ULTRA-LITE

  • Sale
  • $102.91
From high banked ovals to Saturday night 1/4 miles, knowing that you’ve got proper cooling system pressure is critical in any severe service application. AutoMeter’s Mechanical Water Pressure Gauge utilizes the most precise bourdon tube meter movement on the market to deliver accuracy and durability you won’t find anywhere else. An 1/8” NPT connection on the back makes for easy installation and nylon line and fittings are included.
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
  • No electrical system required for gauge operation - compatible with every street or race vehicle
  • Mechanical movements provide accuracy and durability even in the harshest environments
  • Gauge kit includes 1/8” nylon line, 1/8” NPT compression fittings, 1/4” NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation

Attributes:

  • Brand Name: AutoMeter
  • GTIN: 00046074043079
  • Bezel Color: Brushed Aluminum
  • Bezel Style: Super Bezel
  • Cross Sell: 3226, 3228, 2204, 3288, 3286, 4332
  • Cup/Hole Size - Metric - MM: 52.4mm
  • Cup/Hole Size - Standard - IN: 2-1/16"
  • Dial Color: Silver
  • Gauge Type: Water Pressure
  • Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing
  • Includes Bulb & Socket: 3220
  • Includes Light Covers: Red 3214 & Green 3215
  • Includes Mounting Hardware: 2230
  • Includes Tubing: 10 ft. nylon tubing
  • Lens Style: Flat, Clear
  • Lighting Color: White Incandescent
  • Lighting Type: Incandescent
  • Movement: Mechanical
  • Outer Bezel Diameter: 2-1/4"
  • Outer Bezel Diameter - Standard: 2-1/16"
  • Pointer Color: Fluorescent Red
  • Range: 0-35 PSI
  • Related Item: 2160, BEX-1500, EP-800, 0424XL, 0449XL, 0447LXL
  • Series: ULTRA-LITE
  • Size - Metric - MM: 52.4mm
  • Size - Standard - IN: 2-1/16"
  • Upsell: 3226, 3228, 2204, 3288, 3286, 4332

Extended Information:

  • Country of Origin: US
  • Emissions : CARB Eligible

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 4.75 x 4.5 x 4.5 inches
  • Weight: 0.6 POUNDS
