Engines don’t like high water temperatures, Heat is the enemy of performance and reliability. Keep tabs on your temps with the most accurate, quickest responding water temperature gauge on the market. AutoMeter’s advanced 1/8” NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation.

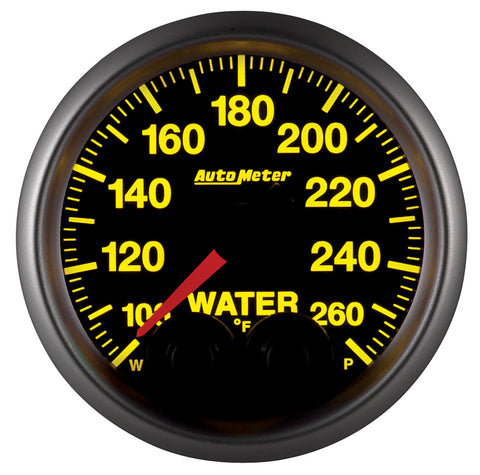

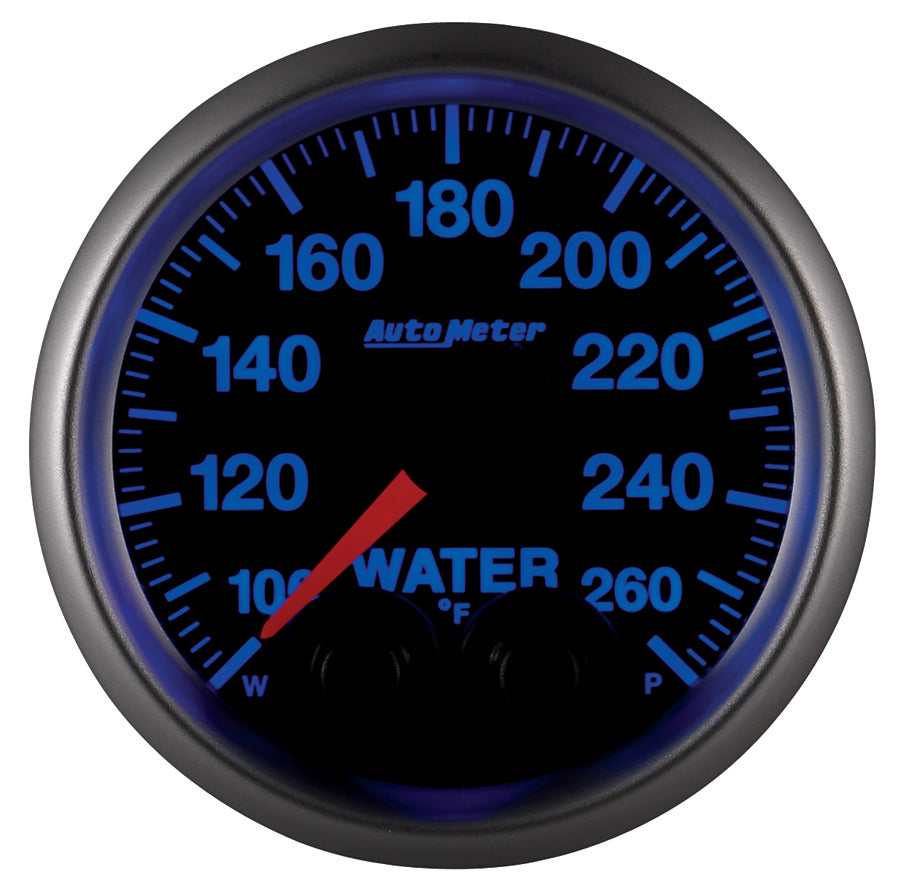

- 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
- resulting in a higher incidence of temperature soak at the sensor. The employed compensation allows for a higher degree of accuracy and precision in the displayed fluid temperature readings at race speeds.
- This specialty variant gauge is NASCAR approved and eliminates the Pro-Control output and wiring present on the standard production Elite series model
- Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
- Acquire data for later review with one-touch Peak Recall functionality
- Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- This temperature gauge utilizies specialty calibration not found in the standard Elite model which has been optimized for use on applications with very hot engine compartments with little airflow
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074142222
- Bezel Color: Brushed Aluminum
- Bezel Style: Super Bezel
- Cross Sell: 5276, 2252, 5652-05702-A, 5660-05702-A, 5639-05702-D, 6847-05705
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Black
- Gauge Type: Water Temperature
- Includes Adapter/Fitting: 3/8" NPT and 1/2" NPT adapter fittings
- Includes Mounting Hardware: 2230
- Includes Sensor Unit: 2252
- Lens Style: Flat, Clear
- Lighting Color: 20 User Selectable Colors
- Lighting Type: LED
- Movement: Electric, Digital Stepper Motor
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: Fluorescent Red
- Range: 100-260 °F
- Related Item: 2163, BEX-5000, EP-800, 0423XL, 0424XL
- Series: ELITE - NASCAR
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 5276, 2252, 5652-05702-A, 5660-05702-A, 5639-05702-D, 6847-05705
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.75 x 4.25 x 4.25 inches
- Weight: 0.8 POUNDS
