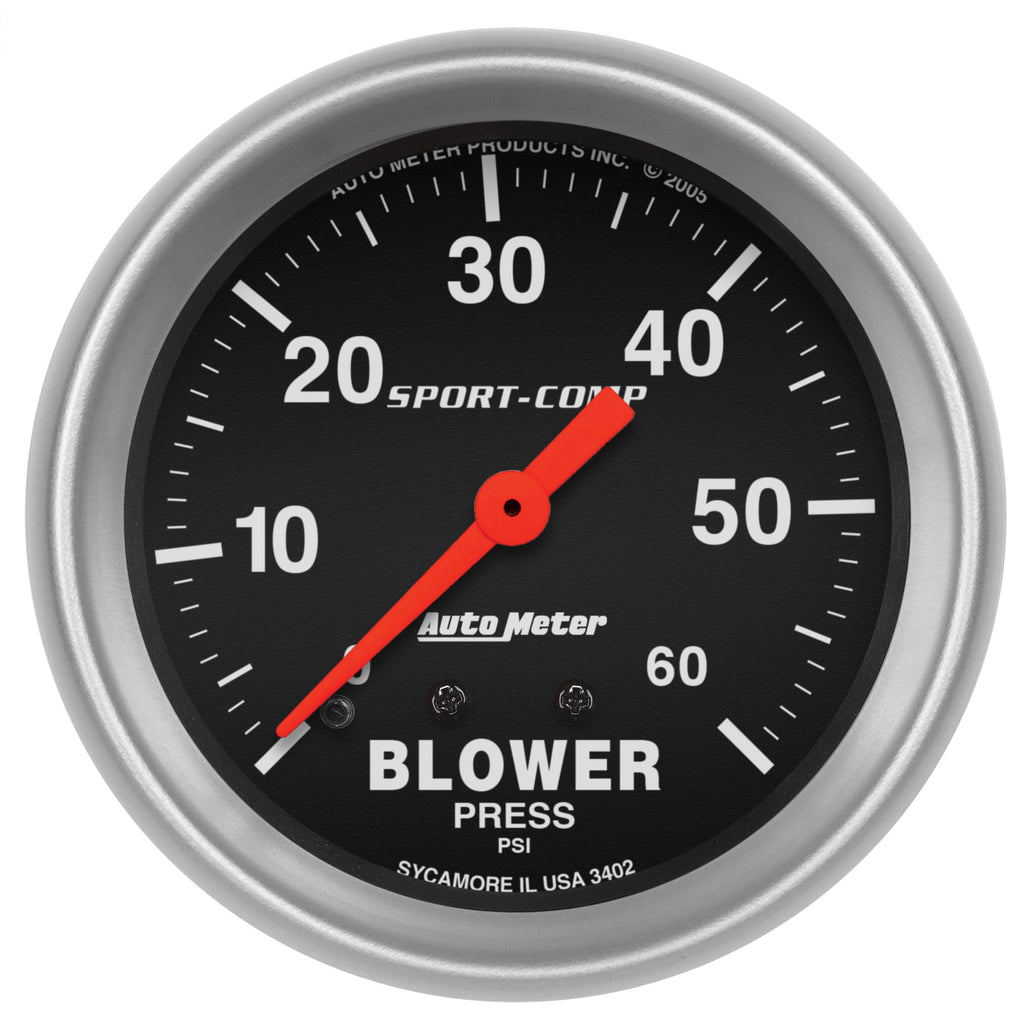

Know your exact blower pressure with AutoMeter’s ultra-precise bourdon tube meter movement, the standard for accuracy and durability in the industry for generations. A simple 1/8” NPT pressure connection requires no electrical hookup for operation. An optional blower memory kit provides a one way check valve for peak recall after your run.
- Traditional incandescent lighting illuminates around the perimeter of the dial
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Mechanical movements provide accuracy and durability even in the harshest environments
- Gauge kit includes 1/8” nylon line, 1/8” NPT compression fittings, 1/4” NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074034022
- Bezel Color: Brushed Aluminum
- Bezel Style: Super Bezel
- Cross Sell: 3224, 3227, 3228, 3229, 3226
- Cup/Hole Size - Metric - MM: 66.7mm
- Cup/Hole Size - Standard - IN: 2-5/8"
- Dial Color: Black
- Gauge Type: Blower Pressure
- Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
- Includes Bulb & Socket: 3220
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: 3245
- Includes Tubing: 10 ft. nylon tubing
- Lens Style: Flat, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Movement: Mechanical
- Outer Bezel Diameter: 2-7/8"
- Outer Bezel Diameter - Standard: 2-5/8"
- Pointer Color: Fluorescent Red
- Range: 0-60 PSI
- Related Item: 2160, BEX-1500, EP-800, 0423XL, 0424XL
- Series: SPORT-COMP
- Size - Metric - MM: 66.7mm
- Size - Standard - IN: 2-5/8"
- Upsell: 3224, 3227, 3228, 3229, 3226
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.5 x 4.5 x 4.5 inches
- Weight: 0.83 POUNDS
