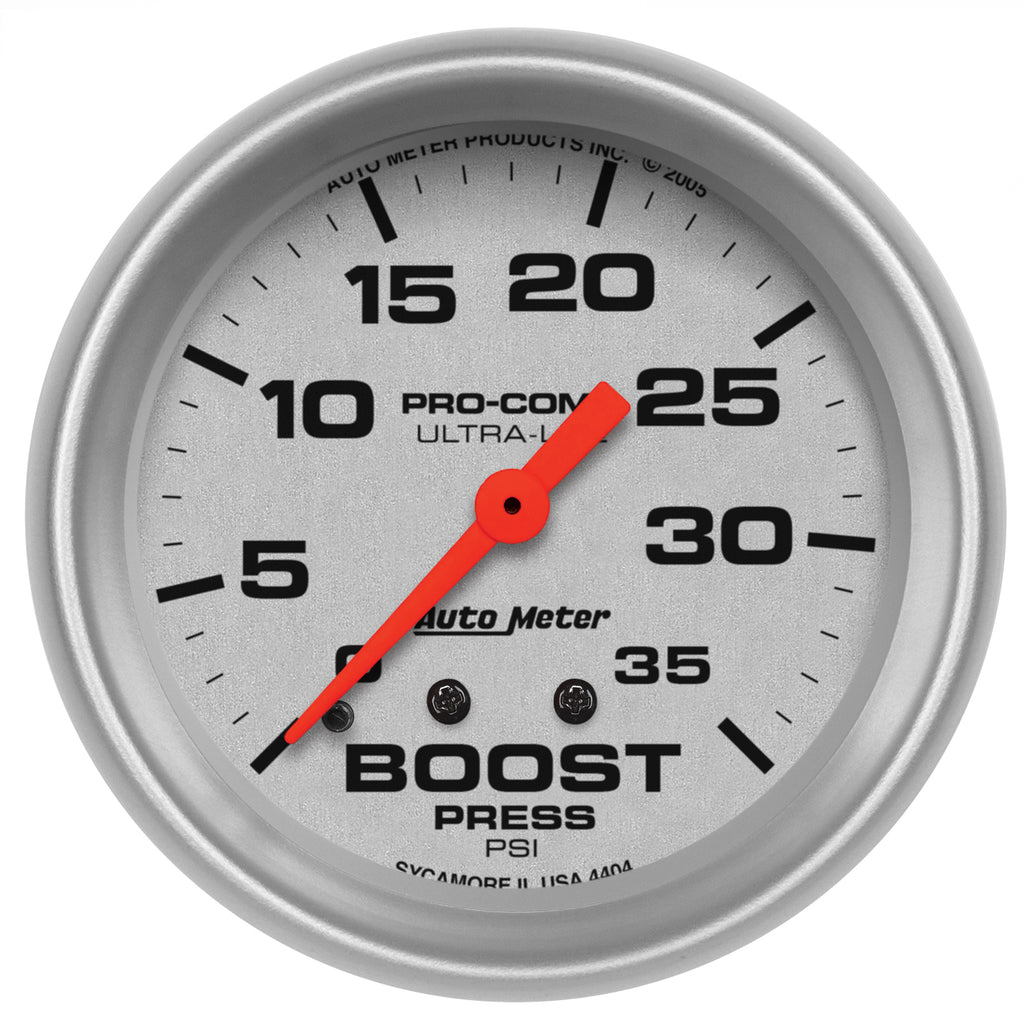

2-5/8" BOOST 0-35 PSI ULTRA-LITE
2-5/8" BOOST 0-35 PSI ULTRA-LITE
2-5/8" BOOST 0-35 PSI ULTRA-LITE
2-5/8" BOOST 0-35 PSI ULTRA-LITE

2-5/8" BOOST 0-35 PSI ULTRA-LITE

  • Sale
  • $128.00
Mechanical boost gauges have become the staple in boost pressure monitoring for all types of engines, gasoline, diesel, or otherwise. Ultra-precise bourdon tube meter movement ensures accuracy and durability not seen anywhere else in the industry. A simple 1/8” NPT pressure connection requires no electrical hookup for operation. Includes 1/8” NPT fittings and nylon line kit.
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
  • No electrical system required for gauge operation - compatible with every street or race vehicle
  • Mechanical movements provide accuracy and durability even in the harshest environments
  • Gauge kit includes 1/8” nylon line, 1/8” NPT compression fittings, 1/4” NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation

Attributes:

  • Brand Name: AutoMeter
  • GTIN: 00046074044045
  • Bezel Color: Brushed Aluminum
  • Bezel Style: Super Bezel
  • Cross Sell: 3226, 3228, 3288, 3286, 3295, 3204
  • Cup/Hole Size - Metric - MM: 66.7mm
  • Cup/Hole Size - Standard - IN: 2-5/8"
  • Dial Color: Silver
  • Gauge Type: Boost
  • Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing
  • Includes Bulb & Socket: 3220
  • Includes Light Covers: Red 3214 & Green 3215
  • Includes Mounting Hardware: 3245
  • Includes Tubing: 10 ft. nylon tubing
  • Lens Style: Flat, Clear
  • Lighting Color: White Incandescent
  • Lighting Type: Incandescent
  • Movement: Mechanical
  • Outer Bezel Diameter: 2-7/8"
  • Outer Bezel Diameter - Standard: 2-5/8"
  • Pointer Color: Fluorescent Red
  • Range: 0-35 PSI
  • Related Item: 2160, BEX-1500, EP-800, 0424XL, 0449XL, 0447LXL
  • Series: ULTRA-LITE
  • Size - Metric - MM: 66.7mm
  • Size - Standard - IN: 2-5/8"
  • Upsell: 3226, 3228, 3288, 3286, 3295, 3204

Extended Information:

  • Country of Origin: US
  • Emissions : CARB Eligible

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 4.5 x 4.5 x 4.5 inches
  • Weight: 0.74 POUNDS
