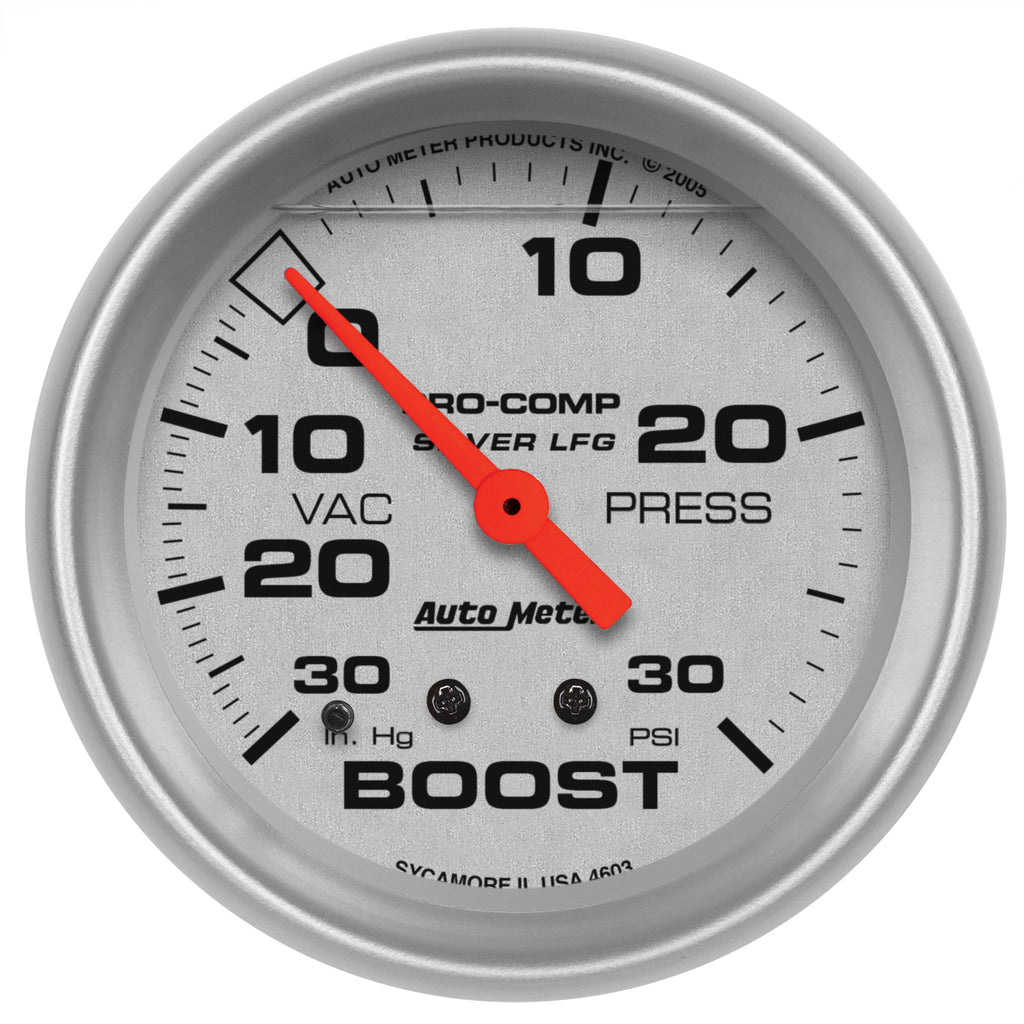

2-5/8" BOOST/VACUUM 30 IN HG/30 PSI LIQUID FILLED ULTRA-LITE
2-5/8" BOOST/VACUUM 30 IN HG/30 PSI LIQUID FILLED ULTRA-LITE
2-5/8" BOOST/VACUUM 30 IN HG/30 PSI LIQUID FILLED ULTRA-LITE
2-5/8" BOOST/VACUUM 30 IN HG/30 PSI LIQUID FILLED ULTRA-LITE

2-5/8" BOOST/VACUUM 30 IN HG/30 PSI LIQUID FILLED ULTRA-LITE

  • Sale
  • $147.70
The standard in the industry, AutoMeter’s Mechanical Boost/Vac Gauges have found their way into more builds than any other. Using a patented, high precision bourdon tube meter movement, there isn’t another gauge on the market that can lay claim to the levels of accuracy or durability you’ll find here. A simple 1/8” NPT pressure connection requires no electrical hookup for operation. Includes 1/8” NPT fittings and nylon line kit.
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
  • Liquid filled design for superior resistance to shock, vibration, and the elements.
  • AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
  • No electrical system required for gauge operation - compatible with every street or race vehicle
  • Gauge kit includes 1/8” nylon line, T-Fitting, vacuum fitting, compression fittings, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation

Attributes:

  • Brand Name: AutoMeter
  • GTIN: 00046074046032
  • Bezel Color: Brushed Aluminum
  • Bezel Style: Super Bezel
  • Cross Sell: 3226, 3227, 3228, 3229, 5202, 3288
  • Cup/Hole Size - Metric - MM: 66.7mm
  • Cup/Hole Size - Standard - IN: 2-5/8"
  • Dial Color: Silver
  • Gauge Type: Boost/Vacuum
  • Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
  • Includes Bulb & Socket: 3211
  • Includes Light Covers: Red 3214 & Green 3215
  • Includes Mounting Hardware: 3245
  • Includes Tubing: 10 ft. nylon tubing
  • Lens Style: Flat, Clear
  • Lighting Color: White Incandescent
  • Lighting Type: Incandescent
  • Movement: Mechanical
  • Outer Bezel Diameter: 2-7/8"
  • Outer Bezel Diameter - Standard: 2-5/8"
  • Pointer Color: Fluorescent Red
  • Range: 30 IN HG/30 PSI
  • Related Item: 2163, BEX-5000, EP-800, 0424XL, 0449XL, 0447LXL
  • Series: ULTRA-LITE
  • Size - Metric - MM: 66.7mm
  • Size - Standard - IN: 2-5/8"
  • Upsell: 3226, 3227, 3228, 3229, 5202, 3288

Extended Information:

  • Country of Origin: US
  • Emissions : 1

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 4.5 x 4.5 x 4.5 inches
  • Weight: 1.1 POUNDS
