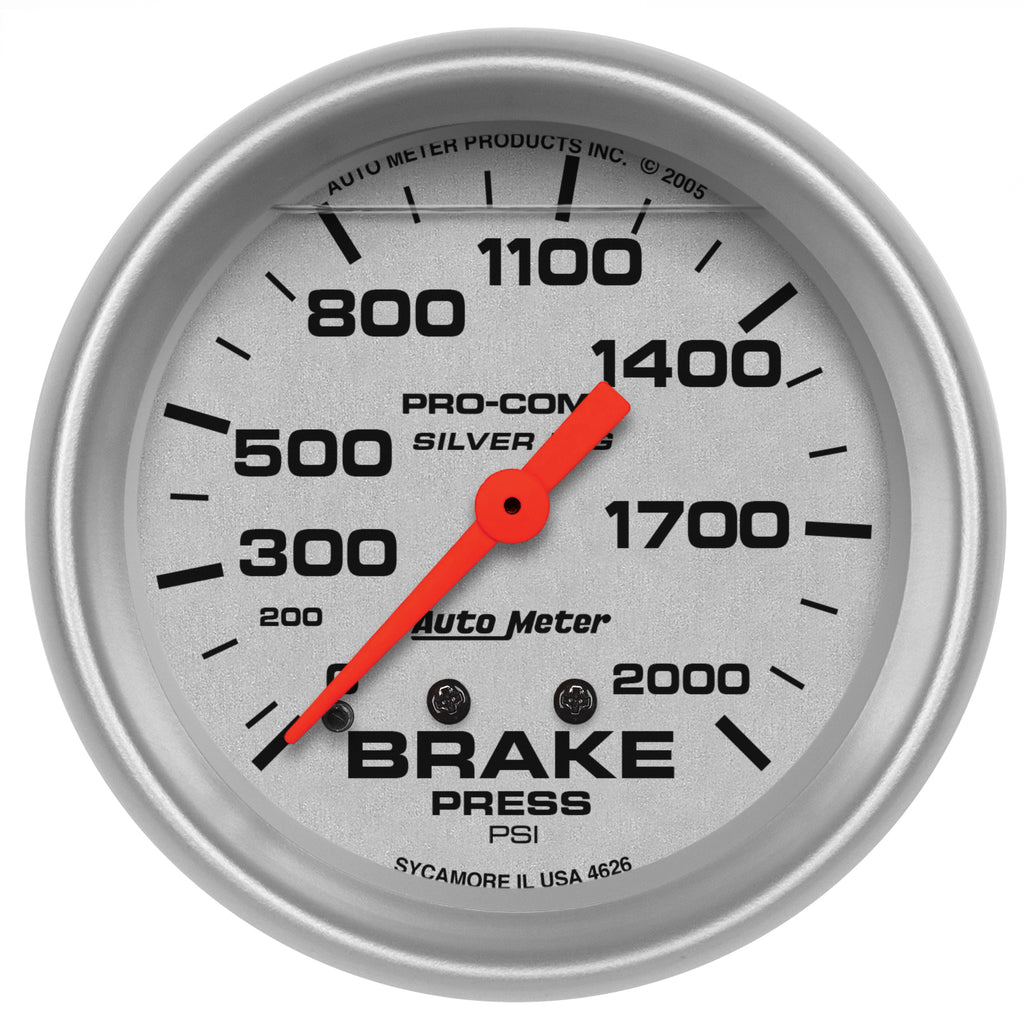

A bomb proof meter movement in the AutoMeter Mechanical Brake Pressure Gauge provides the robustness necessary to deal with ultra high pressures found in your brake system. These race proven gauges back up their toughness with the most precise bourdon tube meter movement available for unparalleled accuracy. A -4an connection on the rear of the gauge simplifies installation and no electrical connection is necessary for operation, making it ideal for hardcore track cars.
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
- Liquid filled design for superior resistance to shock, vibration, and the elements.
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074046261
- Bezel Color: Brushed Aluminum
- Bezel Style: Super Bezel
- Cross Sell: 3228, 3288, 3286, 3285, 3284, 5202
- Cup/Hole Size - Metric - MM: 66.7mm
- Cup/Hole Size - Standard - IN: 2-5/8"
- Dial Color: Silver
- Gauge Type: Brake Pressure
- Includes Bulb & Socket: 3211
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: 3245
- Lens Style: Flat, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Movement: Mechanical
- Outer Bezel Diameter: 2-7/8"
- Outer Bezel Diameter - Standard: 2-5/8"
- Pointer Color: Fluorescent Red
- Range: 0-2000 PSI
- Related Item: 2163, BEX-5000, EP-800, 0424XL, 0449XL, 0447LXL
- Series: ULTRA-LITE
- Size - Metric - MM: 66.7mm
- Size - Standard - IN: 2-5/8"
- Upsell: 3228, 3288, 3286, 3285, 3284, 5202
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.5 x 4.5 x 4.5 inches
- Weight: 0.8 POUNDS
