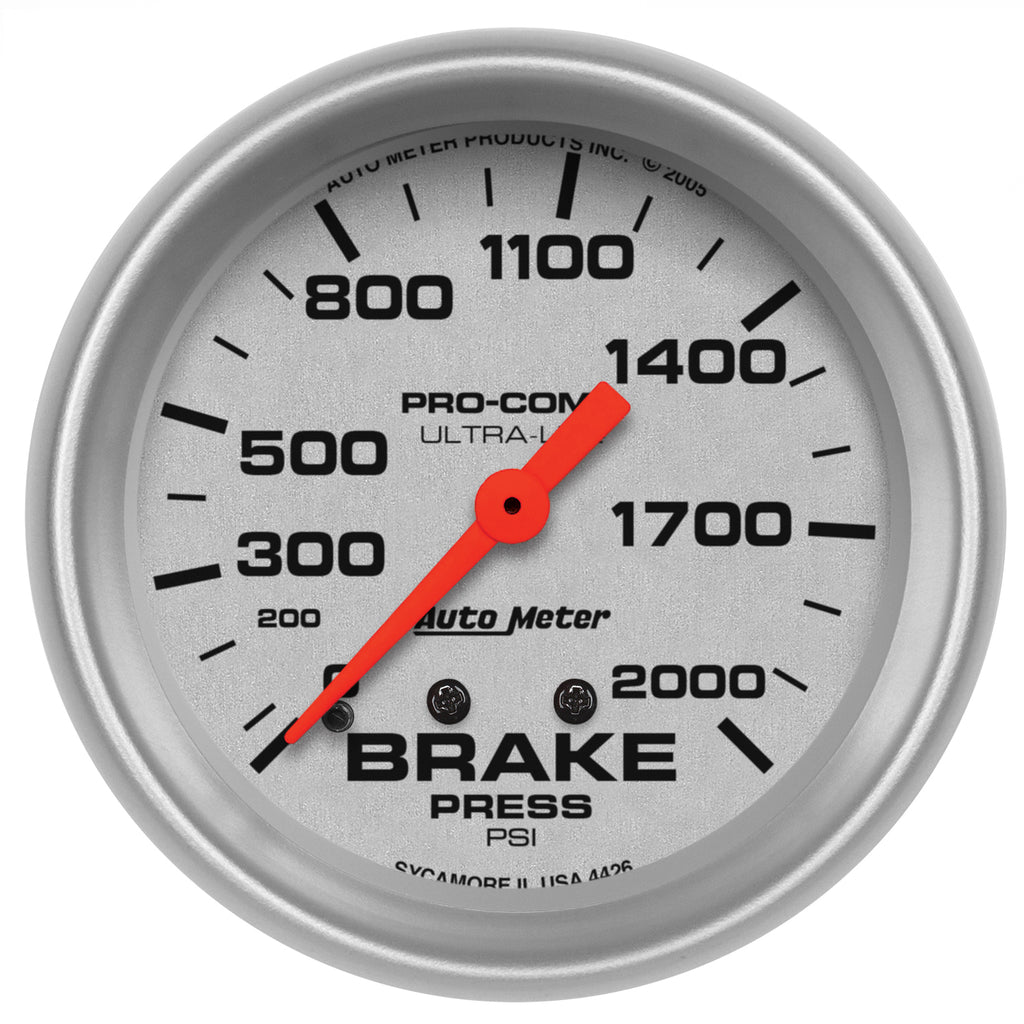

A bomb proof meter movement in the AutoMeter Mechanical Brake Pressure Gauge provides the robustness necessary to deal with ultra high pressures found in your brake system. These race proven gauges back up their toughness with the most precise bourdon tube meter movement available for unparalleled accuracy. A -4an connection on the rear of the gauge simplifies installation and no electrical connection is necessary for operation, making it ideal for hardcore track cars.
- Includes bulb and socket assembly with red and green bulb covers
- Tubing not included
- Includes 1/8" NPT T-Fitting and bleeder screw
- Includes compression fitting for 3/16" steel brake line
- May require extra T-Fitting and 3/16" steel brake line
- Gauge must be mounted outside vehicle
- Includes gauge mounting hardware and installation instructions
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074044267
- Bezel Color: Brushed Aluminum
- Bezel Style: Super Bezel
- Cross Sell: 3284, 3285, 3286, 3287, 3288, 3204
- Cup/Hole Size - Metric - MM: 66.7mm
- Cup/Hole Size - Standard - IN: 2-5/8"
- Dial Color: Silver
- Gauge Type: Brake Pressure
- Includes Bulb & Socket: 3220
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: 3245
- Lens Style: Flat, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Movement: Mechanical
- Outer Bezel Diameter: 2-7/8"
- Outer Bezel Diameter - Standard: 2-5/8"
- Pointer Color: Fluorescent Red
- Range: 0-2000 PSI
- Related Item: 2160, BEX-1500, EP-800, 0424XL, 0449XL, 0447LXL
- Series: ULTRA-LITE
- Size - Metric - MM: 66.7mm
- Size - Standard - IN: 2-5/8"
- Upsell: 3284, 3285, 3286, 3287, 3288, 3204
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.5 x 4.5 x 4.5 inches
- Weight: 0.79 POUNDS
