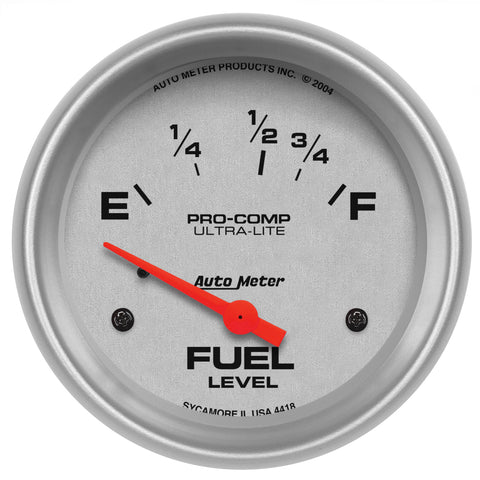

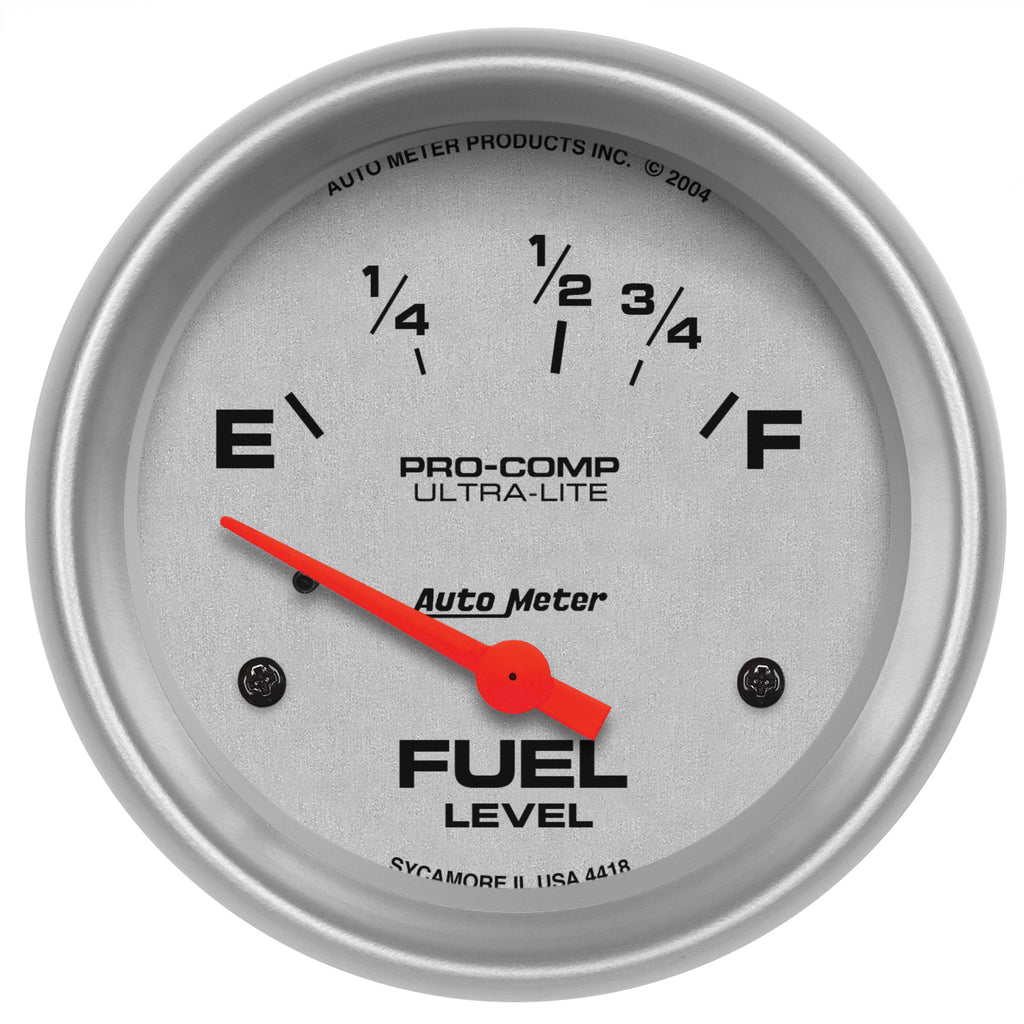

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Works with most 1989 (1987 Mustang) and later Ford
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074044182
- Bezel Color: Brushed Aluminum
- Bezel Style: Super Bezel
- Cross Sell: 3288, 3286, 3285, 3284, 3298, 3231
- Cup/Hole Size - Metric - MM: 66.7mm
- Cup/Hole Size - Standard - IN: 2-5/8"
- Dial Color: Silver
- Gauge Type: Fuel Level
- Includes Bulb & Socket: 3220
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: 3245
- Lens Style: Flat, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Movement: Electric, Air-Core
- Outer Bezel Diameter: 2-7/8"
- Outer Bezel Diameter - Standard: 2-5/8"
- Pointer Color: Fluorescent Red
- Range: 16 O Empty / 158 O Full
- Related Item: 2160, BEX-1500, EP-800, 0424XL, 0449XL, 0447LXL
- Series: ULTRA-LITE
- Size - Metric - MM: 66.7mm
- Size - Standard - IN: 2-5/8"
- Upsell: 3288, 3286, 3285, 3284, 3298, 3231
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.5 x 4.5 x 4.5 inches
- Weight: 0.6 POUNDS
