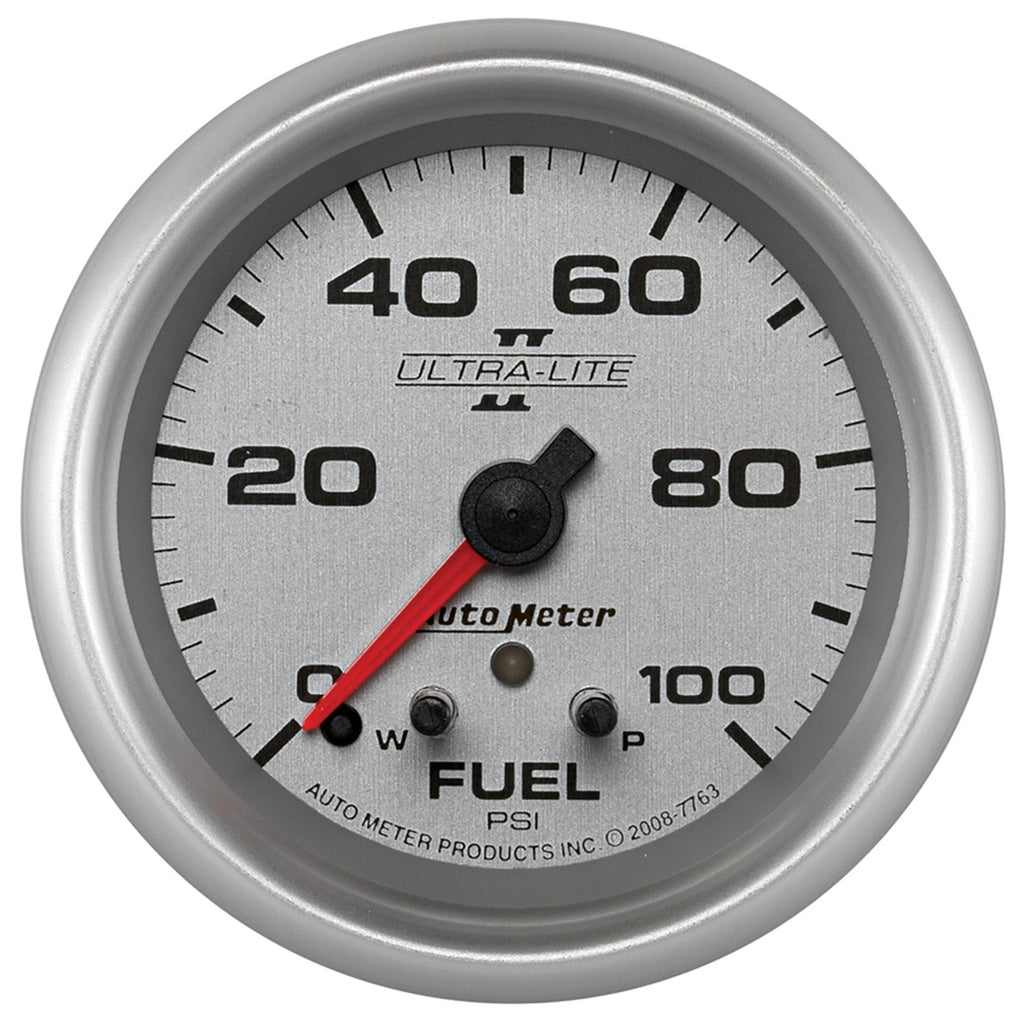

a precise fuel pressure gauge could be the cheapest insurance you’ve ever bought. A direct plug in wiring harness is included for ease of installation and data logging is available thanks to a .5 - 4.5v analog output.
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Gauge kit includes 1/8” NPT stainless steel pressure transducer, wiring harness, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Acquire data for later review with one-touch Peak Recall functionality
- Set a custom alert specific to your vehicle & receive warning notification to highlight the need for driver attention
- Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074077630
- Bezel Color: Brushed Aluminum
- Bezel Style: Super Bezel
- Cross Sell: 3280, 3275, 2276, 9114
- Cup/Hole Size - Metric - MM: 66.7mm
- Cup/Hole Size - Standard - IN: 2-5/8"
- Dial Color: Silver
- Gauge Type: Fuel Pressure
- Includes Mounting Hardware: 3245
- Includes Sensor Unit: 2246
- Includes Wire Harness: 5227
- Lens Style: Flat, Clear
- Lighting Color: White
- Lighting Type: LED
- Movement: Electric, Digital Stepper Motor
- Outer Bezel Diameter: 2-7/8"
- Outer Bezel Diameter - Standard: 2-5/8"
- Pointer Color: Fluorescent Red
- Range: 0-100 PSI
- Related Item: 2160, BEX-3000, EP-800, 0423XL
- Series: ULTRA-LITE II
- Size - Metric - MM: 66.7mm
- Size - Standard - IN: 2-5/8"
- Upsell: 3280, 3275, 2276, 9114
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 5.25 x 6.25 x 6 inches
- Weight: 1 POUNDS
