a precise fuel pressure gauge could be the cheapest insurance you’ve ever bought. For the safety of the operator, it is not recommended that Fuel Pressure gauge are installed inside the cabin of the vehicle. Optional fuel isolators are available for both carbureted and fuel injected applications.

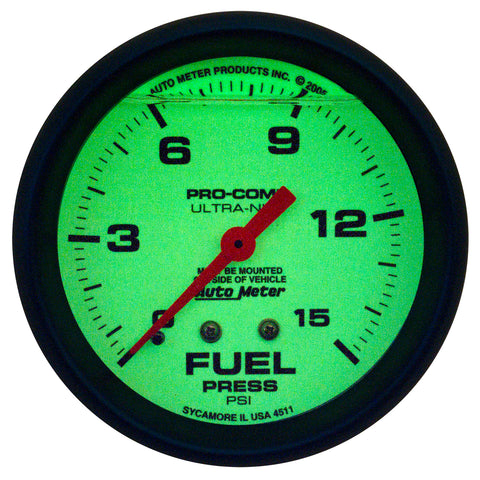

- Luminescent dials glow green at night for dimly lit tracks when no battery is available to light conventional instruments
- For racing use only - Not intended for street applications
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
- Liquid filled design for superior resistance to shock, vibration, and the elements.
- Gauge kit includes, mounting hardware, and detailed instructions for installation
- Gauge threaded for -4AN, allowing an easy installation into the fuel system
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074042119
- Bezel Color: Blue
- Bezel Style: Super Bezel
- Cross Sell: 3227, 3228, 3229
- Cup/Hole Size - Metric - MM: 66.7mm
- Cup/Hole Size - Standard - IN: 2-5/8"
- Dial Color: White
- Gauge Type: Fuel Pressure
- Includes Mounting Hardware: 3245
- Lens Style: Flat, Clear
- Lighting Type: Glow in the dark dial face
- Movement: Mechanical
- Outer Bezel Diameter: 2-7/8"
- Outer Bezel Diameter - Standard: 2-5/8"
- Pointer Color: Fluorescent Red
- Range: 0-15 PSI
- Related Item: BEX-5000, 2163, EP-800, 0424XL, 0447LXL
- Series: ULTRA-NITE
- Size - Metric - MM: 66.7mm
- Size - Standard - IN: 2-5/8"
- Upsell: 3227, 3228, 3229
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 5.125 x 5.5 x 5.5 inches
- Weight: 1 POUNDS
