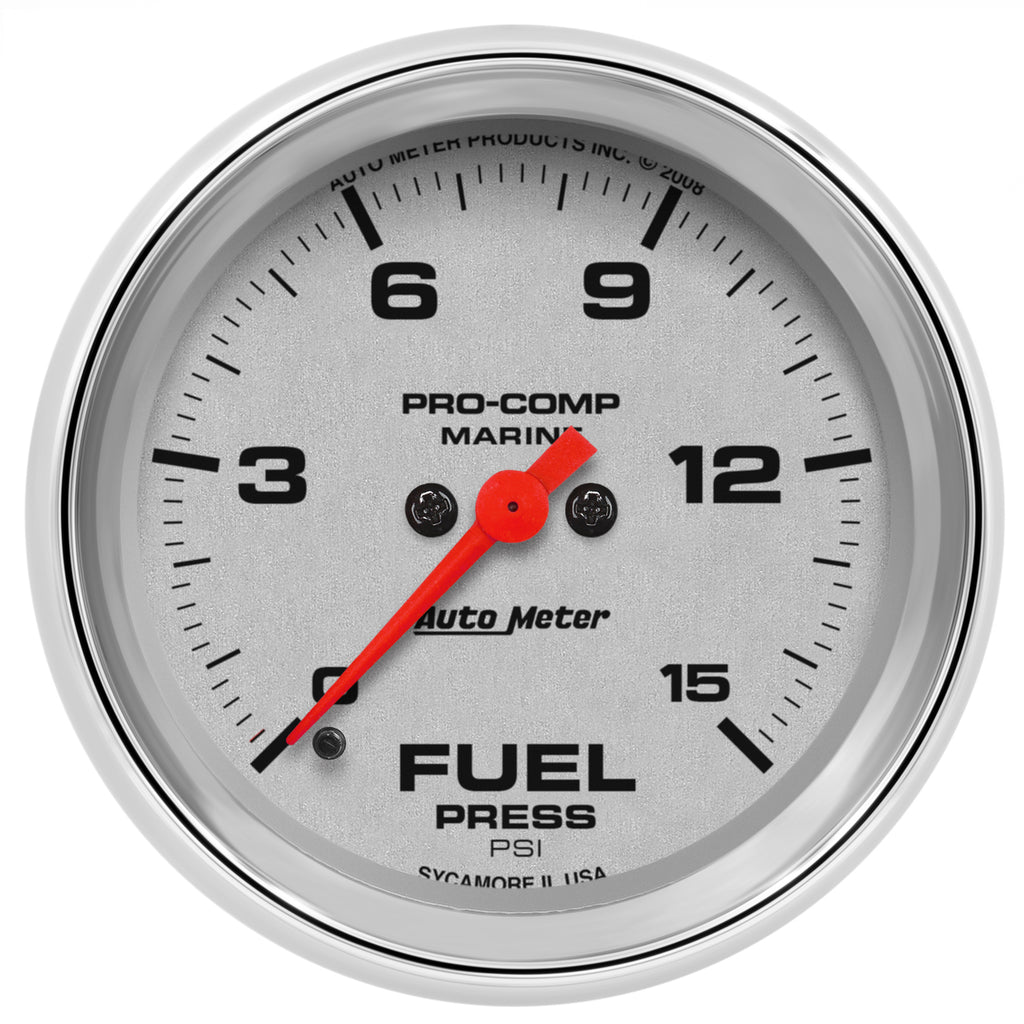

2-5/8" FUEL PRESSURE 0-15 PSI MARINE CHROME ULTRA-LITE
2-5/8" FUEL PRESSURE 0-15 PSI MARINE CHROME ULTRA-LITE
2-5/8" FUEL PRESSURE 0-15 PSI MARINE CHROME ULTRA-LITE
2-5/8" FUEL PRESSURE 0-15 PSI MARINE CHROME ULTRA-LITE

2-5/8" FUEL PRESSURE 0-15 PSI MARINE CHROME ULTRA-LITE

  • Sale
  • $323.34
a precise fuel pressure gauge could be the cheapest insurance you’ve ever bought. A direct plug in wiring harness is included for ease of installation and data logging is available thanks to a .5 - 4.5v analog output.
  • Highly polished chrome bezel
  • Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
  • Gauge kit includes 20 ft. wiring harness, bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
  • Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments while keeping hazardous fluids outside of the vehicle
  • The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
  • 12 month limited warranty
  • 12 and 16 volt compatible, well-suited with nearly every marine electrical system
  • Traditional incandescent lighting illuminates around the perimeter of the dial

Attributes:

  • Brand Name: AutoMeter
  • GTIN: 00046074142703
  • Bezel Color: Chrome
  • Bezel Style: Super Bezel
  • Cross Sell: 3288, 3284, 3285, 3286, 3287
  • Cup/Hole Size - Metric - MM: 66.7mm
  • Cup/Hole Size - Standard - IN: 2-5/8"
  • Dial Color: Silver
  • Gauge Type: Fuel Pressure
  • Includes Bulb & Socket: 3220
  • Includes Light Covers: Red 3214 & Green 3215
  • Includes Mounting Hardware: 2226
  • Includes Sensor Unit: 2245
  • Includes Wire Harness: 5223
  • Lens Style: Flat, Clear
  • Lighting Color: White Incandescent
  • Lighting Type: Incandescent
  • Movement: Electric, Digital Stepper Motor
  • Outer Bezel Diameter: 2-7/8"
  • Outer Bezel Diameter - Standard: 2-5/8"
  • Pointer Color: Fluorescent Red
  • Range: 0-15 PSI
  • Related Item: BEX-5000, EP-800, 0447LXL, 0423XL
  • Series: MARINE CHROME ULTRA-LITE
  • Size - Metric - MM: 66.7mm
  • Size - Standard - IN: 2-5/8"
  • Upsell: 3288, 3284, 3285, 3286, 3287

Extended Information:

  • Country of Origin: US
  • Emissions : CARB Eligible

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 5.5 x 5 x 5.25 inches
  • Weight: 1 POUNDS
