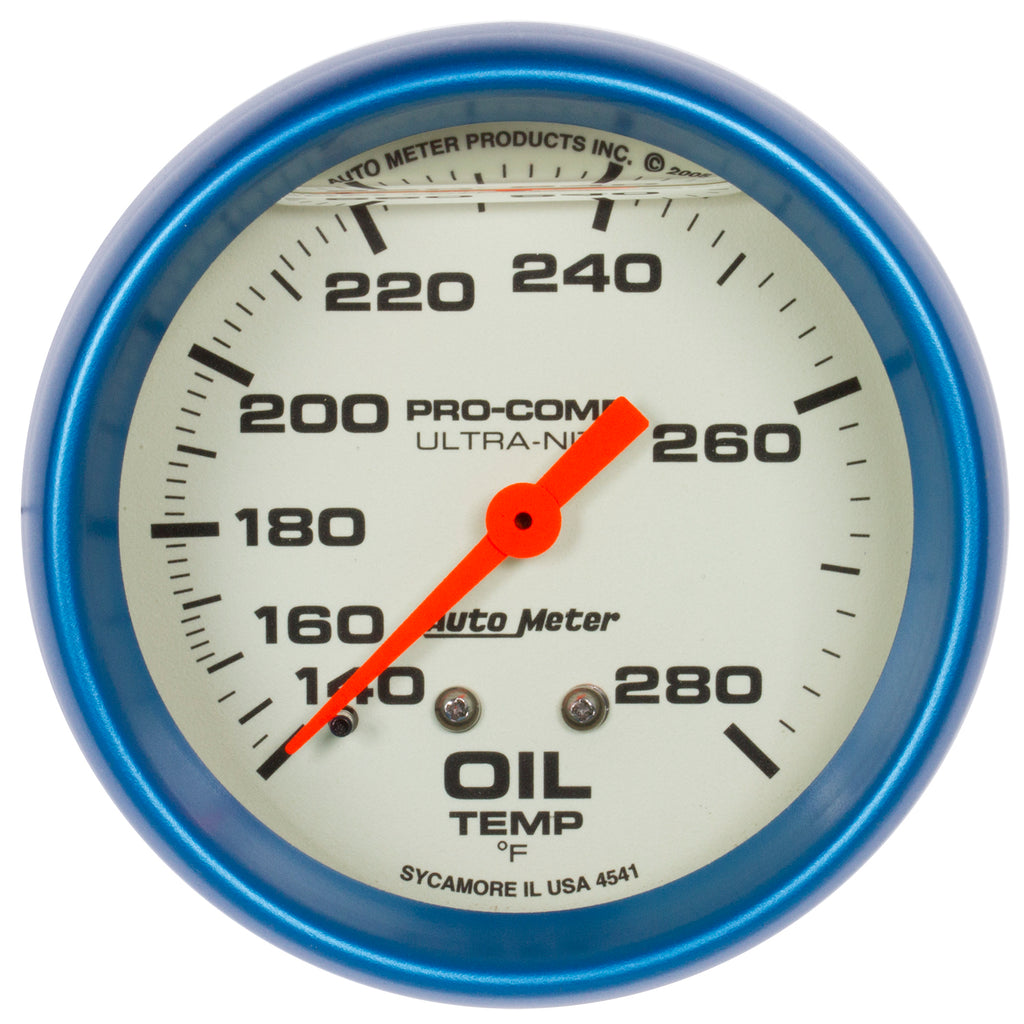

One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you’ve got the proper oil weight and cooling capacity. Utilizing AutoMeter’s ultra precise bourdon tube meter movement, you can be assured of the most accurate possible readings of the life blood of your engine. A 6’ capillary tube and 1/2” NPT mounting nut are included.

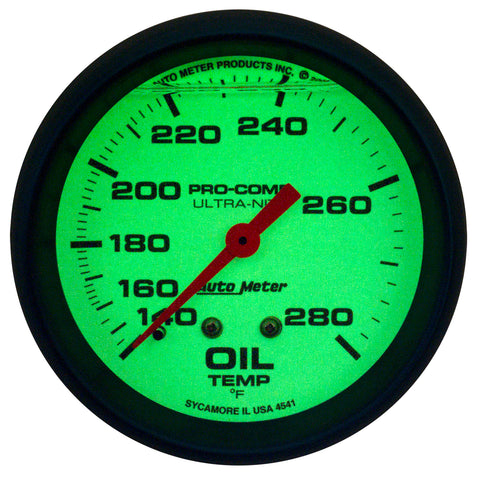

- Luminescent dials glow green at night for dimly lit tracks when no battery is available to light conventional instruments
- For racing use only - Not intended for street applications
- No electrical system required for gauge operation - compatible with every street or race vehicle
- AutoMeter’s race proven mechanical instruments provide trusted accuracy and durability in the harshest environments while being simple to install
- Gauge kit includes 1/2" NPT adapter, mounting hardware, and detailed instructions for installation
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074042416
- Bezel Color: Blue
- Bezel Style: Super Bezel
- Cross Sell: 3288, 3286, 3284, 2273, 2263, 2261
- Cup/Hole Size - Metric - MM: 66.7mm
- Cup/Hole Size - Standard - IN: 2-5/8"
- Dial Color: White
- Gauge Type: Oil Temperature
- Includes Adapter/Fitting: 1/2"" NPT adapter/fitting.
- Includes Mounting Hardware: 3245
- Includes Tubing: 6 ft. Capillary Tube
- Lens Style: Flat, Clear
- Lighting Type: Glow in the dark dial face
- Movement: Mechanical
- Outer Bezel Diameter: 2-7/8"
- Outer Bezel Diameter - Standard: 2-5/8"
- Pointer Color: Fluorescent Red
- Range: 140-280 °F
- Related Item: BEX-5000, 2163, EP-800, 0424XL, 0447LXL
- Series: ULTRA-NITE
- Size - Metric - MM: 66.7mm
- Size - Standard - IN: 2-5/8"
- Upsell: 3288, 3286, 3284, 2273, 2263, 2261
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 5.125 x 5.5 x 5.5 inches
- Weight: 1.3 POUNDS
