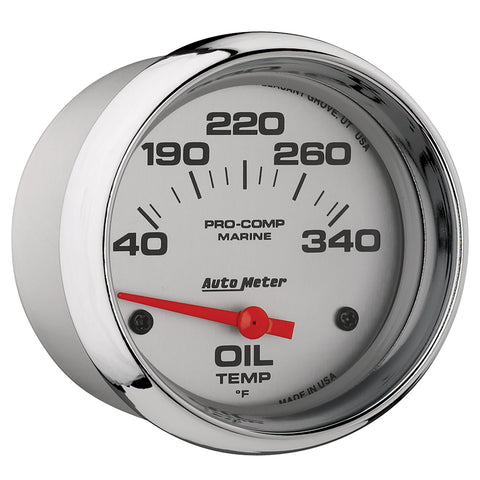

2-5/8" OIL TEMPERATURE 140-340 °F MARINE CHROME ULTRA-LITE
2-5/8" OIL TEMPERATURE 140-340 °F MARINE CHROME ULTRA-LITE
2-5/8" OIL TEMPERATURE 140-340 °F MARINE CHROME ULTRA-LITE
2-5/8" OIL TEMPERATURE 140-340 °F MARINE CHROME ULTRA-LITE

2-5/8" OIL TEMPERATURE 140-340 °F MARINE CHROME ULTRA-LITE

  • Sale
  • $87.69
An engine running a high oil temperature will fail, as proven time and time again. Monitoring this critical parameter ensures that you are running the correct weight oil and that your oil cooling system is performing properly. Highly accurate and durable thanks to AutoMeter’s patented air core meter movement, a single wire, 1/8” NPT temperature sender (990344) is available separately.
  • Highly polished chrome bezel
  • Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
  • Requires AutoMeter sending unit 990344
  • 12 and 16 volt compatible, well-suited with nearly every marine electrical system
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
  • 12 month limited warranty
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the boat
  • Traditional incandescent lighting illuminates around the perimeter of the dial

Attributes:

  • Brand Name: AutoMeter
  • GTIN: 00046074142598
  • Bezel Color: Chrome
  • Bezel Style: Super Bezel
  • Cross Sell: 990344, 2259, 3288, 3284, 3285
  • Cup/Hole Size - Metric - MM: 66.7mm
  • Cup/Hole Size - Standard - IN: 2-5/8"
  • Dial Color: Silver
  • Gauge Type: Oil Temperature
  • Includes Bulb & Socket: 3220
  • Includes Light Covers: Red 3214 & Green 3215
  • Includes Mounting Hardware: 2226
  • Lens Style: Flat, Clear
  • Lighting Color: White Incandescent
  • Lighting Type: Incandescent
  • Movement: Electric, Air Core
  • Outer Bezel Diameter: 2-7/8"
  • Outer Bezel Diameter - Standard: 2-5/8"
  • Pointer Color: Fluorescent Red
  • Range: 140-340 °F
  • Related Item: BEX-5000, EP-800, 0447LXL, 0423XL
  • Series: MARINE CHROME ULTRA-LITE
  • Size - Metric - MM: 66.7mm
  • Size - Standard - IN: 2-5/8"
  • Upsell: 990344, 2259, 3288, 3284, 3285

Extended Information:

  • Country of Origin: US
  • Emissions : CARB Eligible

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 5.5 x 5 x 5.25 inches
  • Weight: 0.64 POUNDS
