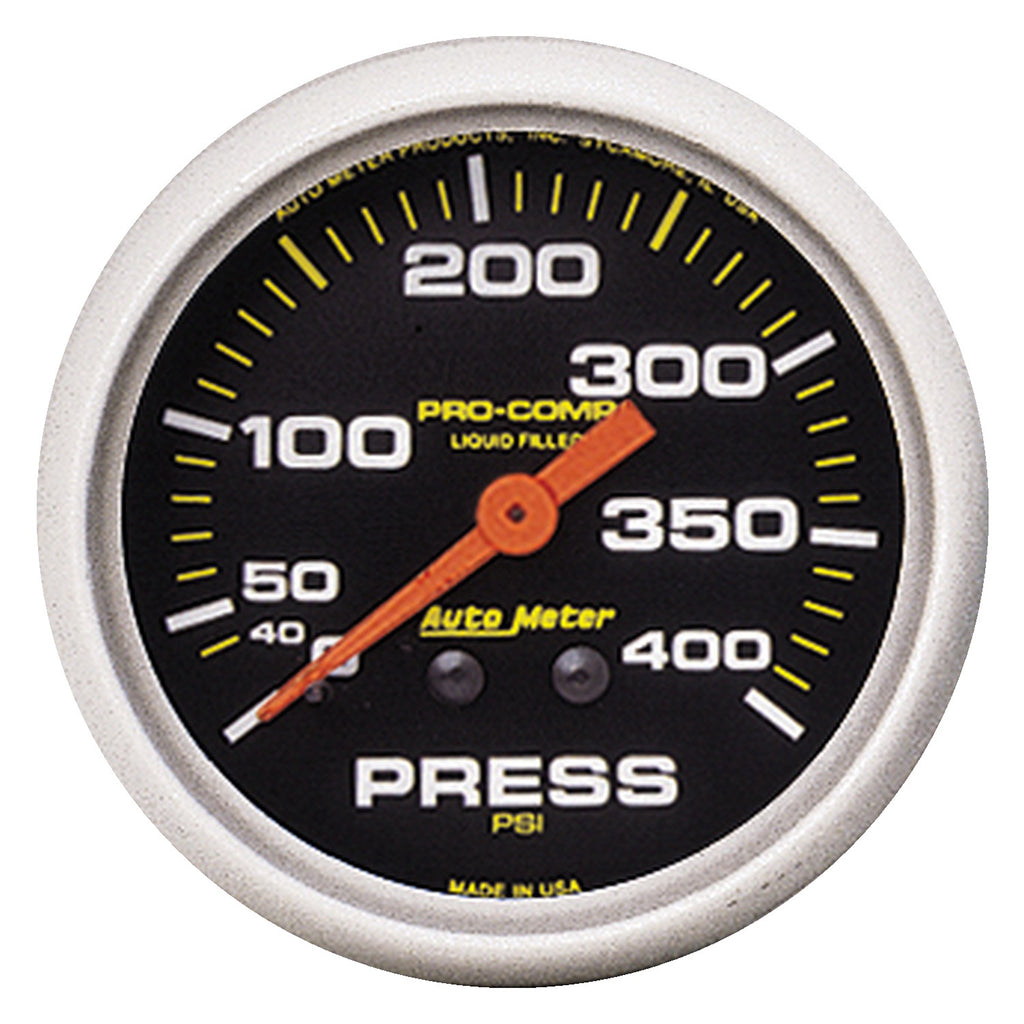

Whatever pressure source you need to measure, AutoMeter’s Mechanical Pressure Gauges will provide you a highly accurate, bullet proof reliable solution. The bourdon tube meter movement used in this gauge is engineered to function in even the harshest conditions and no electrical connection is needed for operation.
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
- Liquid filled design for superior resistance to shock, vibration, and the elements.
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074054242
- Bezel Color: Brushed Aluminum
- Bezel Style: Super Bezel
- Cross Sell: 3227, 3228, 3229
- Cup/Hole Size - Metric - MM: 66.7mm
- Cup/Hole Size - Standard - IN: 2-5/8"
- Dial Color: Black
- Gauge Type: Pressure
- Includes Bulb & Socket: 3211
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: 3245
- Lens Style: Flat, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Movement: Mechanical
- Outer Bezel Diameter: 2-7/8"
- Outer Bezel Diameter - Standard: 2-5/8"
- Pointer Color: Fluorescent Red
- Range: 0-400 PSI
- Related Item: 2163, BEX-5000, EP-800, 0424XL
- Series: PRO-COMP
- Size - Metric - MM: 66.7mm
- Size - Standard - IN: 2-5/8"
- Upsell: 3227, 3228, 3229
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.5 x 4.5 x 4.5 inches
- Weight: 1 POUNDS
