Whether tuning your vehicle for maximum performance or monitoring your driving for maximum fuel economy, AutoMeter’s Digital Stepper Motor Vacuum Gauge has been the solution trusted by professionals for years. An ultra precise digital stepper motor meter movement sits at the heart of this instrument, providing the kind of accuracy and durability necessary to compete at the highest levels.
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- Gauge kit includes 1/8” NPT stainless steel pressure transducer, wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074048715
- Bezel Color: Bright Anodized
- Bezel Style: Super Bezel
- Cross Sell: 3284, 3286, 3288, 4813, 4821, 4832
- Cup/Hole Size - Metric - MM: 66.7mm
- Cup/Hole Size - Standard - IN: 2-5/8"
- Dial Color: Carbon Fiber
- Gauge Type: Vacuum
- Includes Bulb & Socket: 3220
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: 3245
- Includes Sensor Unit: 2249
- Includes Tubing: 10 ft. nylon tubing

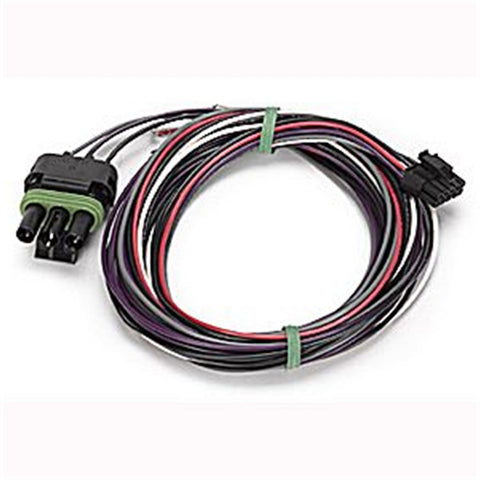

- Includes Wire Harness: 5229
- Lens Style: Flat, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Movement: Electric, Digital Stepper Motor
- Outer Bezel Diameter: 2-7/8"
- Outer Bezel Diameter - Standard: 2-5/8"
- Pointer Color: Silver
- Range: 0-30 IN HG
- Related Item: 2160, BEX-3000, EP-800, 0424XL
- Series: CARBON FIBER
- Size - Metric - MM: 66.7mm
- Size - Standard - IN: 2-5/8"
- Upsell: 3284, 3286, 3288, 4813, 4821, 4832
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 6.25 x 6 x 6.25 inches
- Weight: 1.25 POUNDS
