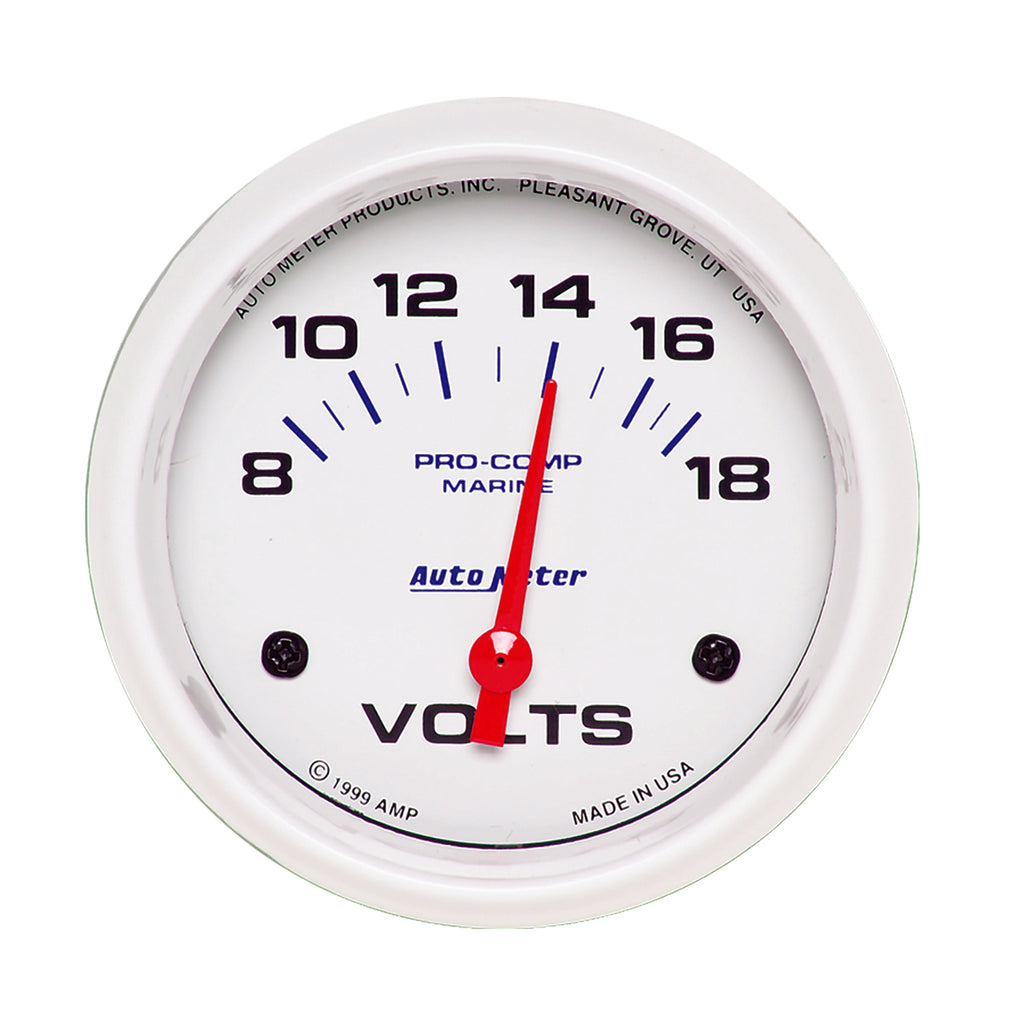

Keep tabs on the health and output of your boat's electrical system safely and accurately. With a patented air core meter movement, this gauge operates with category defining accuracy anywhere from 8-18 volts on negative ground electrical systems. Installation is simple and it can keep you from being stranded on the water.
- Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
- 12 and 16 volt compatible, well-suited with nearly every marine electrical system
- Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
- 12 month limited warranty
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the boat
- Traditional incandescent lighting illuminates around the perimeter of the dial
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074118203
- Bezel Color: White
- Bezel Style: Super Bezel
- Cross Sell: 3298, 3288, 3284, 3285, 3286
- Cup/Hole Size - Metric - MM: 66.7mm
- Cup/Hole Size - Standard - IN: 2-5/8"
- Dial Color: White
- Gauge Type: Voltmeter
- Includes Bulb & Socket: 3220
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: 2226
- Lens Style: Flat, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Movement: Electric, Air Core
- Outer Bezel Diameter: 2-7/8"
- Outer Bezel Diameter - Standard: 2-5/8"
- Pointer Color: Fluorescent Red
- Range: 8-18V
- Related Item: BEX-5000, 0447LXL, EP-800, 0423XL
- Series: MARINE WHITE
- Size - Metric - MM: 66.7mm
- Size - Standard - IN: 2-5/8"
- Upsell: 3298, 3288, 3284, 3285, 3286
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 5.5 x 5 x 5.25 inches
- Weight: 0.64 POUNDS
