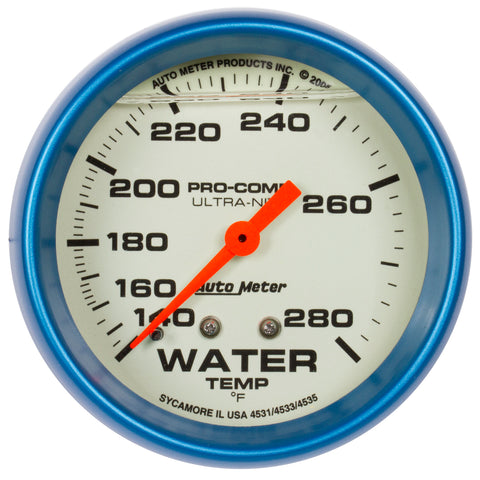

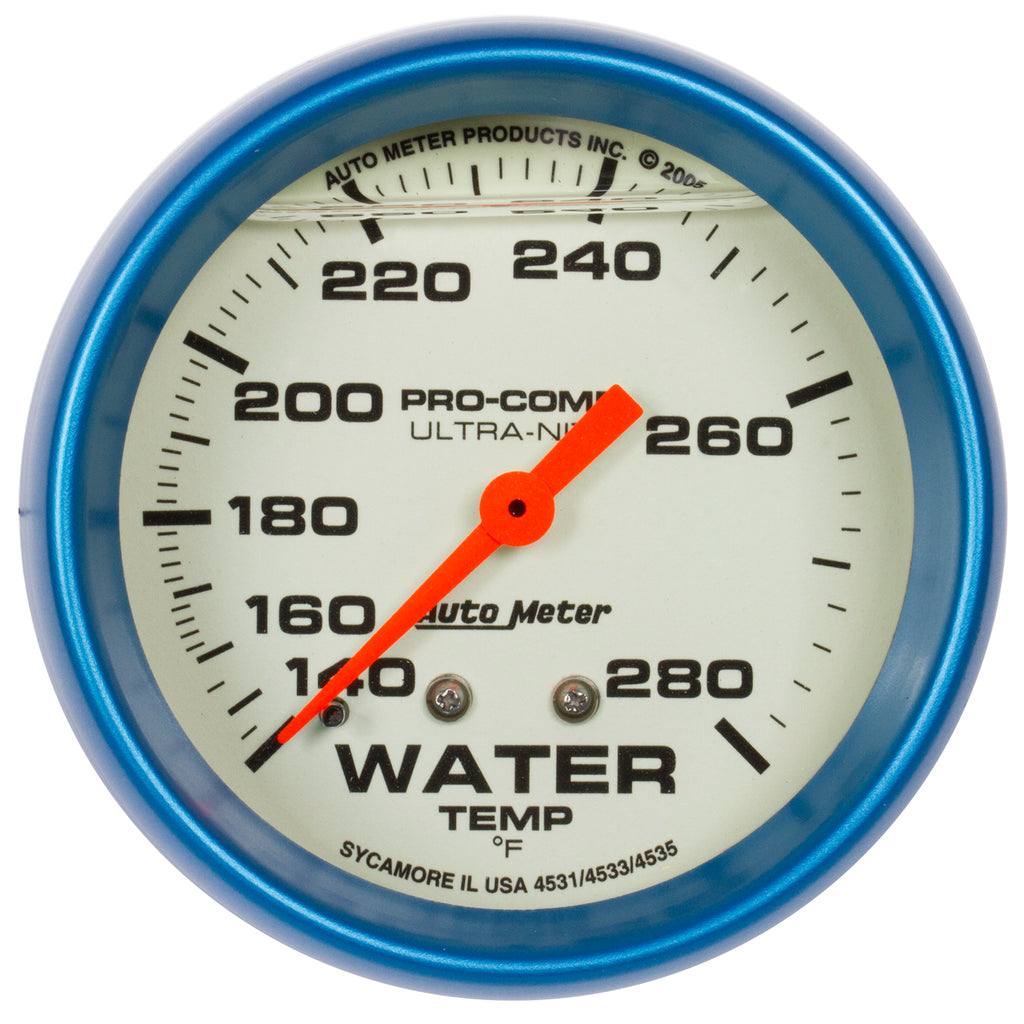

Engines don’t like high water temperatures, Heat is the enemy of performance and reliability. Keep tabs on your temps with the most accurate, quickest responding water temperature gauge on the market. AutoMeter’s advanced bourdon tube meter movement provides unparalleled performance in the most demanding applications. A 6’ capillary tube and 1/2” NPT mounting nut are included.

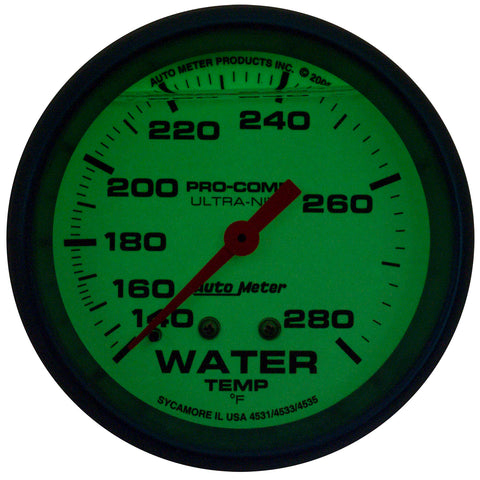

- Luminescent dials glow green at night for dimly lit tracks when no battery is available to light conventional instruments
- For racing use only - Not intended for street applications
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
- Liquid filled design for superior resistance to shock, vibration, and the elements.
- Gauge kit includes 1/2" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074042317
- Bezel Color: Blue
- Bezel Style: Super Bezel
- Cross Sell: 2283, 2282, 2275, 2272, 2273, 2263
- Cup/Hole Size - Metric - MM: 66.7mm
- Cup/Hole Size - Standard - IN: 2-5/8"
- Dial Color: White
- Gauge Type: Water Temperature
- Includes Adapter/Fitting: 1/2"" NPT adapter/fitting.
- Includes Mounting Hardware: 3245
- Includes Tubing: 6 ft. Capillary Tube
- Lens Style: Flat, Clear
- Lighting Type: Glow in the dark dial face
- Movement: Mechanical
- Outer Bezel Diameter: 2-7/8"
- Outer Bezel Diameter - Standard: 2-5/8"
- Pointer Color: Fluorescent Red
- Range: 140-280 °F
- Related Item: BEX-5000, 2163, EP-800, 0424XL, 0447LXL
- Series: ULTRA-NITE
- Size - Metric - MM: 66.7mm
- Size - Standard - IN: 2-5/8"
- Upsell: 2283, 2282, 2275, 2272, 2273, 2263
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 5.125 x 5.5 x 5.5 inches
- Weight: 1.3 POUNDS
