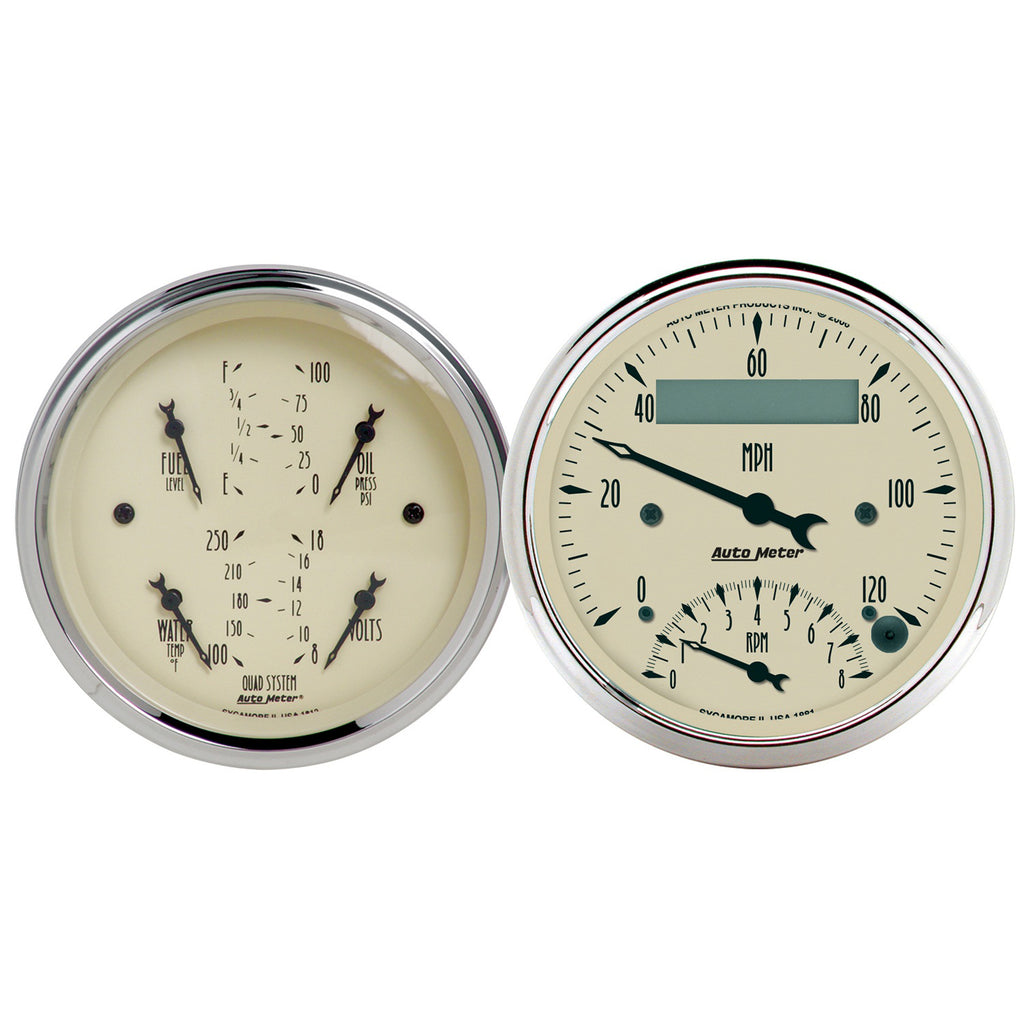

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).
- Highly polished chrome bezel
- Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD)
- Sending unit adapters (1/4", 3/8”, and 1/2" NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Tachometer is compatible with 0.5 - 6 pulse ignition signals (1-12 cylinder engines) with points, electronic, and most 12V high-performance racing ignitions.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074018206
- Bezel Color: Chrome
- Bezel Style: Street Rod
- Cross Sell: 9117, 5291, 5292, 5289, 5290, 2189
- Cup/Hole Size - Metric - MM: 85.7mm
- Cup/Hole Size - Standard - IN: 3-3/8"
- Dial Color: Beige
- Gauge Type: 2 Piece Kit
- Includes Adapter/Fitting: 3/8" NPT and 1/2" NPT adapter fittings
- Includes Bulb & Socket: 3211 & 3212
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: Brackets Included
- Includes Sensor Unit: Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - VSS Sensor
- Lens Style: Domed, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Movement: Electric, Air-Core
- Outer Bezel Diameter: 3-3/4"
- Outer Bezel Diameter - Standard: 3-3/8"
- Pointer Color: Black
- Range: 8K RPM/120 MPH/100 PSI/100-250 °F/8-18V/240OE-33OF
- Related Item: 2160, BEX-1500, EP-800, 0423XL
- Series: ANTIQUE BEIGE
- Size - Metric - MM: 85.7mm
- Size - Standard - IN: 3-3/8"
- Upsell: 9117, 5291, 5292, 5289, 5290, 2189
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 8.75 x 17.75 x 4.5 inches
- Weight: 4.85 POUNDS
