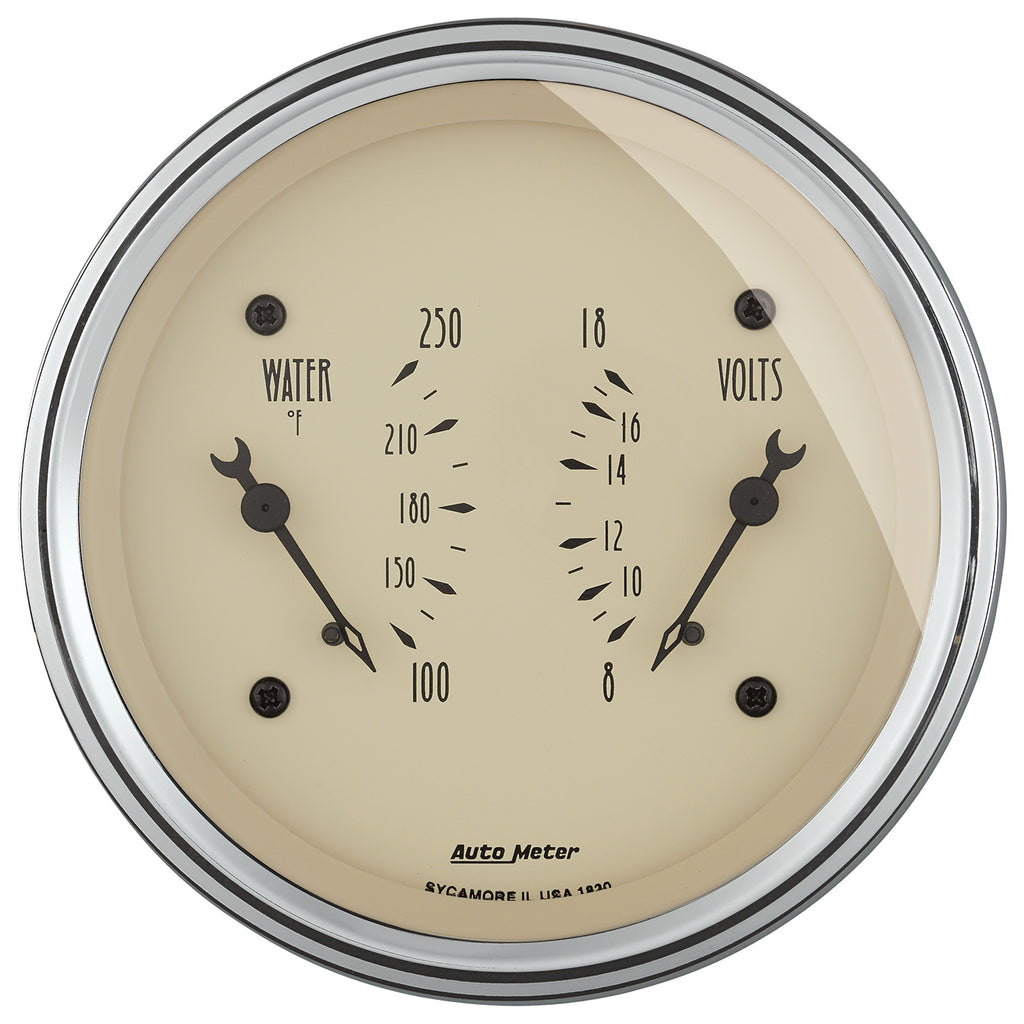

A perfect solution for unique dash layouts, AutoMeter’s Dual Function Water Temp and Voltmeter Gauge allows for a flexible dash layout and a clean look that’s easy on dash real estate. Combing individual air core meter movements into one compact housing, you get the same durability and accuracy you’ve come to expect from AutoMeter’s standalone instrumentation.The voltmeter reads between 8 and 18 volts on negative ground electrical systems, and an 1/8” NPT temperature sender is included.
- Highly polished chrome bezel
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle

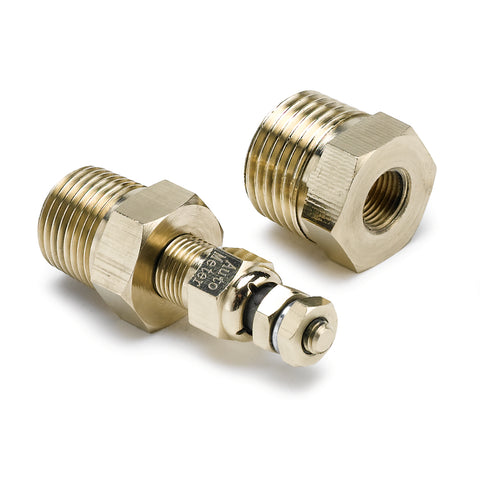

- Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074018305
- Bezel Color: Chrome
- Bezel Style: Street Rod
- Cross Sell: 3284, 3285, 3286, 3287, 3288, 1810
- Cup/Hole Size - Metric - MM: 85.7mm
- Cup/Hole Size - Standard - IN: 3-3/8"
- Dial Color: Beige
- Gauge Type: Dual Gauge
- Includes Adapter/Fitting: 3/8" NPT and 1/2" NPT adapter fittings
- Includes Bulb & Socket: 3211
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: Bracket Included
- Includes Sensor Unit: 2258
- Lens Style: Domed, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Movement: Electric, Air-Core
- Outer Bezel Diameter: 3-3/4"
- Outer Bezel Diameter - Standard: 3-3/8"
- Pointer Color: Black
- Range: 100-250 °F/8-18V
- Related Item: 2160, BEX-1500, EP-800, 0423XL
- Series: ANTIQUE BEIGE
- Size - Metric - MM: 85.7mm
- Size - Standard - IN: 3-3/8"
- Upsell: 3284, 3285, 3286, 3287, 3288, 1810
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 5.25 x 6.25 x 6 inches
- Weight: 1.15 POUNDS
